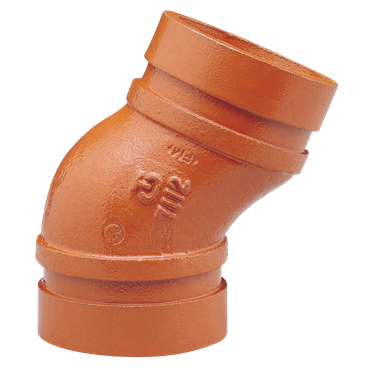

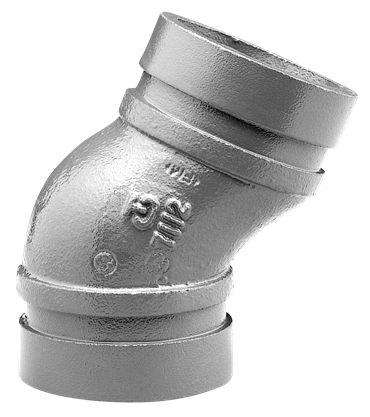

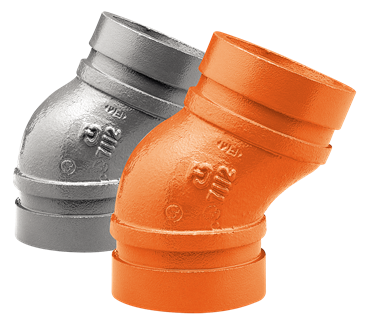

VSH Shurjoint 22.5° gooseneck elbow (2 x groove)

group: 7112G

The model 7112G elbows in combination with a coupling will serve as a universal joint and is ideal for instances where a pipe line is in need of a slight adjustment during make-up.
read more
read less

applications

heating

heating

cooling

cooling

compressed air

compressed air

sprinkler

sprinkler

dry fire main

dry fire main

segments

fire protection

fire protection

commercial building

commercial building

industry

industry

approvals

CRN

CRN

FM

FM

item number

size

d1

DN1

l1

z1

es1

d2

DN2

l2

z2

es2

angle

item number

171120052001

size

139.7 (DN125) orange

d1

139.7

DN1

DN125

l1

64

z1

64

es1

25

d2

139.7

DN2

DN125

l2

64

z2

64

es2

25

angle

22.5

item number

171120052003

size

139.7 (DN125) galvanized

d1

139.7

DN1

DN125

l1

64

z1

64

es1

25

d2

139.7

DN2

DN125

l2

64

z2

64

es2

25

angle

22.5

technical drawing for product

characteristics

color

silver, orange

materials

cast iron (ASTM A536 65-45-12)

finishing

galvanised, varnished

manufacturer

Shurjoint

shape

Elbow (22,5º)

connection type

groove (fitting)

general

product group

fittings (demountable)

ETIM class

EC003024 Fitting with 2 connections

HS code

73071910

brand

VSH

series

Shurjoint

product type

7112G

UNSPS

40172803

label

value

label

Material connection 1

value

Cast iron

label

Material connection 2

value

Cast iron

label

Shape

value

Bend

label

Bend angle

value

22.5°

label

Reducing

value

No

label

Eccentric

value

No

label

System specific

value

No

label

Nominal diameter connection 1

value

DN 125

label

Outer pipe diameter connection 1

value

139.7mm

label

Outer pipe diameter connection 1 (imperial)

value

5.5"

label

Connection 1

value

Groove

label

Nominal diameter connection 2

value

DN 125

label

Outer pipe diameter connection 2

value

139.7mm

label

Outer pipe diameter connection 2 (imperial)

value

5.5"

label

Connection 2

value

Groove

label

With buffer stud

value

No

label

High tensile strength

value

Yes

label

Length

value

127mm

label

Length of connection 1

value

63.5mm

label

Length of connection 1 (imperial)

value

2.5"

label

Working length connection 1

value

63.5mm

label

Working length connection 1 (imperial)

value

2.5"

label

Length of connection 2

value

63.5mm

label

Length of connection 2 (imperial)

value

2.5"

label

Working length connection 2

value

63.5mm

label

Working length connection 2 (imperial)

value

2.5"

label

With sealing rings/gaskets

value

No

label

Capped

value

No

label

With connection indicator

value

No

label

With drain valve

value

No

label

With de-aerator

value

No

label

FM quality mark

value

Yes

label

LPCB quality mark

value

No

label

ULC quality mark

value

No

label

UL quality mark

value

No

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

Certified according to NF 545

value

No

label

KIWA certified

value

No

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No
