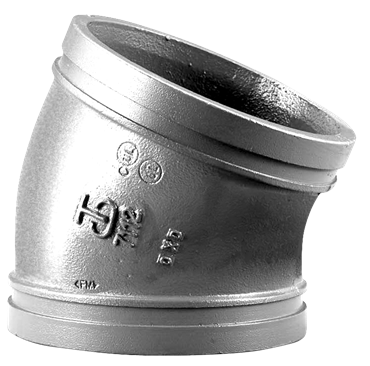

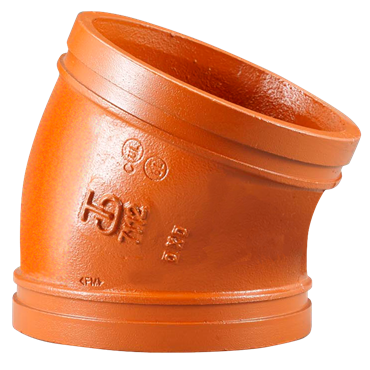

VSH Shurjoint 22.5° elbow (2 x groove)

group: 7112

Shurjoint grooved-end elbows are made of ductile iron per ASTM A536 Gr. 65-45-12. C-E dimensions are manufacturer’s standard.

Shurjoint standard fitting pressure ratings conform to the ratings of Model 7707 couplings.
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

heating

heating

cooling

cooling

compressed air

compressed air

sprinkler

sprinkler

dry fire main

dry fire main

segments

fire protection

fire protection

commercial building

commercial building

industry

industry

approvals

CRN

CRN

FM

FM

UL

UL

ULc

ULc

item number

size

dimensions

weight

packaging

gtin

item number

171120012001

size

42.4 (DN32) orange

dimensions

95x42x58 mm

weight

0.31 kg

packaging

carton (48 pce)

gtin

04710574619909

item number

171120012003

size

42.4 (DN32) galvanized

dimensions

95x42x58 mm

weight

0.31 kg

packaging

carton (48 pce)

gtin

04710574619916

item number

171120015004

size

48.3 (DN40) orange

dimensions

96x48x64 mm

weight

0.41 kg

packaging

carton (36 pce)

gtin

04710574619947

item number

171120015006

size

48.3 (DN40) galvanized

dimensions

96x48x64 mm

weight

0.41 kg

packaging

carton (36 pce)

gtin

04710574619954

item number

171120020004

size

60.3 (DN50) orange

dimensions

104x60x77 mm

weight

0.74 kg

packaging

carton (24 pce)

gtin

04710574619985

item number

171120020006

size

60.3 (DN50) galvanized

dimensions

104x60x77 mm

weight

0.74 kg

packaging

carton (24 pce)

gtin

04710574620004

item number

171120029004

size

76.1 (DN65) orange

dimensions

113x76x93 mm

weight

1.14 kg

packaging

carton (12 pce)

gtin

04710574620097

item number

171120029006

size

76.1 (DN65) galvanized

dimensions

113x76x93 mm

weight

1.14 kg

packaging

carton (12 pce)

gtin

04710574620110

item number

171120030004

size

88.9 (DN80) orange

dimensions

127x89x108 mm

weight

1.35 kg

packaging

carton (15 pce)

gtin

04710574620141

item number

171120030006

size

88.9 (DN80) galvanized

dimensions

127x89x108 mm

weight

1.35 kg

packaging

carton (15 pce)

gtin

04710574620165

item number

171120045004

size

114.3 (DN100) orange

dimensions

190x114x184 mm

weight

2.04 kg

packaging

carton (6 pce)

gtin

04710574620219

item number

171120045006

size

114.3 (DN100) galvanized

dimensions

190x114x184 mm

weight

2.04 kg

packaging

carton (6 pce)

gtin

04710574620233

item number

171120062004

size

165.1 (DN150) orange

dimensions

193x165x185 mm

weight

4.9 kg

packaging

carton (2 pce)

gtin

04710574620332

item number

171120062006

size

165.1 (DN150) galvanized

dimensions

193x165x185 mm

weight

4.9 kg

packaging

carton (2 pce)

gtin

04710574620356

item number

171120085004

size

219.1 (DN200) orange

dimensions

249x219x231 mm

weight

8.06 kg

packaging

carton (1 pce)

gtin

08711985443004

item number

171120085006

size

219.1 (DN200) galvanized

dimensions

249x219x231 mm

weight

8.06 kg

packaging

carton (1 pce)

gtin

08711985443011

item number

1711200a1001

size

273 (DN250) orange

dimensions

306x273x266 mm

weight

17.7 kg

packaging

carton (1 pce)

gtin

08711985445428

item number

1711200a1003

size

273 (DN250) galvanized

dimensions

306x273x266 mm

weight

17.7 kg

packaging

carton (1 pce)

gtin

08711985445435

item number

1711200a3001

size

323.9 (DN300) orange

dimensions

360x324x301 mm

weight

19.5 kg

packaging

carton (1 pce)

gtin

08711985445442

item number

1711200a3003

size

323.9 (DN300) galvanized

dimensions

360x324x301 mm

weight

19.5 kg

packaging

carton (1 pce)

gtin

08711985445459

item number

size

d1

DN1

l1

z1

es1

d2

DN2

l2

z2

es2

radius

angle

item number

171120012001

size

42.4 (DN32) orange

d1

42.2

DN1

DN32

l1

45

z1

45

es1

23

d2

42.2

DN2

DN32

l2

45

z2

45

es2

23

radius

30

angle

22.5

item number

171120012003

size

42.4 (DN32) galvanized

d1

42.2

DN1

DN32

l1

45

z1

45

es1

23

d2

42.2

DN2

DN32

l2

45

z2

45

es2

23

radius

30

angle

22.5

item number

171120015004

size

48.3 (DN40) orange

d1

48.3

DN1

DN40

l1

45

z1

45

es1

23

d2

48.3

DN2

DN40

l2

45

z2

45

es2

23

radius

45

angle

22.5

item number

171120015006

size

48.3 (DN40) galvanized

d1

48.3

DN1

DN40

l1

45

z1

45

es1

23

d2

48.3

DN2

DN40

l2

45

z2

45

es2

23

radius

45

angle

22.5

item number

171120020004

size

60.3 (DN50) orange

d1

60.3

DN1

DN50

l1

48

z1

48

es1

25

d2

60.3

DN2

DN50

l2

48

z2

48

es2

25

radius

50

angle

22.5

item number

171120020006

size

60.3 (DN50) galvanized

d1

60.3

DN1

DN50

l1

48

z1

48

es1

25

d2

60.3

DN2

DN50

l2

48

z2

48

es2

25

radius

50

angle

22.5

item number

171120029004

size

76.1 (DN65) orange

d1

76.1

DN1

DN65

l1

51

z1

51

es1

25

d2

76.1

DN2

DN65

l2

51

z2

51

es2

25

radius

65

angle

22.5

item number

171120029006

size

76.1 (DN65) galvanized

d1

76.1

DN1

DN65

l1

51

z1

51

es1

25

d2

76.1

DN2

DN65

l2

51

z2

51

es2

25

radius

65

angle

22.5

item number

171120030004

size

88.9 (DN80) orange

d1

88.9

DN1

DN80

l1

57

z1

57

es1

25

d2

88.9

DN2

DN80

l2

57

z2

57

es2

25

radius

84

angle

22.5

item number

171120030006

size

88.9 (DN80) galvanized

d1

88.9

DN1

DN80

l1

57

z1

57

es1

25

d2

88.9

DN2

DN80

l2

57

z2

57

es2

25

radius

84

angle

22.5

item number

171120045004

size

114.3 (DN100) orange

d1

114.3

DN1

DN100

l1

73

z1

73

es1

25

d2

114.3

DN2

DN100

l2

73

z2

73

es2

25

radius

95

angle

22.5

item number

171120045006

size

114.3 (DN100) galvanized

d1

114.3

DN1

DN100

l1

73

z1

73

es1

25

d2

114.3

DN2

DN100

l2

73

z2

73

es2

25

radius

95

angle

22.5

item number

171120062004

size

165.1 (DN150) orange

d1

165.1

DN1

DN150

l1

79

z1

79

es1

25

d2

165.1

DN2

DN150

l2

79

z2

79

es2

25

radius

125

angle

22.5

item number

171120062006

size

165.1 (DN150) galvanized

d1

165.1

DN1

DN150

l1

79

z1

79

es1

25

d2

165.1

DN2

DN150

l2

79

z2

79

es2

25

radius

125

angle

22.5

item number

171120085004

size

219.1 (DN200) orange

d1

219.1

DN1

DN200

l1

98

z1

98

es1

31

d2

219.1

DN2

DN200

l2

98

z2

98

es2

31

radius

150

angle

22.5

item number

171120085006

size

219.1 (DN200) galvanized

d1

219.1

DN1

DN200

l1

98

z1

98

es1

31

d2

219.1

DN2

DN200

l2

98

z2

98

es2

31

radius

150

angle

22.5

item number

1711200a1001

size

273 (DN250) orange

d1

273.0

DN1

DN250

l1

111

z1

111

es1

31

d2

273.0

DN2

DN250

l2

111

z2

111

es2

31

radius

136

angle

22.5

item number

1711200a1003

size

273 (DN250) galvanized

d1

273.0

DN1

DN250

l1

111

z1

111

es1

31

d2

273.0

DN2

DN250

l2

111

z2

111

es2

31

radius

136

angle

22.5

item number

1711200a3001

size

323.9 (DN300) orange

d1

323.9

DN1

DN300

l1

124

z1

124

es1

31

d2

323.9

DN2

DN300

l2

124

z2

124

es2

31

radius

189

angle

22.5

item number

1711200a3003

size

323.9 (DN300) galvanized

d1

323.9

DN1

DN300

l1

124

z1

124

es1

31

d2

323.9

DN2

DN300

l2

124

z2

124

es2

31

radius

189

angle

22.5

technical drawing for product

characteristics

color

silver, orange

materials

cast iron (ASTM A536 65-45-12)

finishing

hot dip galvanized, varnished

shape

Elbow (22,5º)

connection type

groove (fitting)

general

product group

fittings (demountable)

ETIM class

EC003024 Fitting with 2 connections

HS code

73071910

brand

VSH

series

Shurjoint

product type

7112

UNSPS

40172803

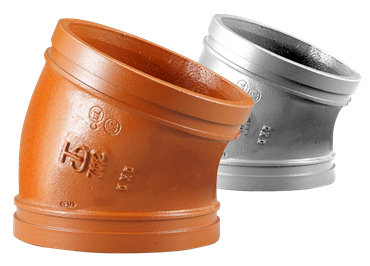

image for 7112-Combi

image | png

7112-Combi

image for Diagram

diagram | png

Diagram

submittal sheet | pdf

Datasheet

installation- & maintenance document | pdf

VSH Shurjoint Installation Handbook

installation- & maintenance document | pdf

VSH Shurjoint installation instructions

certifications | pdf

image for 7112

image | png

7112

image for 7112-6inch-GV

image | png

7112-6inch-GV

certifications | pdf

CRN - Pipe Fittings

certifications | pdf

FM

link to sheet | pdf

MSDS_Shurjoint_Orange_paint

certifications | pdf

UL

certifications | pdf

ULc

certifications | pdf

UL

certifications | pdf

UL

label

value

label

Material connection 1

value

Cast iron

label

Material quality connection 1

value

ASTM A536 Grade 65-45-12

label

Material connection 2

value

Cast iron

label

Material quality connection 2

value

ASTM A536 Grade 65-45-12

label

Shape

value

Bend

label

Bend angle

value

22.5°

label

Reducing

value

No

label

Eccentric

value

No

label

System specific

value

No

label

Connection 1

value

Groove

label

Connection 2

value

Groove

label

With buffer stud

value

No

label

High tensile strength

value

Yes

label

With sealing rings/gaskets

value

No

label

Capped

value

No

label

With connection indicator

value

No

label

With drain valve

value

No

label

With de-aerator

value

No

label

LPCB quality mark

value

No

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

Certified according to NF 545

value

No

label

KIWA certified

value

No

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No

item number

carbon footprint (A1-A3) cradle-to-gate

carbon footprint (A-C) embodied carbon

carbon footprint (A-D) cradle-to-cradle

data source

item number

171120012001

carbon footprint (A1-A3) cradle-to-gate

1.14kgCO2e

carbon footprint (A-C) embodied carbon

1.3kgCO2e

carbon footprint (A-D) cradle-to-cradle

0.84kgCO2e

data source

EPD

item number

171120015004

carbon footprint (A1-A3) cradle-to-gate

1.48kgCO2e

carbon footprint (A-C) embodied carbon

1.69kgCO2e

carbon footprint (A-D) cradle-to-cradle

1.09kgCO2e

data source

EPD

item number

171120020004

carbon footprint (A1-A3) cradle-to-gate

2.72kgCO2e

carbon footprint (A-C) embodied carbon

3.11kgCO2e

carbon footprint (A-D) cradle-to-cradle

2.01kgCO2e

data source

EPD

item number

171120029004

carbon footprint (A1-A3) cradle-to-gate

4.2kgCO2e

carbon footprint (A-C) embodied carbon

4.8kgCO2e

carbon footprint (A-D) cradle-to-cradle

3.1kgCO2e

data source

EPD

item number

171120030004

carbon footprint (A1-A3) cradle-to-gate

4.88kgCO2e

carbon footprint (A-C) embodied carbon

5.58kgCO2e

carbon footprint (A-D) cradle-to-cradle

3.61kgCO2e

data source

EPD

item number

171120045004

carbon footprint (A1-A3) cradle-to-gate

7.38kgCO2e

carbon footprint (A-C) embodied carbon

8.43kgCO2e

carbon footprint (A-D) cradle-to-cradle

5.45kgCO2e

data source

EPD

item number

171120062004

carbon footprint (A1-A3) cradle-to-gate

16.01kgCO2e

carbon footprint (A-C) embodied carbon

18.3kgCO2e

carbon footprint (A-D) cradle-to-cradle

11.82kgCO2e

data source

EPD

item number

171120085004

carbon footprint (A1-A3) cradle-to-gate

29.29kgCO2e

carbon footprint (A-C) embodied carbon

33.48kgCO2e

carbon footprint (A-D) cradle-to-cradle

21.63kgCO2e

data source

EPD

item number

1711200a1001

carbon footprint (A1-A3) cradle-to-gate

64.37kgCO2e

carbon footprint (A-C) embodied carbon

73.57kgCO2e

carbon footprint (A-D) cradle-to-cradle

47.54kgCO2e

data source

EPD

item number

1711200a3001

carbon footprint (A1-A3) cradle-to-gate

70.95kgCO2e

carbon footprint (A-C) embodied carbon

81.1kgCO2e

carbon footprint (A-D) cradle-to-cradle

52.41kgCO2e

data source

EPD

Got any questions?

we are here to help

product selected products selected

You can compare up to 2 products

You can compare up to 4 products

[saving downloads] requires an account

for is a account required

send by email

optional
optional
optional

NEW: myIPS including submittal package builder

streamline your projects effortlessly with our new submittal package builder! Compile, customize, and download our comprehensive product data sheets.

filter downloads

filters

by name or type

category

category
  • brochures (25)
  • technical manuals (11)
  • EPD (13)
  • embodied carbon calculations (10)

product line

product line
  • VSH XPress (28)
  • VSH SudoPress (16)
  • Pegler Valve (14)
  • VSH Tectite (11)

product type

product type
  • fittings (46)
  • valves (29)
  • pipes (12)
  • measurement and accessories (8)
