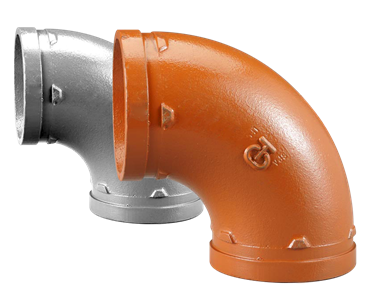

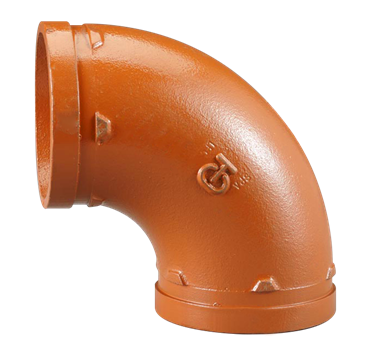

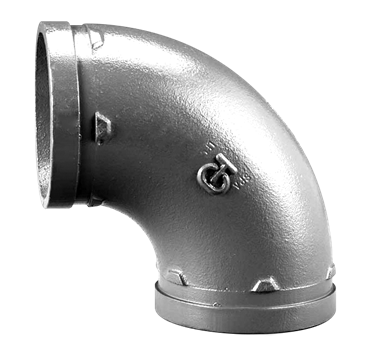

VSH Shurjoint 90° elbow (2 x groove)

group: 7110

Shurjoint grooved-end elbows are made of ductile iron per ASTM A536 Gr. 65-45-12. C-E dimensions are manufacturer’s standard.

Shurjoint standard fitting pressure ratings conform to the ratings of Model 7707 couplings.

read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

heating

heating

cooling

cooling

compressed air

compressed air

sprinkler

sprinkler

dry fire main

dry fire main

segments

fire protection

fire protection

commercial building

commercial building

industry

industry

approvals

CRN

CRN

FM

FM

LPCB

LPCB

TSU

TSU

UL

UL

ULc

ULc

VdS

VdS

item number

size

d1

DN1

l1

d2

DN2

l2

radius

angle

item number

171100010001

size

33.4 (DN25) orange

d1

33.4

DN1

DN25

l1

57

d2

33.4

DN2

DN25

l2

57

radius

33

angle

90

item number

171100010003

size

33.4 (DN25) galvanized

d1

33.4

DN1

DN25

l1

57

d2

33.4

DN2

DN25

l2

57

radius

33

angle

90

item number

171100012001

size

42.4 (DN32) orange

d1

42.2

DN1

DN32

l1

70

d2

42.2

DN2

DN32

l2

70

radius

46

angle

90

item number

171100012003

size

42.4 (DN32) galvanized

d1

42.2

DN1

DN32

l1

70

d2

42.2

DN2

DN32

l2

70

radius

46

angle

90

item number

171100015001

size

48.3 (DN40) orange

d1

48.3

DN1

DN40

l1

70

d2

48.3

DN2

DN40

l2

70

radius

46

angle

90

item number

171100015003

size

48.3 (DN40) galvanized

d1

48.3

DN1

DN40

l1

70

d2

48.3

DN2

DN40

l2

70

radius

46

angle

90

item number

171100020001

size

60.3 (DN50) orange

d1

60.3

DN1

DN50

l1

83

d2

60.3

DN2

DN50

l2

83

radius

59

angle

90

item number

171100020003

size

60.3 (DN50) galvanized

d1

60.3

DN1

DN50

l1

83

d2

60.3

DN2

DN50

l2

83

radius

59

angle

90

item number

171100029001

size

76.1 (DN65) orange

d1

76.1

DN1

DN65

l1

95

d2

76.1

DN2

DN65

l2

95

radius

71

angle

90

item number

171100029003

size

76.1 (DN65) galvanized

d1

76.1

DN1

DN65

l1

95

d2

76.1

DN2

DN65

l2

95

radius

71

angle

90

item number

171100030001

size

88.9 (DN80) orange

d1

88.9

DN1

DN80

l1

108

d2

88.9

DN2

DN80

l2

108

radius

84

angle

90

item number

171100030003

size

88.9 (DN80) galvanized

d1

88.9

DN1

DN80

l1

108

d2

88.9

DN2

DN80

l2

108

radius

84

angle

90

item number

171100045001

size

114.3 (DN100) orange

d1

114.3

DN1

DN100

l1

127

d2

114.3

DN2

DN100

l2

127

radius

102

angle

90

item number

171100045003

size

114.3 (DN100) galvanized

d1

114.3

DN1

DN100

l1

127

d2

114.3

DN2

DN100

l2

127

radius

102

angle

90

item number

171100052001

size

139.7 (DN125) orange

d1

139.7

DN1

DN125

l1

140

d2

139.7

DN2

DN125

l2

140

radius

115

angle

90

item number

171100052003

size

139.7 (DN125) galvanized

d1

139.7

DN1

DN125

l1

140

d2

139.7

DN2

DN125

l2

140

radius

115

angle

90

item number

171100062001

size

165.1 (DN150) orange

d1

165.1

DN1

DN150

l1

165

d2

165.1

DN2

DN150

l2

165

radius

140

angle

90

item number

171100062003

size

165.1 (DN150) galvanized

d1

165.1

DN1

DN150

l1

165

d2

165.1

DN2

DN150

l2

165

radius

140

angle

90

item number

171100085001

size

219.1 (DN200) orange

d1

219.1

DN1

DN200

l1

197

d2

219.1

DN2

DN200

l2

197

radius

168

angle

90

item number

171100085003

size

219.1 (DN200) galvanized

d1

219.1

DN1

DN200

l1

197

d2

219.1

DN2

DN200

l2

197

radius

168

angle

90

item number

1711000A1001

size

273 (DN250) orange

d1

273.0

DN1

DN250

l1

229

d2

273.0

DN2

DN250

l2

229

radius

198

angle

90

item number

1711000A1003

size

273 (DN250) galvanized

d1

273.0

DN1

DN250

l1

229

d2

273.0

DN2

DN250

l2

229

radius

198

angle

90

item number

1711000A3001

size

323.9 (DN300) orange

d1

324.0

DN1

DN300

l1

254

d2

324.0

DN2

DN300

l2

254

radius

220

angle

90

item number

1711000A3003

size

323.9 (DN300) galvanized

d1

323.9

DN1

DN300

l1

254

d2

323.9

DN2

DN300

l2

254

radius

220

angle

90

item number

1711000A4001

size

355.6 (DN350) orange

d1

355.6

DN1

DN350

l1

280

d2

355.6

DN2

DN350

l2

280

radius

243

angle

90

item number

1711000A6001

size

406.4 (DN400) orange

d1

406.4

DN1

DN400

l1

305

d2

406.4

DN2

DN400

l2

305

radius

268

angle

90

technical drawing for product

characteristics

color

silver, orange

materials

cast iron (ASTM A536 65-45-12)

finishing

galvanised, varnished

shape

Elbow (90º)

connection type

groove (fitting)

general

product group

fittings (demountable)

ETIM class

EC003024 Fitting with 2 connections

brand

VSH

series

Shurjoint

product type

7110

UNSPS

40172803

image for Diagram

diagram | png

Diagram

submittal sheet | pdf

Datasheet

installation- & maintenance document | pdf

VSH Shurjoint Installation Handbook

image for 7110-Combi

image | png

7110-Combi

installation- & maintenance document | pdf

VSH Shurjoint installation instructions

certifications | pdf

image for 7110-4inch

image | png

7110-4inch

image for 7110-4inch-GV

image | png

7110-4inch-GV

certifications | pdf

FM

certifications | pdf

LPCB

link to sheet | pdf

MSDS_Shurjoint_Orange_paint

certifications | pdf

TSU

certifications | pdf

UL

certifications | pdf

ULc

certifications | pdf

VdS

label

value

label

Material connection 1

value

Cast iron

label

Material connection 2

value

Cast iron

label

Shape

value

Bend

label

Model

value

1-part

label

Bend angle

value

90°

label

Reducing

value

No

label

Eccentric

value

No

label

System specific

value

No

label

Connection 1

value

Groove

label

Connection 2

value

Groove

label

With buffer stud

value

No

label

High tensile strength

value

Yes

label

With sealing rings/gaskets

value

No

label

Capped

value

No

label

With connection indicator

value

No

label

With drain valve

value

No

label

With de-aerator

value

No

label

FM quality mark

value

Yes

label

ULC quality mark

value

Yes

label

UL quality mark

value

Yes

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

Certified according to NF 545

value

No

label

KIWA certified

value

No

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No
