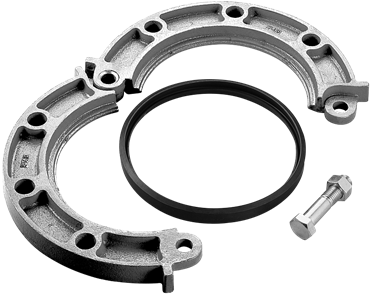

VSH Shurjoint DIN PN10/16 flange adapter (groove x flange), EPDM gasket

group: 7041

The VSH Shurjoint Model 7041DE flange adapter allows for a direct connection of a DIN PN10/16 flange. The specially designed gasket enables the transition from a grooved system to a flanged system or component with this single flange adapter. The two-segment design provides an easy and fast installation. All include an EPDM rubber gasket and plated track bolts and nuts.
  • 2” - 12” flange adapters are supplied hinged as a single assembly
  • 14” - 24” (Model 7041N) are supplied with two separate segments and a draw kit
  • small triangular teeth inside the key shoulder prevent the pipe from rotating
  • tighten nuts alternately in the sequence of diagonally opposite pairs
read more
read less

applications

heating

heating

cooling

cooling

compressed air

compressed air

sprinkler

sprinkler

dry fire main

dry fire main

segments

residential

residential

datacenters

datacenters

commercial building

commercial building

industry

industry

building installations

building installations

approvals

FM

FM

QB (CSTBat)

QB (CSTBat)

item number

size

d1

DN1

l1

d2

DN2

n2

k2

d2-2

D2

item number

1041B00A1010

size

273 (DN250) PN16 black

d1

273.0

DN1

DN250

l1

30

d2

273.0

DN2

DN250

n2

12

k2

355

d2-2

26

D2

405

item number

1041B00A3006

size

323.9 (DN300) PN16 galvanized

d1

323.9

DN1

DN300

l1

32

d2

323.9

DN2

DN300

n2

12

k2

410

d2-2

26

D2

460

technical drawing for product

characteristics

color

silver, black

materials

cast iron (ASTM A536 65-45-12)

finishing

galvanised, varnished

manufacturer

Shurjoint

shape

straight

connection type

groove (coupling), flange

pressure rating (PN)

PN 16

sealing

EPDM

general

product group

fittings (demountable)

ETIM class

EC003024 Fitting with 2 connections

HS code

73071910

brand

VSH

series

Shurjoint

product type

7041DE

UNSPS

40173404

label

value

label

Material connection 1

value

Cast iron

label

Material connection 2

value

Cast iron

label

Shape

value

Straight

label

Model

value

2-part

label

Reducing

value

No

label

Eccentric

value

No

label

System specific

value

No

label

Connection 1

value

Ribbing groove (groove coupling)

label

Connection 2

value

Flange

label

Flange compression class (PN)

value

PN 16

label

Material sealing

value

Ethylene-propylene diene monomer rubber (EPDM)

label

With buffer stud

value

No

label

High tensile strength

value

Yes

label

Medium temperature (continuous)

value

-34°C - 110°C

label

Medium temperature (continuous) (imperial)

value

-29.2°F - 230°F

label

Max. operating pressure at 20 °C

value

20bar

label

Max. operating pressure at 20 °C (imperial)

value

290.08psi

label

With sealing rings/gaskets

value

No

label

Capped

value

No

label

With connection indicator

value

No

label

With drain valve

value

No

label

With de-aerator

value

No

label

FM quality mark

value

Yes

label

LPCB quality mark

value

No

label

ULC quality mark

value

No

label

UL quality mark

value

No

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

Certified according to NF 545

value

No

label

KIWA certified

value

No

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No
