Pegler gate valve

if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

heating

heating

cooling

cooling

segments

commercial building

commercial building

industry

industry

approvals

no approvals available

item number

size

dimensions

weight

packaging

gtin

item number

507011

size

42

dimensions

70x110x170 mm

weight

1.62 kg

packaging

box (2 pce)

gtin

05013866006173

item number

507012

size

54

dimensions

105x195x235 mm

weight

2.61 kg

packaging

box (1 pce)

gtin

05013866006180

item number

size

d1

DN1

l1

z1

slw1

d2

DN2

l2

z2

slw2

M

H

Y

V

U

a

item number

507011

size

42

d1

42.0

DN1

DN40

l1

56

z1

37

slw1

57

d2

42.0

DN2

DN40

l2

56

z2

37

slw2

57

M

93

H

146

Y

23

V

109

U

64

a

90

item number

507012

size

54

d1

54.0

DN1

DN50

l1

67

z1

42

slw1

72

d2

54.0

DN2

DN50

l2

67

z2

42

slw2

72

M

105

H

174

Y

29

V

130

U

80

a

90

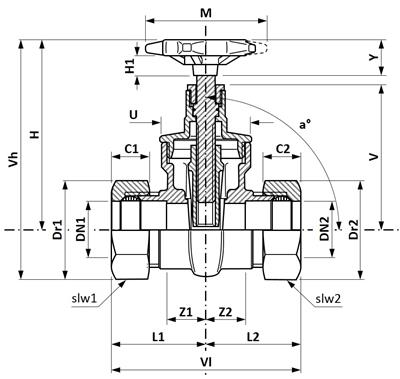

technical drawing for product

characteristics

color

bronze

materials

bronze (EN CC499K)

finishing

none

shape

straight (90º)

connection type

compression

pressure rating (PN)

PN 16

sealing

PTFE

general

product group

valves (gate valves)

ETIM class

EC010163 Gate valve

HS code

84818069

brand

Pegler

series

Gate Valve

product type

63GM

UNSPS

40141613

technical

max operating pressure liquid

16 bar

min. medium temperature

30 °C

max medium temperature

120 °C

peak medium temperature

120 °C

Kvs-value

value depends on the item view items

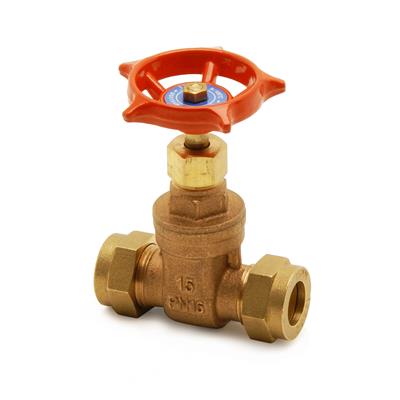

image for 63GM

image | jpg

63GM

image for Diagram

diagram | jpg

Diagram

Other document | pdf

Pegler Valve Installation Instructions

label

value

label

ETIM class

label

Housing material

value

Bronze

label

Connection 1

value

Compression ring

label

With coupling connection 1

value

No

label

Connection 2

value

Compression ring

label

With coupling connection 2

value

No

label

Article compression class

value

PN 16

label

Flange compression class

value

PN 16

label

FM quality mark

value

No

label

UL quality mark

value

No

label

ULC quality mark

value

No

label

LPCB quality mark

value

No

label

Medium temperature (continuous)

value

30°C - 120°C

label

Medium temperature (continuous) (imperial)

value

86°F - 248°F

label

Surface protection

value

Untreated

label

With position indicator

value

No

label

Spindle and/or hand wheel rising

value

No

label

With waste fitting

value

No

label

VdS quality mark

value

No

label

KIWA certified

value

No

label

Gastec QA mark

value

No

label

Gastec QA - AR 214 (H2)

value

No

item number

carbon footprint (A-C) embodied carbon

data source

item number

507011

carbon footprint (A-C) embodied carbon

11.33kgCO2e

data source

TM65

item number

507012

carbon footprint (A-C) embodied carbon

19.86kgCO2e

data source

TM65
