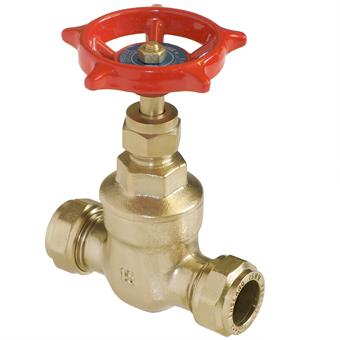

Pegler Gate Valve

group: 63

read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

heating

heating

cooling

cooling

segments

commercial building

commercial building

industry

industry

approvals

no approvals available

item number

size

d1

DN1

l1

z1

slw1

d2

DN2

l2

z2

slw2

M

H

Y

V

U

a

item number

506007

size

15

d1

15.0

DN1

DN15

l1

35

z1

21

slw1

24

d2

15.0

DN2

DN15

l2

35

z2

21

slw2

24

M

57

H

83

Y

13

V

62

U

31

a

90

item number

506008

size

22

d1

22.0

DN1

DN20

l1

39

z1

22

slw1

31

d2

22.0

DN2

DN20

l2

39

z2

22

slw2

31

M

57

H

93

Y

11

V

74

U

39

a

90

item number

506009

size

28

d1

28.0

DN1

DN25

l1

46

z1

27

slw1

40

d2

28.0

DN2

DN25

l2

46

z2

27

slw2

40

M

67

H

111

Y

18

V

85

U

47

a

90

item number

506010

size

35

d1

35.0

DN1

DN32

l1

54

z1

34

slw1

49

d2

35.0

DN2

DN32

l2

54

z2

34

slw2

49

M

73

H

124

Y

23

V

93

U

56

a

90

item number

size

Y

V

U

a

15

13

62

31

90

22

11

74

39

90

28

18

85

47

90

35

23

93

56

90

technical drawing for product

characteristics

color

brass

materials

brass (CW617N)

finishing

none

manufacturer

Aalberts integrated piping systems Ltd (Pegler)

shape

straight (0º)

connection type

compression

pressure rating (PN)

PN 16

sealing

PTFE

general

product group

valves (gate valves)

ETIM class

EC010163 Gate valve

HS code

84818069

brand

VSH

series

Prestex Gate Valve

product type

63

UNSPS

40141613

label

value

label

ETIM class

label

Housing material

value

Brass

label

Material quality

value

CuZn40Pb2 (CW617N)

label

Connection 1

value

Compression ring

label

With coupling connection 1

value

No

label

Connection 2

value

Compression ring

label

With coupling connection 2

value

No

label

Article compression class

value

PN 16

label

Flange compression class

value

PN 16

label

FM quality mark

value

No

label

UL quality mark

value

No

label

ULC quality mark

value

No

label

LPCB quality mark

value

No

label

Medium temperature (continuous)

value

30°C - 120°C

label

Medium temperature (continuous) (imperial)

value

86°F - 248°F

label

Surface protection

value

Untreated

label

Operation

value

Hand wheel

label

With position indicator

value

No

label

Spindle and/or hand wheel rising

value

No

label

With waste fitting

value

No

label

VdS quality mark

value

No

label

KIWA certified

value

No

label

Gastec QA mark

value

No

label

Gastec QA - AR 214 (H2)

value

No
