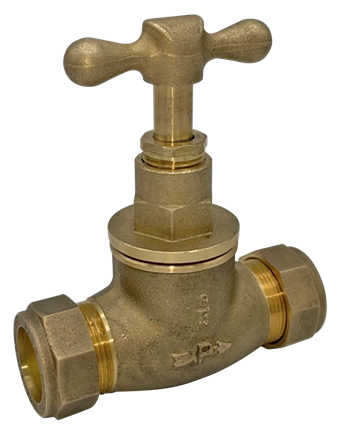

Pegler Prestex Stop Valve

group: 59‎‎SV

The Prestex 59 is a stop valve with a crutch top and 2 copper compression ends. By using Prestex in your piping system you can install in easy to use heat free system. Prestex provides a piping suitable for domestic and light commercial applications.
  • No need for use of naked flames
  • Can be used on wet pipework
  • Joints can be dismounted without adversely affecting performance
  • Provided with all relevant approvals
  • read more
    read less
    if the download did not start automatically, click here

    PDF generation failed, please try again later

    applications

    potable water

    potable water

    segments

    commercial building

    commercial building

    approvals

    WRAS

    WRAS

    item number

    size

    dimensions

    weight

    packaging

    gtin

    item number

    501008

    size

    22

    dimensions

    110x40x95 mm

    weight

    0.58 kg

    packaging

    box (5 pce)

    gtin

    05013866005749

    item number

    501009

    size

    28

    dimensions

    150x65x120 mm

    weight

    1.16 kg

    packaging

    box (4 pce)

    gtin

    05013866005756

    item number

    size

    d1

    DN1

    l1

    z1

    slw1

    d2

    DN2

    l2

    z2

    slw2

    M1

    M2

    Y

    V

    U

    item number

    501008

    size

    22

    d1

    22.0

    DN1

    DN20

    l1

    47

    z1

    24

    slw1

    32

    d2

    22.0

    DN2

    DN20

    l2

    47

    z2

    24

    slw2

    22

    M1

    31

    M2

    31

    Y

    15

    V

    27

    U

    37

    item number

    501009

    size

    28

    d1

    28.0

    DN1

    DN25

    l1

    58

    z1

    35

    slw1

    41

    d2

    28.0

    DN2

    DN25

    l2

    58

    z2

    35

    slw2

    27

    M1

    34

    M2

    34

    Y

    18

    V

    86

    U

    48

    technical drawing for product

    characteristics

    color

    brass

    materials

    brass (CC757S)

    finishing

    none

    shape

    straight (0º)

    connection type

    compression

    pressure rating (PN)

    PN 16

    sealing

    EPDM, NBR (Nitrile)

    general

    product group

    valves

    HS code

    84818099

    brand

    Pegler

    series

    Stop Valve

    product type

    59‎

    UNSPS

    40141613

    technical

    max operating pressure liquid

    16 bar

    min. medium temperature

    30 °C

    max medium temperature

    120 °C

    peak medium temperature

    120 °C

    image for 59

    image | jpg

    59

    image for Diagram

    diagram | jpg

    Diagram

    image for 59

    image | png

    59

    certifications | pdf

    Pegler Stop valves BSI Kitemark

    certifications | pdf

    WRAS_Range of in-line screw-down stop valves

    item number

    carbon footprint (A-C) embodied carbon

    data source

    item number

    501008

    carbon footprint (A-C) embodied carbon

    2.51kgCO2e

    data source

    TM65

    item number

    501009

    carbon footprint (A-C) embodied carbon

    4.89kgCO2e

    data source

    TM65
