VSH Shurjoint grooved adapter (groove x female thread)

group: 54

The VSH Shurjoint Model 54 is a cast adapter that allows for a direct transition from grooved system to a female threaded system.
VSH Shurjoint grooved pipe systems consist of a wide range of groove couplings, fittings and valves for heating, compressed air and industry. VSH Shurjoint is less labor intensive, safer, cleaner and delivers consistent connection quality.
  • VSH Shurjoint can be perfectly combined with other VSH systems such as VSH XPress, VSH SudoPress and VSH PowerPress
  • the 'Aalberts integrated piping systems' range covers a fully integrated system from ¼" to 104"
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

heating

heating

cooling

cooling

compressed air

compressed air

segments

commercial building

commercial building

industry

industry

approvals

no approvals available

item number

size

dimensions

weight

packaging

gtin

item number

100541515006

size

48.3 xRp1 1/2 orange

dimensions

49x49x60 mm

weight

0.31 kg

packaging

carton (36 pce)

gtin

04710574600037

item number

100541515007

size

48.3 xRp1 1/2 galvanized

dimensions

49x49x60 mm

weight

0.31 kg

packaging

-

gtin

04710574600044

item number

100542020006

size

60.3 xRp2 orange

dimensions

61x61x64 mm

weight

0.42 kg

packaging

-

gtin

04710574600099

item number

100542020007

size

60.3 xRp2 galvanized

dimensions

61x61x64 mm

weight

0.42 kg

packaging

-

gtin

-

item number

100542925007

size

76.1xRp2 1/2 galvanized

dimensions

77x77x70 mm

weight

0.83 kg

packaging

-

gtin

-

item number

size

d1

DN1

l1

d2

DN2

l2

z2

item number

100541515006

size

48.3 xRp1 1/2 orange

d1

48.3

DN1

DN40

l1

30

d2

48.3

DN2

DN40

l2

30

z2

12

item number

100541515007

size

48.3 xRp1 1/2 galvanized

d1

48.3

DN1

DN40

l1

30

d2

48.3

DN2

DN40

l2

30

z2

12

item number

100542020006

size

60.3 xRp2 orange

d1

60.3

DN1

DN50

l1

32

d2

60.3

DN2

DN50

l2

32

z2

13

item number

100542020007

size

60.3 xRp2 galvanized

d1

60.3

DN1

DN50

l1

32

d2

60.3

DN2

DN50

l2

32

z2

13

item number

100542925007

size

76.1xRp2 1/2 galvanized

d1

76.1

DN1

DN65

l1

35

d2

76.1

DN2

DN65

l2

35

z2

12

technical drawing for product

characteristics

color

silver, orange

materials

cast iron (ASTM A536 65-45-12)

finishing

hot dip galvanized, varnished

connection type

groove (fitting), Rp - female thread cylindrical (BSPT)

general

product group

fittings (demountable)

ETIM class

EC003024 Fitting with 2 connections

brand

VSH

series

Shurjoint

product type

54

UNSPS

40171704

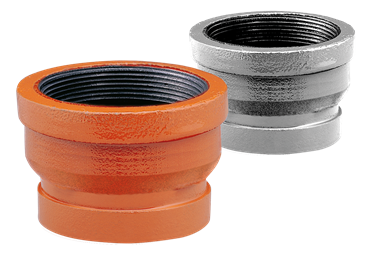

image for 54-Combi

image | png

54-Combi

image for Diagram

diagram | png

Diagram

installation- & maintenance document | pdf

VSH Shurjoint Installation Handbook

installation- & maintenance document | pdf

VSH Shurjoint installation instructions

certifications | pdf

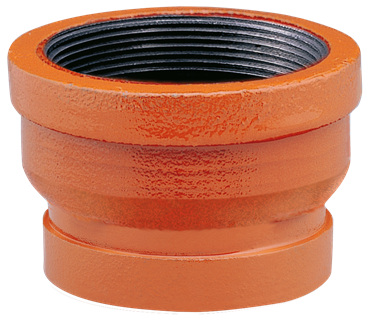

image for 54

image | png

54

image for 54-GV

image | png

54-GV

link to sheet | pdf

MSDS_Shurjoint_Orange_paint

label

value

label

Material connection 1

value

Cast iron

label

Material quality connection 1

value

ASTM A536 Grade 65-45-12

label

Material connection 2

value

Cast iron

label

Material quality connection 2

value

ASTM A536 Grade 65-45-12

label

Shape

value

Straight

label

Reducing

value

No

label

Eccentric

value

No

label

System specific

value

Yes

label

Connection 1

value

Groove

label

Connection 2

value

Internal thread cylindrical BSPT-Rp (ISO 7-1 / EN 10226-1)

label

With buffer stud

value

No

label

High tensile strength

value

Yes

label

With sealing rings/gaskets

value

No

label

Capped

value

No

label

With connection indicator

value

No

label

With drain valve

value

No

label

With de-aerator

value

No

label

FM quality mark

value

No

label

LPCB quality mark

value

No

label

ULC quality mark

value

No

label

UL quality mark

value

No

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

Certified according to NF 545

value

No

label

KIWA certified

value

No

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No
