group: 369CPLS
heating
commercial building
no approvals available
code
size
dimensions
weight
packaging
gtin
code
size
15xR1/2
dimensions
30x80x80 mm
weight
0.19 kg
packaging
bag (1 pce)
gtin
05013866017810

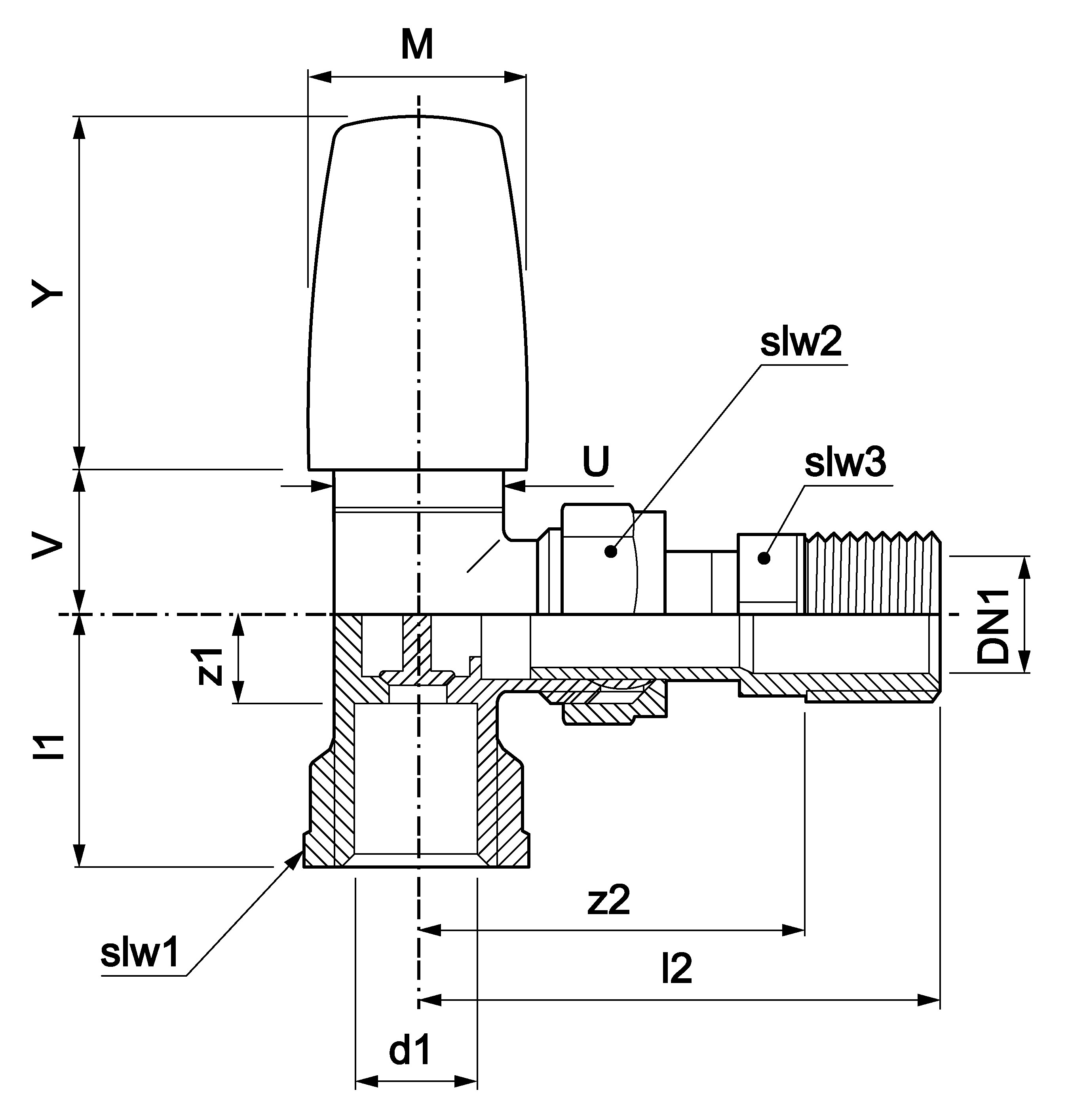

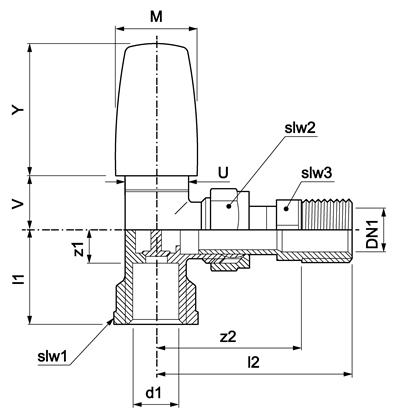

code
size
l1
z1
l2
z2
item

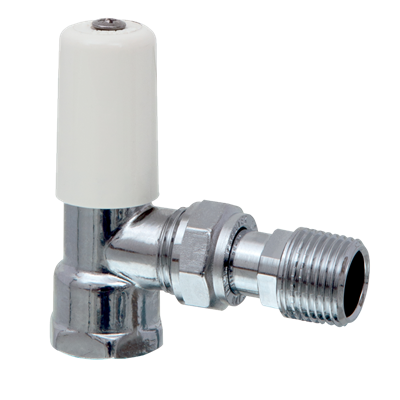

Pegler Terrier LS
item number with gtin
369CPLS (05013866017810)
manufacturer
Aalberts integrated piping systems Ltd (Pegler)
size
15xR1/2
weight
0.19 kg
dimensions
30x80x80 mm
color
chrome
materials
brass, plastic (CW617N, ABS)
finishing
polished chrome
shape
Elbow
connection type
compression, R - male thread gas conical (BSPT)
pressure rating (PN)
PN 10
sealing
EPDM
max operating pressure liquid
10 bar
min. medium temperature
4 °C
max medium temperature
120 °C
peak medium temperature
120 °C
product group
appendages (MRV)
ETIM class
EC010136 Radiator valveHS code
84818039
brand
Pegler
series
Terrier Domestic
product type
369CPLS
UNSPS
40141609
label
value
label
etim-class
value
EC010136 Radiator valvelabel
Housing material
value
Brass
label
Shape
value
Right-angled
label
Suitable for single pipe system
value
No
label
Suitable for two pipe system
value
No
label
Length of connection 1
value
25mm
label
Length of connection 1 (imperial)
value
0.98"
label
Working length connection 1
value
8mm
label
Working length connection 1 (imperial)
value
0.31"
label
Length of connection 2
value
65mm
label
Length of connection 2 (imperial)
value
2.56"
label
Working length connection 2
value
50mm
label
Working length connection 2 (imperial)
value
1.97"
label
Height
value
80mm
label
Height (imperial)
value
3.15"
code
carbon footprint (A-C) embodied carbon
data source
841008
850328
841006
841101
840109
840111
