chrome plated straight towel rail valve wh & ls for copper

group: 368TRVCPLSSTR

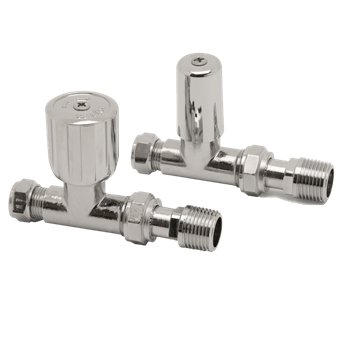

The Pegler Terrier 368ALLCPWHLS is pack containing a 368ALLCPWH and a 368ALLCPLS with are both manually operated straight pattern radiator valves with fully chrome plated bodies and handles. They both have screw down handles for anti-tamper and safety with a long-life glad packing with rise spindle for extended reliability
  • approved to BS 2767-10, ensuring water working pressure up to 10bar (non-shock).
  • built in drain valve for easy draining and maintenance.
  • screw down handles for anti-tamper and safety.
  • quick and easy to install.
  • read more
    read less
    if the download did not start automatically, click here

    PDF generation failed, please try again later

    applications

    heating

    heating

    segments

    commercial building

    commercial building

    approvals

    no approvals available

    item number

    size

    dimensions

    weight

    packaging

    gtin

    item number

    602200

    size

    15xR1/2

    dimensions

    64x72x88 mm

    weight

    0.45 kg

    packaging

    box (1 pce)

    gtin

    05013866065729

    item number

    size

    item number

    602200

    size

    15xR1/2

    technical drawing for product

    characteristics

    color

    chrome

    materials

    plastic, brass (CW617N, ABS)

    finishing

    polished chrome

    shape

    Elbow

    connection type

    compression, R - male thread gas conical (BSPT)

    sealing

    EPDM

    general

    product group

    radiator valves (MRV)

    ETIM class

    EC010136 Radiator valve

    HS code

    84818039

    brand

    Pegler

    series

    Terrier Decorative

    product type

    368TRVCPLSSTR

    UNSPS

    40141609

    technical

    max operating pressure liquid

    10 bar

    min. medium temperature

    4 °C

    max medium temperature

    120 °C

    peak medium temperature

    120 °C

    image for 368ALLCPWHLS

    image | png

    368ALLCPWHLS

    image for Diagram

    diagram | jpg

    Diagram

    certifications | pdf

    Pegler_Radiator_valve_KM_07441

    label

    value

    label

    ETIM class

    label

    Housing material

    value

    Brass

    label

    Shape

    value

    Right-angled

    label

    Suitable for single pipe system

    value

    No

    label

    Suitable for two pipe system

    value

    No

    label

    Height

    value

    88mm

    item number

    carbon footprint (A-C) embodied carbon

    data source

    item number

    602200

    carbon footprint (A-C) embodied carbon

    1.77kgCO2e

    data source

    TM65
