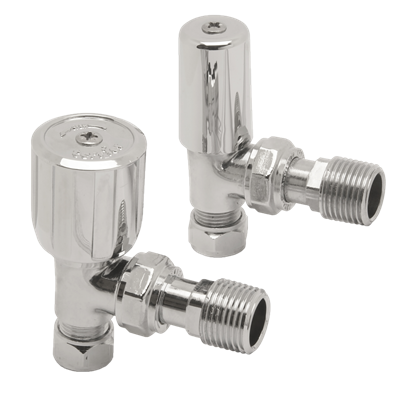

Pegler Terrier TRV WH and LS (pack)

group: 367TRVCPLS

The Pegler Terrier 367ALLCPWH is a manually operated wheel handle angle pattern radiator valve with a fully chrome plated body and handle. It has screw down handles for anti-tamper and safety with a long-life glad packing with rise spindle for extended reliability

  • approved to BS 2767-10, ensuring water working pressure up to 10bar (non-shock).
  • fully chromed plated body and handle for a modern stylish look.
  • screw down handles for anti-tamper and safety.
  • quick and easy to install.
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

heating

heating

segments

commercial building

commercial building

approvals

BSI Kitemark

BSI Kitemark

item number

size

item number

601200

size

15xR1/2

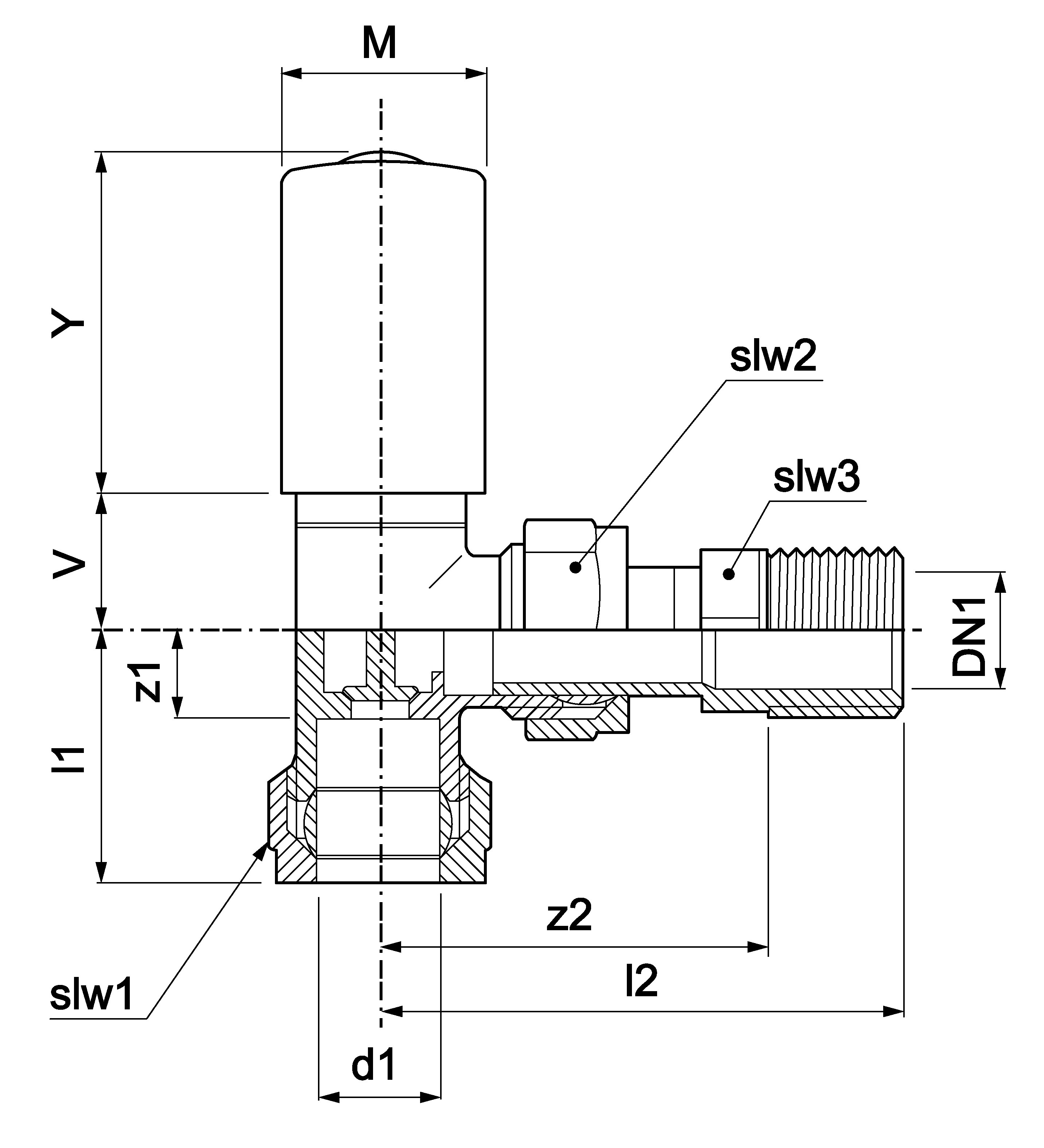

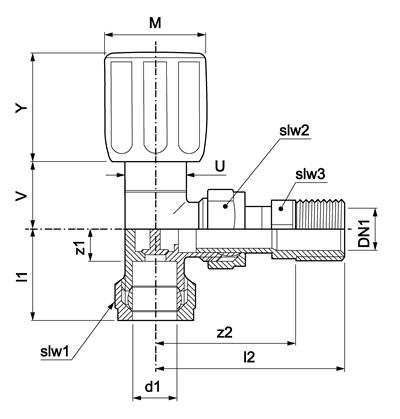

technical drawing for product

characteristics

color

chrome

materials

plastic, brass (CW617N, ABS)

finishing

polished chrome

shape

Elbow

connection type

compression, R - male thread gas conical (BSPT)

sealing

EPDM

general

product group

radiator valves (MRV)

ETIM class

EC010136 Radiator valve

HS code

84818039

brand

Pegler

series

Terrier Decorative

product type

367TRVCPLS

UNSPS

40141609

label

value

label

ETIM class

label

Housing material

value

Brass

label

Shape

value

Right-angled

label

Suitable for single pipe system

value

No

label

Suitable for two pipe system

value

No

label

Height

value

88mm
