Angle Pattern

group: 367CPLS

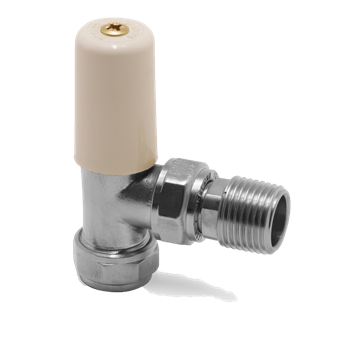

The Pegler Terrier 367CPLS is a manually operated angle pattern Lock shield. It has screw down handles for anti-tamper and safety with a long-life glad packing with rise spindle for extended reliability
  • approved to BS 2767-10, ensuring water working pressure up to 10bar (non-shock).
  • screw down handles for anti-tamper and safety.
  • quick and easy to install.
  • read more
    read less
    if the download did not start automatically, click here

    PDF generation failed, please try again later

    applications

    heating

    heating

    segments

    commercial building

    commercial building

    approvals

    BSI Kitemark

    BSI Kitemark

    item number

    size

    l1

    z1

    l2

    z2

    item number

    601036

    size

    10xR1/2

    l1

    29

    z1

    8

    l2

    61

    z2

    45

    item number

    601038

    size

    15xR1/2

    l1

    29

    z1

    8

    l2

    61

    z2

    45

    technical drawing for product

    characteristics

    color

    chrome

    materials

    plastic, brass (CW617N, ABS)

    finishing

    polished chrome

    shape

    Elbow

    connection type

    compression, R - male thread gas conical (BSPT)

    sealing

    EPDM

    general

    product group

    radiator valves (MRV)

    ETIM class

    EC010136 Radiator valve

    HS code

    84818039

    brand

    Pegler

    series

    Terrier Domestic

    product type

    367CPLS

    UNSPS

    40141609

    technical

    max operating pressure liquid

    10 bar

    min. medium temperature

    4 °C

    max medium temperature

    120 °C

    peak medium temperature

    120 °C

    image for 367CPLS

    image | png

    367CPLS

    image for Diagram

    diagram | jpg

    Diagram

    certifications | pdf

    Pegler_Radiator_valve_KM_07441

    label

    value

    label

    ETIM class

    label

    Housing material

    value

    Brass

    label

    Shape

    value

    Right-angled

    label

    Suitable for single pipe system

    value

    No

    label

    Suitable for two pipe system

    value

    No

    label

    Length of connection 1

    value

    29mm

    label

    Length of connection 1 (imperial)

    value

    1.14"

    label

    Working length connection 1

    value

    8mm

    label

    Working length connection 1 (imperial)

    value

    0.31"

    label

    Length of connection 2

    value

    61mm

    label

    Length of connection 2 (imperial)

    value

    2.4"

    label

    Working length connection 2

    value

    45mm

    label

    Working length connection 2 (imperial)

    value

    1.77"

    label

    Height

    value

    80mm

    item number

    carbon footprint (A-C) embodied carbon

    data source

    item number

    601036

    carbon footprint (A-C) embodied carbon

    0.68kgCO2e

    data source

    TM65

    item number

    601038

    carbon footprint (A-C) embodied carbon

    0.67kgCO2e

    data source

    TM65
