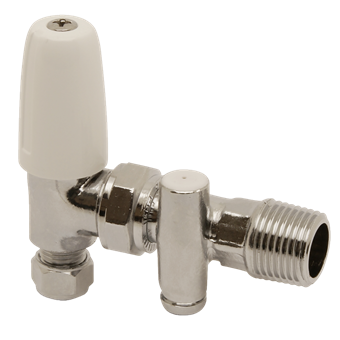

CPDLS Angle Pattern with Drain Off

group: 367CPDLS

The Pegler Terrier 367CPDLS is a manually operated chrome plated angle pattern Drain Lock shield. Providing easy draining of the radiator system for maintenance. It has screw down handles for anti-tamper and safety with a long-life glad packing with rise spindle for extended reliability

  • approved to BS 2767-10, ensuring water working pressure up to 10bar (non-shock).
  • easily accessible draining mechanism.
  • screw down handles for anti-tamper and safety.
  • quick and easy to install.
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

heating

heating

segments

commercial building

commercial building

approvals

BSI Kitemark

BSI Kitemark

item number

size

l1

z1

l2

z2

item number

601056

size

10xRp1/2

l1

29

z1

13

l2

88

z2

71

item number

601058

size

15xRp1/2

l1

29

z1

13

l2

88

z2

71

technical drawing for product

characteristics

color

chrome

materials

plastic, brass (CW617N, ABS)

finishing

polished chrome

manufacturer

Aalberts integrated piping systems Ltd (Pegler)

shape

Elbow

connection type

compression, R - male thread gas conical (BSPT)

sealing

EPDM

general

product group

radiator valves (MRV)

ETIM class

EC010136 Radiator valve

HS code

84818039

brand

Pegler

series

Terrier Domestic

product type

367CPDLS

UNSPS

40141609

label

value

label

ETIM class

label

Housing material

value

Brass

label

Shape

value

Right-angled

label

Suitable for single pipe system

value

No

label

Suitable for two pipe system

value

No

label

Length of connection 1

value

29mm

label

Length of connection 1 (imperial)

value

1.14"

label

Working length connection 1

value

13mm

label

Working length connection 1 (imperial)

value

0.51"

label

Length of connection 2

value

88mm

label

Length of connection 2 (imperial)

value

3.46"

label

Working length connection 2

value

71mm

label

Working length connection 2 (imperial)

value

2.8"

label

Height

value

95mm
