Pegler screwdriver filter valve (removable filter) compression

if the download did not start automatically, click here

PDF generation failed, please try again later

applications

no applications available

segments

no segments available

approvals

WRAS

WRAS

item number

size

dimensions

weight

packaging

gtin

item number

13304

size

15 Cr

dimensions

30x30x63

weight

0.15 kg

packaging

-

gtin

05708537082012

item number

size

item number

13304

size

15 Cr

technical drawing for product

characteristics

color

chrome

materials

brass (CW602N (DZR))

shape

straight

connection type

compression

pressure rating (PN)

PN 16

sealing

EPDM

general

product group

valves (strainers)

HS code

84818081

brand

Pegler

series

Strainer

product type

33615ZA

UNSPS

40142505

technical

max operating pressure liquid

16 bar

min. medium temperature

10 °C

max medium temperature

120 °C

peak medium temperature

120 °C

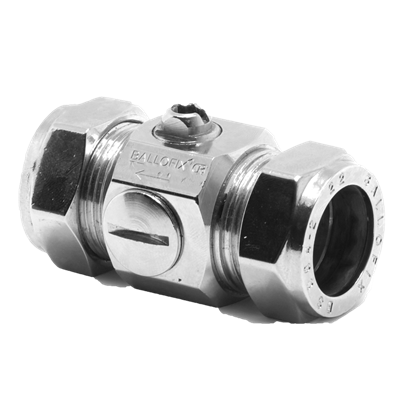

image for 33615ZA

image | png

33615ZA

certifications | pdf

WRAS_BALLOFIX_Spherical_Valves

item number

carbon footprint (A-C) embodied carbon

data source

item number

13304

carbon footprint (A-C) embodied carbon

0.85kgCO2e

data source

EPD
