Pegler screwdriver service valve compression

if the download did not start automatically, click here

PDF generation failed, please try again later

applications

no applications available

segments

no segments available

approvals

WRAS

WRAS

  • assortment
  • dimensions
  • specifications
  • downloads
  • sustainability

code

size

dimensions

weight

packaging

gtin

code

13133

size

15xG1/2"

dimensions

25x25x60

weight

0.13 kg

packaging

-

gtin

-

code

size

code

13133

size

15xG1/2"

technical drawing for product

product info

item

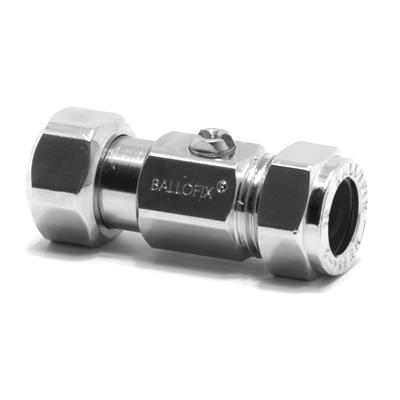

Pegler screwdriver service valve compression

item number with gtin

3140ZA

manufacturer

Aalberts integrated piping systems Ltd (Pegler)

size

15xG1/2"

weight

0.13 kg

dimensions

25x25x60

characteristics

color

chrome

materials

brass (CW602N (DZR))

shape

straight

connection type

compression

pressure rating (PN)

PN 16

sealing

EPDM

technical

max operating pressure liquid

16 bar

min. medium temperature

10 °C

max medium temperature

120 °C

peak medium temperature

120 °C

general

product group

afsluiters (ball valves)

HS code

84818081

brand

Pegler

series

Isolation Valve

product type

3140ZA

UNSPS

40141609

image for 3140ZA

image | jpg

3140ZA

certifications | pdf

Broen Ballofix mini ball valve KIWA

code

carbon footprint (A-C) embodied carbon

data source

code

13133

carbon footprint (A-C) embodied carbon

0.75kgCO2e

data source

TM65
