Pegler ProFlow 1600 cap

Product Image for Pegler ProFlow 1600 cap
Product Image for Pegler ProFlow 1600 cap

group: 1600CP

The type 1600CP, Apollo ProFlow Cap protects the setting and operating head of the 1600 PICV valve from dirt and damage.

The type 1600 PICV is designed to eliminate existing heating and cooling system issues. Apollo ProFlow PICV’s are supplied in bypass configuration. Valves can be installed and flushed (forward and backward) at full bore prior to commissioning with the PICV mechanism safely out of the way. Once the system is clean and ready to commission, a simple rotation of the PICV head introduces the valve into the flow, and rotates the bypass out of the way.
  • when the 1600 PICV is in use, the valve and its parts can be hot. When handling the valve, appropriate safety measures must be taken
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

heating

heating

cooling

cooling

show all
show less

segments

commercial building

commercial building

industry

industry

show all
show less

approvals

no approvals available

item number

size

dimensions

weight

packaging

gtin

item number

16078

size

DN20/DN25

dimensions

34x34x25

weight

0.01 kg

packaging

bag (1 pce)

gtin

05022050654939

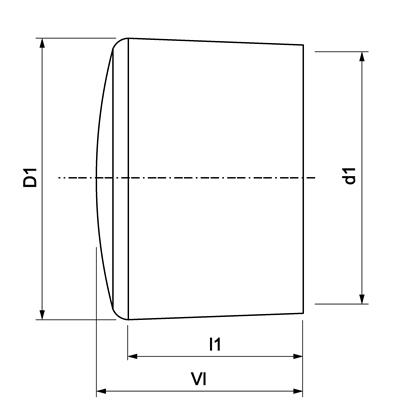

item number

size

d1

l1

D1

item number

16078

size

DN20/DN25

d1

30.0

l1

21

D1

34

technical drawing for product

characteristics

color

black

materials

rubber

finishing

none

shape

straight (0º)

general

product group

valves (accessories (valves), dynamic balancing valves)

brand

Pegler

series

ProFlow Dynamic Integrated Technology

product type

1600CP

UNSPS

24122004

image for Diagram

diagram | jpg

Diagram
