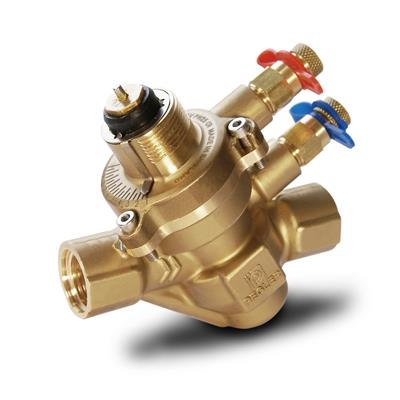

Pegler ProFlow dynamic balancing valve PICV (2 x female thread)

group: 1500

The new Pegler ProFlow 1500 is a great addition to the PICV family, with a range flexibility of DN15 to DN50, the new 1500 PICV comes complete with a direct fast flush cap giving simple access to removing the cartridge. The location of test points allow direct flow measuring utilising the built-in venturi technology. With its compact size and ease of installation, the Proflow 1500 is the perfect solution for modern buildings.

  • Made in UK
  • range - DN15 - DN50
  • improved fast flush cap
  • direct measuring of flow
  • easy cartridge exchange
  • settings visible when the actuator is attached
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

heating

heating

cooling

cooling

segments

commercial building

commercial building

industry

industry

approvals

no approvals available

item number

size

dimensions

weight

packaging

gtin

item number

15112

size

G1/2" (DN15) LF

dimensions

102x68x104

weight

0.67 kg

packaging

-

gtin

05022050672971

item number

15113

size

G1/2" (DN15) SF

dimensions

103x68x104

weight

0.67 kg

packaging

-

gtin

05022050673039

item number

15114

size

G1/2" (DN15) HF

dimensions

104x68x104

weight

0.67 kg

packaging

-

gtin

05022050673060

item number

15115

size

G3/4" (DN20) SF

dimensions

120x81x122

weight

1.06 kg

packaging

-

gtin

05022050673091

item number

15116

size

G3/4" (DN20) HF

dimensions

120x81x122

weight

1.06 kg

packaging

-

gtin

05022050673169

item number

15117

size

G1" (DN25) SF

dimensions

142x108x132

weight

1.59 kg

packaging

-

gtin

05022050688255

item number

15118

size

G1" (DN25) HF

dimensions

142x108x132

weight

1.59 kg

packaging

-

gtin

05022050688286

item number

15119

size

G1 1/4" (DN32) HF

dimensions

159x124x156

weight

2.1 kg

packaging

-

gtin

05022050688316

item number

15272

size

G1 1/2" (DN40) SF

dimensions

190x162x195

weight

3.65 kg

packaging

-

gtin

05022050688347

item number

15273

size

G2" (DN50) HF

dimensions

200x162x195

weight

4.09 kg

packaging

-

gtin

05022050688361

item number

size

d1

DN1

l1

z1

slw1

d2

DN2

l2

z2

slw2

H

V

U

a

item number

15112

size

G1/2" (DN15) LF

d1

15.0

DN1

1/2" (DN15)

l1

45

z1

25

slw1

28

d2

15.0

DN2

1/2" (DN15)

l2

57

z2

37

slw2

28

H

69

V

45

U

68

a

60

item number

15113

size

G1/2" (DN15) SF

d1

15.0

DN1

1/2" (DN15)

l1

45

z1

25

slw1

28

d2

15.0

DN2

1/2" (DN15)

l2

58

z2

37

slw2

28

H

69

V

45

U

68

a

60

item number

15114

size

G1/2" (DN15) HF

d1

15.0

DN1

1/2" (DN15)

l1

45

z1

25

slw1

28

d2

15.0

DN2

1/2" (DN15)

l2

59

z2

37

slw2

28

H

69

V

45

U

68

a

60

item number

15115

size

G3/4" (DN20) SF

d1

22.0

DN1

3/4" (DN20)

l1

53

z1

33

slw1

34

d2

22.0

DN2

3/4" (DN20)

l2

67

z2

47

slw2

34

H

78

V

57

U

81

a

60

item number

15116

size

G3/4" (DN20) HF

d1

22.0

DN1

3/4" (DN20)

l1

53

z1

33

slw1

34

d2

22.0

DN2

3/4" (DN20)

l2

67

z2

47

slw2

34

H

78

V

57

U

81

a

60

item number

15117

size

G1" (DN25) SF

d1

28.0

DN1

1" (DN25)

l1

59

z1

37

slw1

41

d2

28.0

DN2

1" (DN25)

l2

83

z2

53

slw2

41

H

89

V

65

U

108

a

60

item number

15118

size

G1" (DN25) HF

d1

28.0

DN1

1" (DN25)

l1

59

z1

37

slw1

41

d2

28.0

DN2

1" (DN25)

l2

83

z2

53

slw2

41

H

89

V

65

U

108

a

60

item number

15119

size

G1 1/4" (DN32) HF

d1

35.0

DN1

1 1/4" (DN32)

l1

69

z1

44

slw1

50

d2

35.0

DN2

1 1/4" (DN32)

l2

90

z2

64

slw2

50

H

102

V

77

U

124

a

60

item number

15272

size

G1 1/2" (DN40) SF

d1

42.0

DN1

1 1/2" (DN40)

l1

78

z1

54

slw1

57

d2

42.0

DN2

1 3/4" (DN40)

l2

112

z2

87

slw2

57

H

129

V

107

U

162

a

60

item number

15273

size

G2" (DN50) HF

d1

54.0

DN1

2" (DN50)

l1

86

z1

56

slw1

70

d2

54.0

DN2

2" (DN50)

l2

114

z2

85

slw2

70

H

128

V

106

U

162

a

60

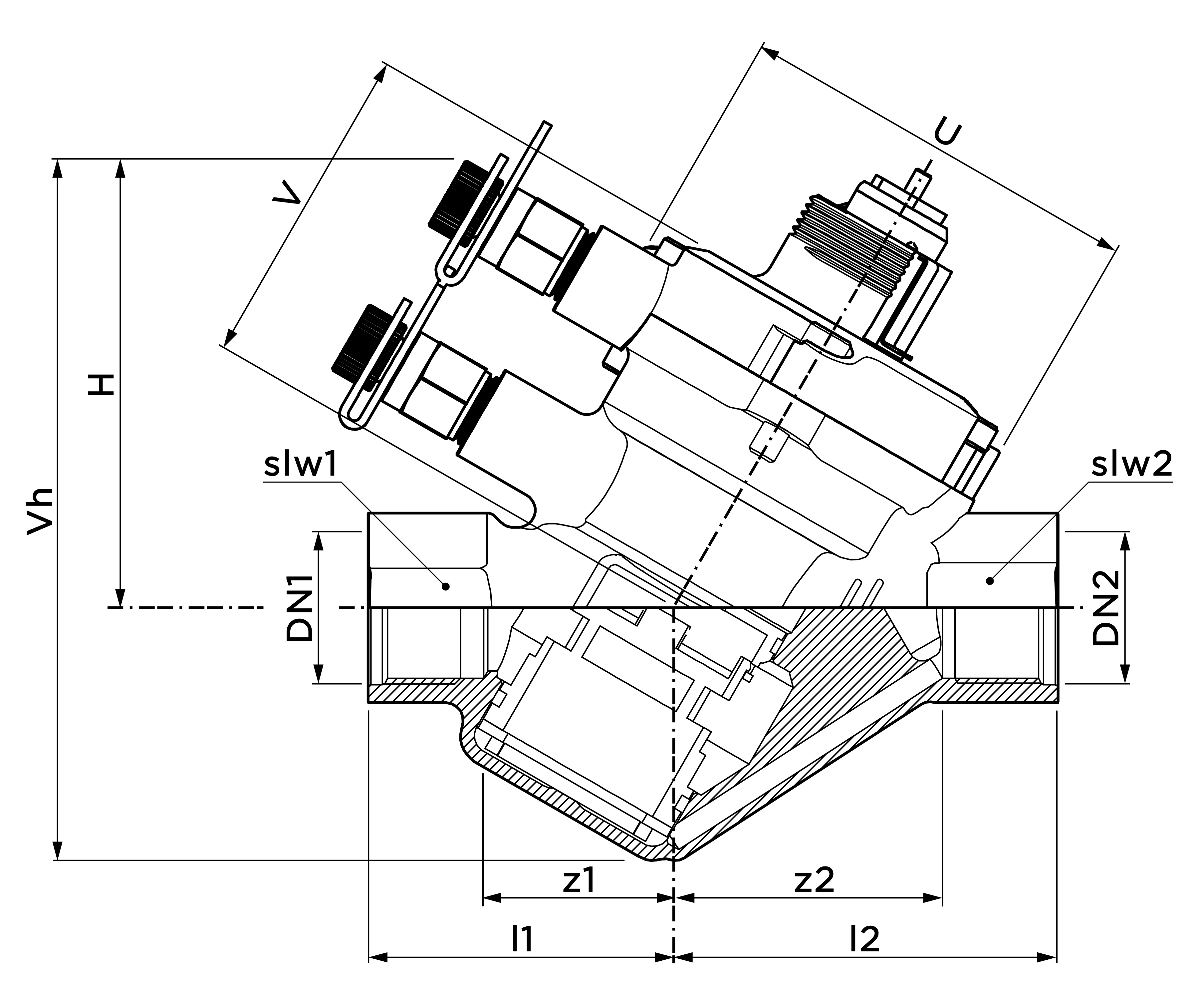

technical drawing for product

characteristics

color

brass

materials

brass (CW511L (lead-free), CuZn36Pb-C (CC7770S))

finishing

none

shape

straight (60º)

connection type

G - female thread gas cylindrical (BSPP)

pressure rating (PN)

PN 25

sealing

EPDM

general

product group

valves (dynamic balancing valves)

ETIM class

EC011463 Regulating valve

brand

Pegler

series

ProFlow Dynamic

product type

1500

UNSPS

40141609

technical

max operating pressure liquid

25 bar

min. medium temperature

-10 °C

max medium temperature

95 °C

peak medium temperature

95 °C

Kvs-value

value depends on the item view items

image for 1500 PICV

image | png

1500 PICV

Other document | pdf

Pegler ProFlow Technical Manual

image for Diagram

diagram | jpg

Diagram

Other document | pdf

Pegler ProFlow Price List

Presentation video | mp4

Pegler ProFlow PICV 1500

Other document | pdf

Spec Clause-ProFlow 1500 PICV-updates

label

value

label

ETIM class

label

Housing material

value

Brass

label

Surface protection

value

Untreated

label

Connection 1

value

Internal thread cylindrical BSPP-G (ISO 228-1)

label

With coupling connection 1

value

No

label

Connection 2

value

Internal thread cylindrical BSPP-G (ISO 228-1)

label

With coupling connection 2

value

No

label

Article compression class

value

PN 25

label

Flange compression class

value

PN 25

label

Suitable for tap water

value

No

label

Suitable for hot tap water

value

No

label

Suitable for central heating water

value

Yes

label

Max. operating pressure

value

25bar

label

Max. operating pressure (imperial)

value

362.59psi

label

Medium temperature (continuous)

value

-10°C - 95°C

label

Medium temperature (continuous) (imperial)

value

14°F - 203°F

label

Suitable for manual operation

value

No

label

Thermostatic

value

No

label

Hydraulic balance control

value

Dynamic

label

With drain valve

value

No

label

With thermometer

value

No

label

With position indicator

value

No

label

Spindle angle

value

60°

label

Spindle angle (imperial)

value

2.36"

label

With insulation

value

No

item number

carbon footprint (A-C) embodied carbon

data source

item number

15112

carbon footprint (A-C) embodied carbon

3.28kgCO2e

data source

TM65

item number

15113

carbon footprint (A-C) embodied carbon

3.28kgCO2e

data source

TM65

item number

15114

carbon footprint (A-C) embodied carbon

3.27kgCO2e

data source

TM65

item number

15115

carbon footprint (A-C) embodied carbon

5.21kgCO2e

data source

TM65

item number

15116

carbon footprint (A-C) embodied carbon

5.23kgCO2e

data source

TM65

item number

15117

carbon footprint (A-C) embodied carbon

7.98kgCO2e

data source

TM65

item number

15118

carbon footprint (A-C) embodied carbon

7.98kgCO2e

data source

TM65

item number

15119

carbon footprint (A-C) embodied carbon

10.19kgCO2e

data source

TM65

item number

15272

carbon footprint (A-C) embodied carbon

17.88kgCO2e

data source

TM65

item number

15273

carbon footprint (A-C) embodied carbon

19.85kgCO2e

data source

TM65
