vb1490 straight valve body preset

group: 1490/4P

The Pegler Belmont 1490/4P is a straight pattern concealed lock shield radiator valve which comes pre-set. This valve requires an Allen key to adjust the flow and provides tamper resistance which prevents accidental or vandal adjustment in public areas and ensures protection for system balance.
  • Suits a wide range of commercial applications
  • Can be serviced without draining
  • Concealed lock shield with Allen key adjustment
  • read more
    read less
    if the download did not start automatically, click here

    PDF generation failed, please try again later

    applications

    heating

    heating

    segments

    commercial building

    commercial building

    approvals

    BSI Kitemark

    BSI Kitemark

    item number

    size

    item number

    686084

    size

    15x1/2xR1/2

    item number

    686085

    size

    22x3/4xR3/4

    technical drawing for product

    characteristics

    color

    chrome

    materials

    plastic, brass (CW617N, ABS)

    finishing

    polished chrome

    shape

    Elbow

    connection type

    G - female thread gas cylindrical (BSPP), Rp - female thread cylindrical (BSPT)

    sealing

    EPDM

    general

    product group

    radiator valves (TRV)

    ETIM class

    EC010136 Radiator valve

    HS code

    84818031

    brand

    Pegler

    series

    Belmont TRV

    product type

    1490/4P

    UNSPS

    40141609

    technical

    max operating pressure liquid

    10 bar

    min. medium temperature

    4 °C

    max medium temperature

    120 °C

    peak medium temperature

    120 °C

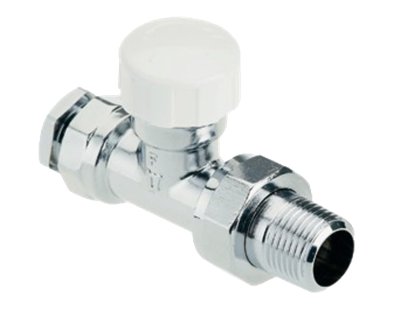

    image for VB1490

    image | png

    VB1490

    certifications | pdf

    BSI Keymark Pegler Thermostatic radiator valves

    certifications | pdf

    BSI Kitemark Pegler Thermostatic radiator valves

    label

    value

    label

    ETIM class

    label

    Housing material

    value

    Brass

    label

    Suitable for single pipe system

    value

    No

    label

    Suitable for two pipe system

    value

    No

    item number

    carbon footprint (A-C) embodied carbon

    data source

    item number

    686084

    carbon footprint (A-C) embodied carbon

    1.01kgCO2e

    data source

    TM65

    item number

    686085

    carbon footprint (A-C) embodied carbon

    1.5kgCO2e

    data source

    TM65
