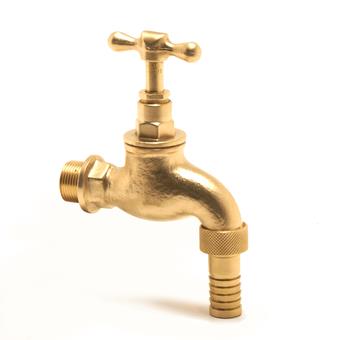

Brass Hose Union Bibtap BS 1010

group: 141HU

read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

segments

commercial building

commercial building

approvals

no approvals available

item number

size

DN1

l1

z1

DN2

l2

z2

M1

M2

Y

V

U

D1

angle

item number

508037

size

G1/2"

DN1

1/2" (DN15)

l1

70

z1

36

DN2

DN15

l2

44

z2

31

M1

27

M2

27

Y

15

V

63

U

30

D1

30

angle

0

item number

508038

size

G3/4"

DN1

3/4" (DN20)

l1

76

z1

34

DN2

DN20

l2

60

z2

44

M1

31

M2

31

Y

17

V

64

U

40

D1

30

angle

0

item number

size

angle

G1/2"

0

G3/4"

0

technical drawing for product

characteristics

color

brass

materials

brass (CW617N)

finishing

none

manufacturer

Aalberts integrated piping systems Ltd (Pegler)

shape

Elbow (0º)

connection type

G - male thread gas cylindrical (BSPP), hose connector

pressure rating (PN)

PN 10

sealing

Rubber sealing

general

product group

taps (stop valves)

ETIM class

EC011375 Water tap

HS code

84818019

brand

Pegler

series

Prestex Bibtap

product type

141HU

UNSPS

23241615

label

value

label

ETIM class

label

Material tap

value

Brass

label

Tap nozzle

value

With hose connection

label

With aerator

value

No
