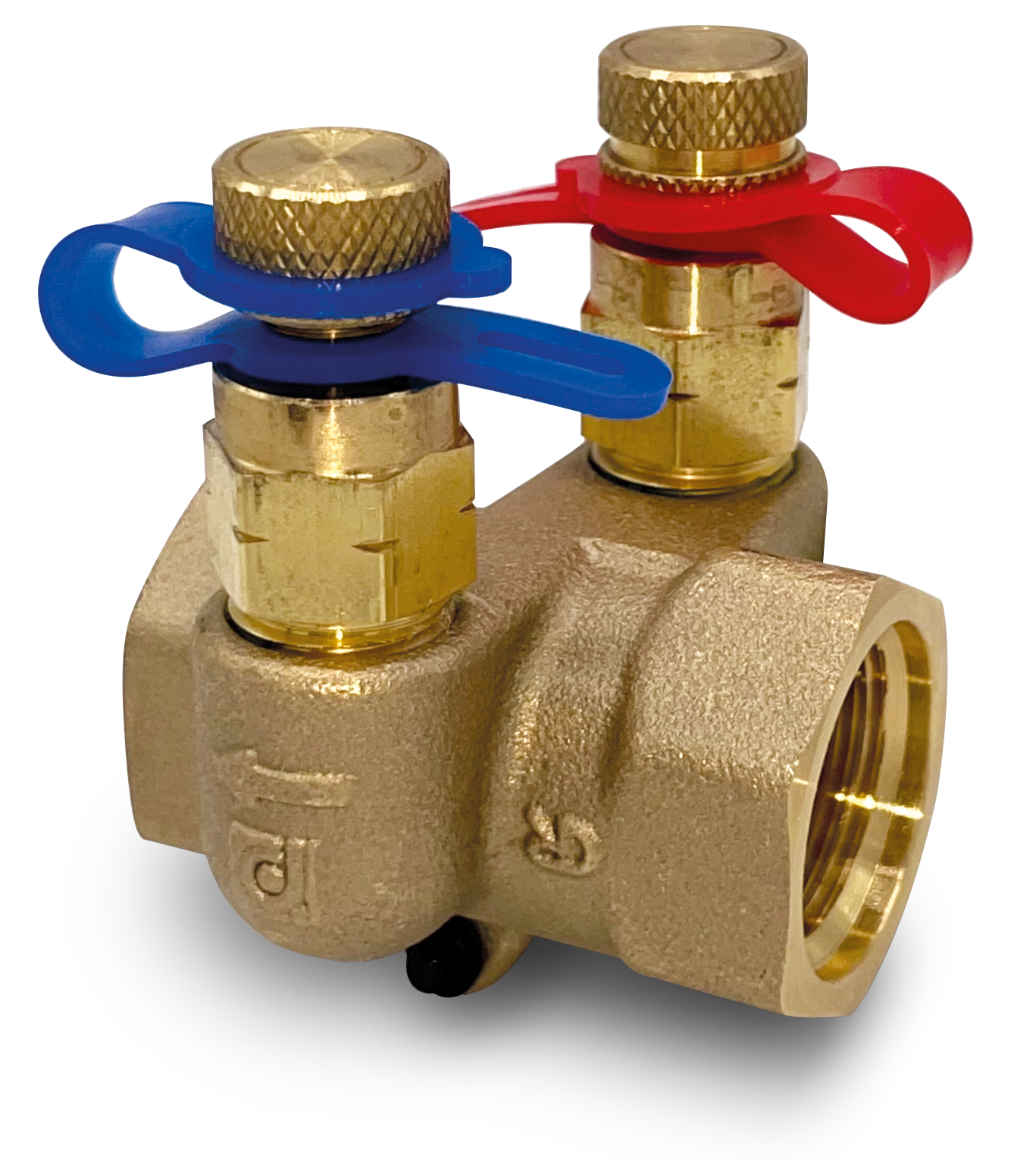

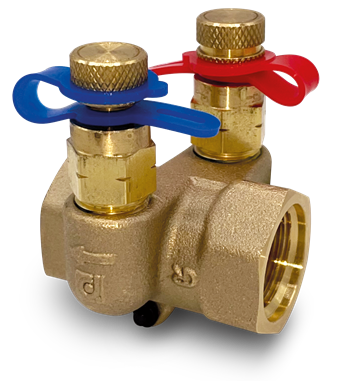

Pegler Proflow fixed orifice metering station

code

size

dimensions

weight

packaging

gtin

code

126040

size

G1/2" (DN15) ULF

dimensions

46x48x63 mm

weight

0.25 kg

packaging

bag (1 pce)

gtin

05022050435132

code

126049

size

G1/2" (DN15) MF

dimensions

46x48x63 mm

weight

0.25 kg

packaging

box (1 pce)

gtin

05022050435484

code

126090

size

G1/2" (DN15) LF

dimensions

46x48x63 mm

weight

0.25 kg

packaging

bag (1 pce)

gtin

05022050217417

code

126091

size

G1/2" (DN15) SF

dimensions

46x48x63 mm

weight

0.25 kg

packaging

bag (1 pce)

gtin

05022050217639

code

126092

size

G3/4" (DN20) SF

dimensions

47x52x68 mm

weight

0.29 kg

packaging

bag (1 pce)

gtin

05022050217738

code

126093

size

G1" (DN25) SF

dimensions

52x56x74 mm

weight

0.37 kg

packaging

bag (1 pce)

gtin

05022050217790

code

126094

size

G1 1/4" (DN32) SF

dimensions

56x62x83 mm

weight

0.55 kg

packaging

bag (1 pce)

gtin

05022050217844

code

126095

size

G1 1/2" (DN40) SF

dimensions

61x68x86 mm

weight

0.59 kg

packaging

bag (1 pce)

gtin

05022050217899

code

126096

size

G2" (DN50) SF

dimensions

77x75x99 mm

weight

0.98 kg

packaging

bag (1 pce)

gtin

05022050217950

code

size

d1

DN1

l1

z1

slw1

d2

DN2

l2

z2

slw2

H

a

code

126040

size

G1/2" (DN15) ULF

d1

21.3

DN1

1/2" (DN15)

l1

23

z1

7

slw1

26

d2

21.3

DN2

1/2" (DN15)

l2

23

z2

7

slw2

26

H

41

a

90

code

126049

size

G1/2" (DN15) MF

d1

21.3

DN1

1/2" (DN15)

l1

23

z1

7

slw1

26

d2

21.3

DN2

1/2" (DN15)

l2

23

z2

7

slw2

26

H

41

a

90

code

126090

size

G1/2" (DN15) LF

d1

21.3

DN1

1/2" (DN15)

l1

23

z1

7

slw1

26

d2

21.3

DN2

1/2" (DN15)

l2

23

z2

7

slw2

26

H

41

a

90

code

126091

size

G1/2" (DN15) SF

d1

21.3

DN1

1/2" (DN15)

l1

23

z1

7

slw1

26

d2

21.3

DN2

1/2" (DN15)

l2

23

z2

7

slw2

26

H

41

a

90

code

126092

size

G3/4" (DN20) SF

d1

26.9

DN1

3/4" (DN20)

l1

24

z1

9

slw1

31

d2

26.9

DN2

3/4" (DN20)

l2

24

z2

9

slw2

31

H

44

a

90

code

126093

size

G1" (DN25) SF

d1

33.7

DN1

1" (DN25)

l1

26

z1

6

slw1

40

d2

33.7

DN2

1" (DN25)

l2

26

z2

6

slw2

40

H

45

a

90

code

126094

size

G1 1/4" (DN32) SF

d1

42.4

DN1

1 1/4" (DN32)

l1

28

z1

6

slw1

50

d2

42.4

DN2

1 1/4" (DN32)

l2

28

z2

4

slw2

50

H

50

a

90

code

126095

size

G1 1/2" (DN40) SF

d1

48.3

DN1

1 1/2" (DN40)

l1

31

z1

7

slw1

55

d2

48.3

DN2

1 1/2" (DN40)

l2

31

z2

7

slw2

55

H

51

a

90

code

126096

size

G2" (DN50) SF

d1

60.3

DN1

2" (DN50)

l1

39

z1

7

slw1

69

d2

60.3

DN2

2" (DN50)

l2

39

z2

7

slw2

69

H

56

a

90

product info

item

Pegler Proflow fixed orifice metering station

item number with gtin

1250

manufacturer

Aalberts integrated piping systems Ltd (Pegler)

weight

0.98 kg

dimensions

77x75x99 mm

characteristics

color

brass

materials

brass (CW511L (lead-free))

finishing

none

shape

straight

connection type

Rp - female thread cylindrical (BSPT)

pressure rating (PN)

PN 25

sealing

EPDM

technical

max operating pressure liquid

25 bar

min. medium temperature

-10 °C

max medium temperature

150 °C

peak medium temperature

150 °C

general

product group

valves (static balancing valves)

ETIM class

EC011463 Regulating valve

HS code

84818099

brand

Pegler

series

ProFlow Static

product type

1250

UNSPS

40141609

image | png

1250

diagram | jpg

Diagram

certifications | pdf

Pegler Proflow NSF REG4

certifications | pdf

TM65 Embodied Carbon Declaration

certifications | pdf

WRAS_1250_Valves

label

value

label

etim-class

value

EC011463 Regulating valve

label

Housing material

value

Brass

label

Material quality

value

CuZn38As (CW511L)

label

Surface protection

value

Untreated

label

Connection 1

value

Internal thread cylindrical BSPT-Rp (ISO 7-1 / EN 10226-1)

label

With coupling connection 1

value

No

label

Connection 2

value

Internal thread cylindrical BSPT-Rp (ISO 7-1 / EN 10226-1)

label

With coupling connection 2

value

No

label

Article compression class

value

PN 25

label

Flange compression class

value

PN 25

label

Suitable for tap water

value

Yes

label

Suitable for hot tap water

value

Yes

label

Suitable for central heating water

value

Yes

label

Max. operating pressure

value

25bar

label

Max. operating pressure (imperial)

value

362.59psi

label

Medium temperature (continuous)

value

-10°C - 150°C

label

Medium temperature (continuous) (imperial)

value

14°F - 302°F

label

Suitable for manual operation

value

No

label

Thermostatic

value

No

label

Hydraulic balance control

value

Static

label

With drain valve

value

No

label

With thermometer

value

No

label

With position indicator

value

No

label

Spindle angle

value

90°

label

Spindle angle (imperial)

value

3.54"

label

With insulation

value

No
