Pegler Proflow static balancing valve

group: 1200

The Pegler Proflow 1200 is a fixed orifice commissioning valve with female threaded end connections. It is a wide range balancing valve with shut off function and fixed orifice (FODRV). The robust grip handle provides easy control. The numeric position indicator and memory stop assures optimal adjustment to the design flow. Type 1200 valves are part of the Pegler Proflow system and are available in ¼” - 2” and are standard flow valves.
  • Fixed orifice
  • Easy turn grip handle with numeric position indicator
  • Grip handle with memory stop
  • Compact design
  • read more
    read less
    if the download did not start automatically, click here

    PDF generation failed, please try again later

    applications

    potable water

    potable water

    heating

    heating

    cooling

    cooling

    segments

    commercial building

    commercial building

    industry

    industry

    approvals

    WRAS

    WRAS

    item number

    size

    d1

    DN1

    l1

    z1

    slw1

    d2

    DN2

    l2

    z2

    slw2

    M

    H

    Y

    V

    U

    a

    item number

    126002

    size

    G1/2" (DN15) SF

    d1

    21.3

    DN1

    1/2" (DN15)

    l1

    36

    z1

    30

    slw1

    23

    d2

    21.3

    DN2

    1/2" (DN15)

    l2

    38

    z2

    30

    slw2

    23

    M

    89

    H

    92

    Y

    38

    V

    34

    U

    27

    a

    55

    item number

    126003

    size

    G3/4" (DN20) SF

    d1

    26.7

    DN1

    3/4" (DN20)

    l1

    34

    z1

    33

    slw1

    32

    d2

    26.7

    DN2

    3/4" (DN20)

    l2

    43

    z2

    33

    slw2

    32

    M

    89

    H

    96

    Y

    38

    V

    36

    U

    26

    a

    55

    item number

    126004

    size

    G1" (DN25) SF

    d1

    33.4

    DN1

    1" (DN25)

    l1

    44

    z1

    34

    slw1

    39

    d2

    33.4

    DN2

    1" (DN25)

    l2

    51

    z2

    34

    slw2

    39

    M

    89

    H

    108

    Y

    38

    V

    45

    U

    30

    a

    55

    item number

    126005

    size

    G1 1/4" (DN32) SF

    d1

    42.2

    DN1

    1 1/4" (DN32)

    l1

    50

    z1

    47

    slw1

    50

    d2

    42.2

    DN2

    1 1/4" (DN32)

    l2

    66

    z2

    47

    slw2

    50

    M

    89

    H

    126

    Y

    38

    V

    58

    U

    42

    a

    55

    item number

    126006

    size

    G1 1/2" (DN40) SF

    d1

    48.3

    DN1

    1 1/2" (DN40)

    l1

    52

    z1

    50

    slw1

    55

    d2

    48.3

    DN2

    1 1/2" (DN40)

    l2

    67

    z2

    50

    slw2

    55

    M

    89

    H

    132

    Y

    38

    V

    61

    U

    50

    a

    55

    item number

    126007

    size

    G2" (DN50) SF

    d1

    60.3

    DN1

    2" (DN50)

    l1

    69

    z1

    66

    slw1

    70

    d2

    60.3

    DN2

    2" (DN50)

    l2

    87

    z2

    66

    slw2

    70

    M

    89

    H

    151

    Y

    38

    V

    78

    U

    57

    a

    55

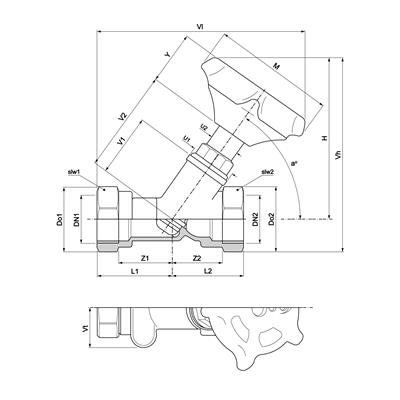

    technical drawing for product

    characteristics

    color

    bronze

    materials

    bronze (EN CC491K)

    finishing

    none

    shape

    straight (0º)

    connection type

    G - female thread gas cylindrical (BSPP)

    pressure rating (PN)

    PN 20

    sealing

    EPDM

    general

    product group

    valves (static balancing valves)

    ETIM class

    EC011463 Regulating valve

    HS code

    84818099

    brand

    Pegler

    series

    ProFlow Static

    product type

    1200

    UNSPS

    40141609

    technical

    max operating pressure liquid

    20 bar

    min. medium temperature

    -10 °C

    max medium temperature

    120 °C

    peak medium temperature

    120 °C

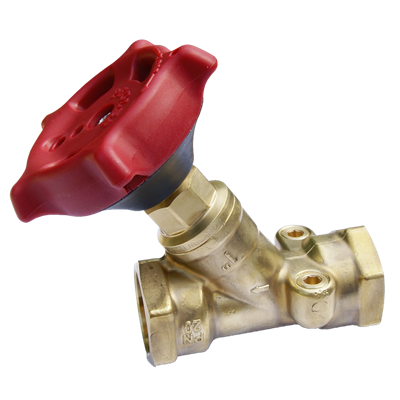

    image for 1200

    image | png

    1200

    image for Diagram

    diagram | jpg

    Diagram

    certifications | pdf

    WRAS_2203049

    label

    value

    label

    ETIM class

    label

    Housing material

    value

    Brass

    label

    Surface protection

    value

    Untreated

    label

    Connection 1

    value

    Internal thread cylindrical BSPP-G (ISO 228-1)

    label

    With coupling connection 1

    value

    No

    label

    Connection 2

    value

    Internal thread cylindrical BSPP-G (ISO 228-1)

    label

    With coupling connection 2

    value

    No

    label

    Article compression class

    value

    PN 20

    label

    Suitable for tap water

    value

    Yes

    label

    Suitable for hot tap water

    value

    Yes

    label

    Suitable for central heating water

    value

    Yes

    label

    Max. operating pressure

    value

    20bar

    label

    Max. operating pressure (imperial)

    value

    290.08psi

    label

    Medium temperature (continuous)

    value

    -10°C - 120°C

    label

    Medium temperature (continuous) (imperial)

    value

    14°F - 248°F

    label

    Suitable for manual operation

    value

    No

    label

    Thermostatic

    value

    No

    label

    Hydraulic balance control

    value

    Static

    label

    With drain valve

    value

    No

    label

    With thermometer

    value

    No

    label

    With position indicator

    value

    Yes

    label

    Height operating element

    value

    38mm

    label

    Height operating element (imperial)

    value

    1.5"

    label

    Diameter handwheel

    value

    89mm

    label

    Diameter handwheel (imperial)

    value

    3.5"

    label

    Spindle angle

    value

    55°

    label

    With insulation

    value

    No

    item number

    carbon footprint (A-C) embodied carbon

    data source

    item number

    126002

    carbon footprint (A-C) embodied carbon

    2.1kgCO2e

    data source

    TM65

    item number

    126003

    carbon footprint (A-C) embodied carbon

    2.36kgCO2e

    data source

    TM65

    item number

    126004

    carbon footprint (A-C) embodied carbon

    3.52kgCO2e

    data source

    TM65

    item number

    126005

    carbon footprint (A-C) embodied carbon

    6.07kgCO2e

    data source

    TM65

    item number

    126006

    carbon footprint (A-C) embodied carbon

    7kgCO2e

    data source

    TM65

    item number

    126007

    carbon footprint (A-C) embodied carbon

    12.54kgCO2e

    data source

    TM65
