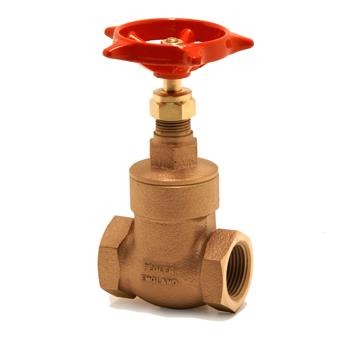

Bronze Full Bore Gate Valve

group: 1072

Pegler Valve type 1072 is a bronze full way gate valve these valves have non-rising internal threaded stems and use a wheel handle making them easy to operate, it valve has female threaded connections and is available in sizes ½” to 2”
  • all variants WRAS and KIWA approved

  • operating Temperature Between -10°C and 180°C
  • PN32 pressure rated
  • Compact design
  • read more
    read less
    if the download did not start automatically, click here

    PDF generation failed, please try again later

    applications

    potable water

    potable water

    heating

    heating

    cooling

    cooling

    steam

    steam

    segments

    commercial building

    commercial building

    industry

    industry

    approvals

    no approvals available

    item number

    size

    dimensions

    weight

    packaging

    gtin

    item number

    101143

    size

    NPT1/2

    dimensions

    50x65x120 mm

    weight

    0.49 kg

    packaging

    box (5 pce)

    gtin

    05022050242969

    item number

    101128

    size

    G2

    dimensions

    75x105x240 mm

    weight

    3.44 kg

    packaging

    box (2 pce)

    gtin

    05013866050824

    item number

    size

    DN1

    l1

    z1

    slw1

    DN2

    l2

    z2

    slw2

    M

    H

    Y

    V

    U

    D1

    a

    item number

    101143

    size

    NPT1/2

    DN1

    1/2" (DN15)

    l1

    26

    z1

    16

    slw1

    29

    DN2

    1/2" (DN15)

    l2

    26

    z2

    16

    slw2

    29

    M

    62

    H

    85

    Y

    11

    V

    66

    U

    40

    D1

    25

    a

    90

    item number

    101128

    size

    G2

    DN1

    2" (DN50)

    l1

    45

    z1

    27

    slw1

    67

    DN2

    2" (DN50)

    l2

    45

    z2

    27

    slw2

    67

    M

    108

    H

    170

    Y

    20

    V

    117

    U

    81

    D1

    83

    a

    90

    technical drawing for product

    characteristics

    color

    bronze

    materials

    bronze (EN CC491K)

    finishing

    none

    shape

    straight

    pressure rating (PN)

    PN 32

    sealing

    PTFE

    general

    product group

    valves (gate valves)

    ETIM class

    EC010163 Gate valve

    HS code

    84818069

    brand

    Pegler

    series

    Gate Valve

    UNSPS

    40141613

    technical

    max operating pressure liquid

    32 bar

    min. medium temperature

    -10 °C

    max medium temperature

    180 °C

    peak medium temperature

    180 °C

    Kvs-value

    value depends on the item view items

    image for 1072

    image | jpg

    1072

    image for Diagram

    diagram | jpg

    Diagram

    Other document | pdf

    Pegler Valve Installation Instructions

    label

    value

    label

    ETIM class

    label

    Housing material

    value

    Bronze

    label

    With coupling connection 1

    value

    No

    label

    With coupling connection 2

    value

    No

    label

    Article compression class

    value

    PN 32

    label

    FM quality mark

    value

    No

    label

    UL quality mark

    value

    No

    label

    ULC quality mark

    value

    No

    label

    LPCB quality mark

    value

    No

    label

    Medium temperature (continuous)

    value

    -10°C - 180°C

    label

    Medium temperature (continuous) (imperial)

    value

    14°F - 356°F

    label

    Surface protection

    value

    Untreated

    label

    Operation

    value

    Hand wheel

    label

    With position indicator

    value

    No

    label

    Spindle and/or hand wheel rising

    value

    No

    label

    With waste fitting

    value

    No

    label

    VdS quality mark

    value

    No

    label

    KIWA certified

    value

    No

    label

    Gastec QA mark

    value

    No

    label

    Gastec QA - AR 214 (H2)

    value

    No

    item number

    carbon footprint (A-C) embodied carbon

    data source

    item number

    101143

    carbon footprint (A-C) embodied carbon

    3.75kgCO2e

    data source

    TM65

    item number

    101128

    carbon footprint (A-C) embodied carbon

    27.38kgCO2e

    data source

    TM65
