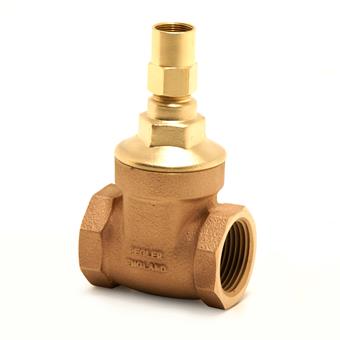

Pegler Gate Valve (2 x female thread)

group: 1070/125LS

Pegler Valve type 1070/125LS is a bronze full way gate valve designed for preventing back flow in pipework, these valves have non-rising internal threaded stems and come complete with a lock shield for easy operation using a key, this valve has internal threaded connections and is available in sizes ½”-2”
  • all variants WRAS approved

  • Operating Temperature Between -10°C and 180°C
  • 20 bar Max. Working Pressure
  • Key Operated Lock Shield
  • Compact design
  • read more
    read less
    if the download did not start automatically, click here

    PDF generation failed, please try again later

    applications

    potable water

    potable water

    heating

    heating

    cooling

    cooling

    steam

    steam

    segments

    commercial building

    commercial building

    industry

    industry

    approvals

    KIWA

    KIWA

    WRAS

    WRAS

    item number

    size

    dimensions

    weight

    packaging

    gtin

    item number

    103057

    size

    Rp1/2

    dimensions

    30x55x90 mm

    weight

    0.29 kg

    packaging

    box (10 pce)

    gtin

    05022050243829

    item number

    103058

    size

    Rp3/4

    dimensions

    40x55x100 mm

    weight

    0.43 kg

    packaging

    box (5 pce)

    gtin

    05022050243874

    item number

    103059

    size

    Rp1

    dimensions

    50x65x120 mm

    weight

    0.67 kg

    packaging

    box (5 pce)

    gtin

    05022050243935

    item number

    103060

    size

    Rp1 1/4

    dimensions

    55x75x130 mm

    weight

    0.98 kg

    packaging

    box (2 pce)

    gtin

    05022050243980

    item number

    103061

    size

    Rp1 1/2

    dimensions

    65x75x155 mm

    weight

    1.29 kg

    packaging

    box (2 pce)

    gtin

    05022050244048

    item number

    103062

    size

    Rp2

    dimensions

    80x90x190 mm

    weight

    2.28 kg

    packaging

    box (2 pce)

    gtin

    05022050244093

    item number

    size

    d1

    DN1

    l1

    z1

    slw1

    d2

    DN2

    l2

    z2

    slw2

    M

    H

    Y

    V

    U

    a

    item number

    103057

    size

    Rp1/2

    d1

    34.0

    DN1

    1/2" (DN15)

    l1

    26

    z1

    16

    slw1

    29

    d2

    34.0

    DN2

    1/2" (DN15)

    l2

    26

    z2

    16

    slw2

    29

    M

    15

    H

    75

    Y

    11

    V

    66

    U

    38

    a

    90

    item number

    103058

    size

    Rp3/4

    d1

    40.0

    DN1

    3/4" (DN20)

    l1

    28

    z1

    17

    slw1

    35

    d2

    40.0

    DN2

    3/4" (DN20)

    l2

    28

    z2

    17

    slw2

    35

    M

    18

    H

    85

    Y

    12

    V

    72

    U

    43

    a

    90

    item number

    103059

    size

    Rp1

    d1

    46.0

    DN1

    1" (DN25)

    l1

    33

    z1

    20

    slw1

    40

    d2

    46.0

    DN2

    1" (DN25)

    l2

    33

    z2

    20

    slw2

    40

    M

    20

    H

    100

    Y

    14

    V

    82

    U

    50

    a

    90

    item number

    103060

    size

    Rp1 1/4

    d1

    55.0

    DN1

    1 1/4" (DN32)

    l1

    37

    z1

    22

    slw1

    48

    d2

    55.0

    DN2

    1 1/4" (DN32)

    l2

    37

    z2

    22

    slw2

    48

    M

    24

    H

    110

    Y

    16

    V

    92

    U

    58

    a

    90

    item number

    103061

    size

    Rp1 1/2

    d1

    65.0

    DN1

    1 1/2" (DN40)

    l1

    38

    z1

    23

    slw1

    56

    d2

    65.0

    DN2

    1 1/2" (DN40)

    l2

    38

    z2

    23

    slw2

    56

    M

    28

    H

    130

    Y

    18

    V

    101

    U

    66

    a

    90

    item number

    103062

    size

    Rp2

    d1

    78.0

    DN1

    2" (DN50)

    l1

    45

    z1

    27

    slw1

    67

    d2

    78.0

    DN2

    2" (DN50)

    l2

    45

    z2

    27

    slw2

    67

    M

    34

    H

    155

    Y

    20

    V

    117

    U

    78

    a

    90

    technical drawing for product

    characteristics

    color

    bronze

    materials

    bronze (EN CC499K)

    finishing

    none

    shape

    straight (0º)

    connection type

    Rc - female thread gas conical (BSPT)

    pressure rating (PN)

    PN 20

    sealing

    PTFE

    general

    product group

    valves (gate valves)

    ETIM class

    EC010163 Gate valve

    HS code

    84818069

    brand

    Pegler

    series

    Gate Valve

    product type

    1070/125LS

    UNSPS

    40141613

    technical

    max operating pressure liquid

    20 bar

    min. medium temperature

    -10 °C

    max medium temperature

    180 °C

    peak medium temperature

    180 °C

    Kvs-value

    value depends on the item view items

    image for 1070125LS

    image | jpg

    1070125LS

    image for Diagram

    diagram | jpg

    Diagram

    certifications | pdf

    Pegler Gate Valve Kiwa

    certifications | pdf

    WRAS_Certificate_1070_125_Gate_Valves

    label

    value

    label

    ETIM class

    label

    Housing material

    value

    Bronze

    label

    Connection 1

    value

    Internal thread conical BSPT-Rc (ISO 7-1 / EN 10226-1)

    label

    With coupling connection 1

    value

    No

    label

    Connection 2

    value

    Internal thread conical BSPT-Rc (ISO 7-1 / EN 10226-1)

    label

    With coupling connection 2

    value

    No

    label

    Article compression class

    value

    PN 20

    label

    FM quality mark

    value

    No

    label

    UL quality mark

    value

    No

    label

    ULC quality mark

    value

    No

    label

    LPCB quality mark

    value

    No

    label

    Medium temperature (continuous)

    value

    -10°C - 180°C

    label

    Medium temperature (continuous) (imperial)

    value

    14°F - 356°F

    label

    Surface protection

    value

    Untreated

    label

    Operation

    value

    Key

    label

    With position indicator

    value

    No

    label

    Spindle and/or hand wheel rising

    value

    No

    label

    With waste fitting

    value

    No

    label

    VdS quality mark

    value

    No

    label

    KIWA certified

    value

    Yes

    label

    Gastec QA mark

    value

    No

    label

    Gastec QA - AR 214 (H2)

    value

    No

    item number

    carbon footprint (A-C) embodied carbon

    data source

    item number

    103057

    carbon footprint (A-C) embodied carbon

    1.76kgCO2e

    data source

    TM65

    item number

    103058

    carbon footprint (A-C) embodied carbon

    2.61kgCO2e

    data source

    TM65

    item number

    103059

    carbon footprint (A-C) embodied carbon

    4.03kgCO2e

    data source

    TM65

    item number

    103060

    carbon footprint (A-C) embodied carbon

    5.97kgCO2e

    data source

    TM65

    item number

    103061

    carbon footprint (A-C) embodied carbon

    8.04kgCO2e

    data source

    TM65

    item number

    103062

    carbon footprint (A-C) embodied carbon

    13.53kgCO2e

    data source

    TM65
