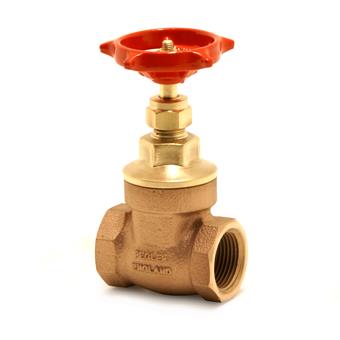

Pegler Gate Valve (2 x female thread)

group: 1070/125

Pegler Valve type 1070/125 is a bronze full way gate valve designed for preventing back flow in pipework, these valves have non-rising internal threaded stems and use a wheel handle making them easy to operate, this valve has internal threaded connections and is available in sizes ½”-4”

  • all variants WRAS approved

  • Operating Temperature Between -10°C and 180°C
  • 20 bar Max. Working Pressure
  • Compact design
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

heating

heating

cooling

cooling

steam

steam

segments

commercial building

commercial building

industry

industry

approvals

KIWA

KIWA

WRAS

WRAS

item number

size

d1

DN1

l1

z1

slw1

d2

DN2

l2

z2

slw2

M

H

Y

V

U

a

item number

103007

size

Rp 1/2

d1

34.0

DN1

1/2" (DN15)

l1

26

z1

16

slw1

29

d2

34.0

DN2

1/2" (DN15)

l2

26

z2

16

slw2

29

M

62

H

85

Y

11

V

66

U

38

a

90

item number

103008

size

Rp3/4

d1

40.0

DN1

3/4" (DN20)

l1

28

z1

17

slw1

35

d2

40.0

DN2

3/4" (DN20)

l2

28

z2

17

slw2

35

M

67

H

95

Y

12

V

72

U

43

a

90

item number

103009

size

Rp1

d1

46.0

DN1

1" (DN25)

l1

33

z1

20

slw1

40

d2

46.0

DN2

1" (DN25)

l2

33

z2

20

slw2

40

M

78

H

110

Y

14

V

82

U

50

a

90

item number

103010

size

Rp1 1/4

d1

55.0

DN1

1 1/4" (DN32)

l1

37

z1

22

slw1

48

d2

55.0

DN2

1 1/4" (DN32)

l2

37

z2

22

slw2

48

M

87

H

125

Y

16

V

92

U

58

a

90

item number

103011

size

Rp1 1/2

d1

65.0

DN1

1 1/2" (DN40)

l1

38

z1

23

slw1

56

d2

65.0

DN2

1 1/2" (DN40)

l2

38

z2

23

slw2

56

M

91

H

145

Y

18

V

101

U

66

a

90

item number

103012

size

Rp2

d1

78.0

DN1

2" (DN50)

l1

45

z1

27

slw1

67

d2

78.0

DN2

2" (DN50)

l2

45

z2

27

slw2

67

M

108

H

170

Y

20

V

117

U

78

a

90

item number

103013

size

Rp2 1/2

d1

96.0

DN1

2 1/2" (DN65)

l1

51

z1

31

slw1

83

d2

96.0

DN2

2 1/2" (DN65)

l2

51

z2

31

slw2

83

M

122

H

205

Y

20

V

137

U

95

a

90

item number

103014

size

Rp3

d1

115.0

DN1

3" (DN80)

l1

57

z1

34

slw1

100

d2

115.0

DN2

3" (DN80)

l2

57

z2

34

slw2

100

M

136

H

240

Y

20

V

156

U

111

a

90

item number

103015

size

Rp4

d1

140.0

DN1

4" (DN100)

l1

67

z1

40

slw1

121

d2

140.0

DN2

4" (DN100)

l2

67

z2

40

slw2

121

M

160

H

290

Y

20

V

185

U

134

a

90

item number

size

Y

V

U

a

Rp 1/2

11

66

38

90

Rp3/4

12

72

43

90

Rp1

14

82

50

90

Rp1 1/4

16

92

58

90

Rp1 1/2

18

101

66

90

Rp2

20

117

78

90

Rp2 1/2

20

137

95

90

Rp3

20

156

111

90

Rp4

20

185

134

90

technical drawing for product

characteristics

color

bronze

materials

bronze (EN CC499K)

finishing

none

manufacturer

Aalberts integrated piping systems Ltd (Pegler)

shape

straight (0º)

connection type

Rc - female thread gas conical (BSPT)

pressure rating (PN)

PN 20

sealing

PTFE

general

product group

valves (gate valves)

ETIM class

EC010163 Gate valve

HS code

84818069

brand

Pegler

series

Gate Valve

product type

1070/125

UNSPS

40141613

label

value

label

ETIM class

label

Housing material

value

Bronze

label

Connection 1

value

Internal thread conical BSPT-Rc (ISO 7-1 / EN 10226-1)

label

With coupling connection 1

value

No

label

Connection 2

value

Internal thread conical BSPT-Rc (ISO 7-1 / EN 10226-1)

label

With coupling connection 2

value

No

label

Article compression class

value

PN 20

label

FM quality mark

value

No

label

UL quality mark

value

No

label

ULC quality mark

value

No

label

LPCB quality mark

value

No

label

Medium temperature (continuous)

value

-10°C - 180°C

label

Medium temperature (continuous) (imperial)

value

14°F - 356°F

label

Surface protection

value

Untreated

label

Operation

value

Hand wheel

label

With position indicator

value

No

label

Spindle and/or hand wheel rising

value

No

label

With waste fitting

value

No

label

VdS quality mark

value

No

label

KIWA certified

value

Yes

label

Gastec QA mark

value

No

label

Gastec QA - AR 214 (H2)

value

No
