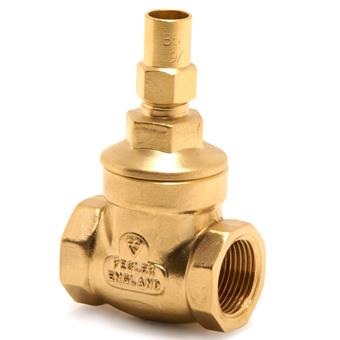

Pegler Gate Valve (2 x female thread)

group: 1068LS

The 1068 valves are  compact, easy to operate, gate valves in the Pegler range and are designed for long, trouble free service. These valves provide an ideal means of isolating a range of fluids or gases in pipe lines.
  • PN20
  • full bore
  • metal seated
  • inside screw and non rising stem
  • With Lockshield
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

heating

heating

cooling

cooling

segments

commercial building

commercial building

industry

industry

approvals

BSI Kitemark

BSI Kitemark

WRAS

WRAS

item number

size

d1

DN1

l1

z1

slw1

d2

DN2

l2

z2

slw2

M

H

Y

V

U

a

item number

203067

size

Rp1/2 (DN15)

d1

34.0

DN1

DN15

l1

26

z1

16

slw1

29

d2

34.0

DN2

DN15

l2

26

z2

16

slw2

15

M

15

H

75

Y

11

V

66

U

38

a

90

item number

203068

size

Rp3/4 (DN100)

d1

40.0

DN1

DN20

l1

28

z1

17

slw1

35

d2

40.0

DN2

DN20

l2

28

z2

17

slw2

17

M

18

H

85

Y

12

V

72

U

43

a

90

item number

203069

size

Rp1 (DN25)

d1

46.0

DN1

DN25

l1

33

z1

20

slw1

40

d2

46.0

DN2

DN25

l2

33

z2

20

slw2

20

M

20

H

100

Y

14

V

82

U

50

a

90

item number

203070

size

Rp1 1/4 (DN32)

d1

55.0

DN1

DN32

l1

37

z1

22

slw1

48

d2

55.0

DN2

DN32

l2

37

z2

22

slw2

24

M

24

H

110

Y

16

V

92

U

58

a

90

item number

203071

size

Rp1 1/2 (DN40)

d1

65.0

DN1

DN40

l1

38

z1

23

slw1

56

d2

65.0

DN2

DN40

l2

38

z2

23

slw2

28

M

28

H

130

Y

18

V

101

U

66

a

90

item number

203072

size

Rp2 (DN50)

d1

78.0

DN1

DN50

l1

45

z1

27

slw1

67

d2

78.0

DN2

DN50

l2

45

z2

27

slw2

34

M

34

H

155

Y

20

V

117

U

78

a

90

item number

size

Y

V

U

a

Rp1/2 (DN15)

11

66

38

90

Rp3/4 (DN100)

12

72

43

90

Rp1 (DN25)

14

82

50

90

Rp1 1/4 (DN32)

16

92

58

90

Rp1 1/2 (DN40)

18

101

66

90

Rp2 (DN50)

20

117

78

90

technical drawing for product

characteristics

color

brass

materials

brass (CW617N)

finishing

none

manufacturer

Aalberts integrated piping systems Ltd (Pegler)

shape

straight (0º)

connection type

Rc - female thread gas conical (BSPT)

pressure rating (PN)

PN 20

sealing

PTFE

general

product group

valves (gate valves)

ETIM class

EC010163 Gate valve

HS code

84818069

brand

Pegler

series

Gate Valve

product type

1068LS

UNSPS

40141613

label

value

label

ETIM class

label

Housing material

value

Brass

label

Material quality

value

CuZn40Pb2 (CW617N)

label

Connection 1

value

Internal thread conical BSPT-Rc (ISO 7-1 / EN 10226-1)

label

With coupling connection 1

value

No

label

Connection 2

value

Internal thread conical BSPT-Rc (ISO 7-1 / EN 10226-1)

label

With coupling connection 2

value

No

label

Article compression class

value

PN 20

label

FM quality mark

value

No

label

UL quality mark

value

No

label

ULC quality mark

value

No

label

LPCB quality mark

value

No

label

Medium temperature (continuous)

value

-10°C - 180°C

label

Medium temperature (continuous) (imperial)

value

14°F - 356°F

label

Surface protection

value

Untreated

label

Operation

value

Key

label

With position indicator

value

No

label

Spindle and/or hand wheel rising

value

No

label

With waste fitting

value

No

label

VdS quality mark

value

No

label

KIWA certified

value

No

label

Gastec QA mark

value

No

label

Gastec QA - AR 214 (H2)

value

No
