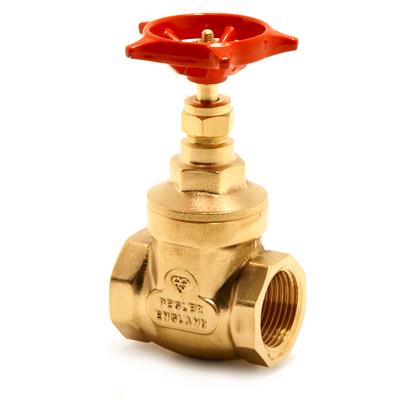

group: 1068AT
Kitemarked and WRAS approved (up to 85°C)
potable water
heating
cooling
utility
industry
UK water regulation 4
BSI Kitemark KM 06045
BSI Kitemark KM 628350
item number
size
dimensions
weight
packaging
gtin
item number
size
-
dimensions
55x55x100 mm
weight
0.3 kg
packaging
Box (10 pce)
gtin
05022050233943
item number
size
-
dimensions
20x55x110 mm
weight
0.48 kg
packaging
Box (10 pce)
gtin
05022050233981
item number
size
-
dimensions
65x65x130 mm
weight
0.73 kg
packaging
Box (5 pce)
gtin
05022050234025
item number
size
-
dimensions
70x70x150 mm
weight
1.06 kg
packaging
Box (5 pce)
gtin
05022050234063
item number
size
-
dimensions
30x80x175 mm
weight
1.35 kg
packaging
Box (2 pce)
gtin
05022050234100
item number
size
-
dimensions
95x95x210 mm
weight
2.4 kg
packaging
Box (2 pce)
gtin
05022050234148
item number
size
-
dimensions
40x100x250 mm
weight
3.78 kg
packaging
Bag (1 pce)
gtin
05022050233431
item number
size
-
dimensions
40x115x300 mm
weight
5.23 kg
packaging
Bag (1 pce)
gtin
05022050233493
item number
size
-
dimensions
40x150x360 mm
weight
9.28 kg
packaging
Bag (1 pce)
gtin
05022050233554

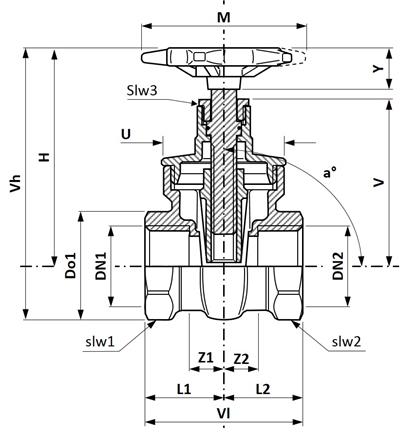

item number
size
d1
DN1
l1
z1
slw1
d2
DN2
l2
z2
slw2
M
H
Y
V
U
a
item number
203027size
d1
34.0
DN1
1/2"
l1
26
z1
16
slw1
29
d2
34.0
DN2
1/2"
l2
26
z2
16
slw2
15
M
62
H
85
Y
11
V
66
U
38
a
90
item number
203028size
d1
40.0
DN1
3/4"
l1
28
z1
17
slw1
35
d2
40.0
DN2
3/4"
l2
28
z2
17
slw2
17
M
67
H
95
Y
12
V
72
U
43
a
90
item number
203029size
d1
46.0
DN1
1"
l1
33
z1
20
slw1
40
d2
46.0
DN2
1"
l2
33
z2
20
slw2
20
M
78
H
110
Y
14
V
82
U
50
a
90
item number
203030size
d1
55.0
DN1
1-1/4"
l1
37
z1
22
slw1
48
d2
55.0
DN2
1-1/4"
l2
37
z2
22
slw2
24
M
87
H
125
Y
16
V
92
U
58
a
90
item number
203031size
d1
65.0
DN1
1-1/2"
l1
38
z1
23
slw1
56
d2
65.0
DN2
1-1/2"
l2
38
z2
23
slw2
28
M
91
H
145
Y
18
V
101
U
66
a
90
item number
203032size
d1
78.0
DN1
2"
l1
45
z1
27
slw1
67
d2
78.0
DN2
2"
l2
45
z2
27
slw2
34
M
108
H
170
Y
20
V
117
U
78
a
90
item number
203033size
d1
96.0
DN1
2-1/2"
l1
51
z1
31
slw1
83
d2
96.0
DN2
2-1/2"
l2
51
z2
31
slw2
42
M
122
H
205
Y
20
V
137
U
95
a
90
item number
203034size
d1
115.0
DN1
3"
l1
57
z1
34
slw1
100
d2
115.0
DN2
3"
l2
57
z2
34
slw2
50
M
136
H
240
Y
20
V
156
U
111
a
90
item number
203035size
d1
140.0
DN1
4"
l1
67
z1
40
slw1
121
d2
140.0
DN2
4"
l2
67
z2
40
slw2
61
M
160
H
290
Y
20
V
185
U
134
a
90
color
brass
materials
brass (CW617N, CC754S)
finishing
none
shape
straight (0º)
connection type
FPT - female thread conical (NPT)
pressure rating (PN)
PN 20
sealing
PTFE
product group
valves (gate valves)
ETIM class
EC010163 Gate valve
HS code
84818069
brand
Pegler
series
Gate Valve
product type
1068AT
UNSPS
40141613
max operating pressure liquid
20 bar
min. medium temperature
-10 cel
max medium temperature
180 cel
peak medium temperature
180 cel
Kvs-value
label
value
label
ETIM class
value
label
Housing material
value
Brass
label
Connection 1
value
Internal thread conical (NPT)
label
With coupling connection 1
value
No
label
Connection 2
value
Internal thread conical (NPT)
label
With coupling connection 2
value
No
label
Article compression class
value
PN 20
label
FM quality mark
value
No
label
UL quality mark
value
No
label
ULC quality mark
value
No
label
LPCB quality mark
value
No
label
Medium temperature (continuous)
value
-10°C - 180°C
label
Medium temperature (continuous) (imperial)
value
14°F - 356°F
label
Surface protection
value
Untreated
label
Operation
value
Hand wheel
label
With position indicator
value
No
label
Spindle and/or hand wheel rising
value
No
label
With waste fitting
value
No
label
VdS quality mark
value
No
label
KIWA certified
value
No
label
Gastec QA mark
value
No
label
Gastec QA - AR 214 (H2)
value
No
