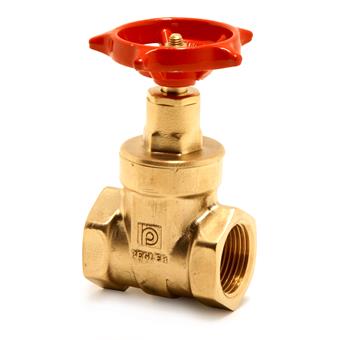

group: 1065AT
potable water
heating
cooling
utility
industry
no approvals available
item number
size
dimensions
weight
packaging
gtin
item number
size
-
dimensions
20x45x85 mm
weight
0.27 kg
packaging
Box (10 pce)
gtin
05022050233783
item number
size
-
dimensions
20x50x95 mm
weight
0.37 kg
packaging
Box (10 pce)
gtin
05022050233820
item number
size
-
dimensions
20x55x120 mm
weight
0.57 kg
packaging
Box (5 pce)
gtin
05022050233868
item number
size
-
dimensions
30x65x140 mm
weight
0.98 kg
packaging
Box (5 pce)
gtin
05022050233905
item number
size
-
dimensions
35x70x160 mm
weight
1.18 kg
packaging
Box (2 pce)
gtin
05022050290380
item number
size
-
dimensions
30x80x200 mm
weight
2.08 kg
packaging
Box (2 pce)
gtin
05022050055125
item number
size
d1
DN1
l1
z1
slw1
d2
DN2
l2
z2
slw2
M
H
Y
V
U
a
item number
202042size
d1
31.0
DN1
1/2"
l1
23
z1
14
slw1
31
d2
31.0
DN2
1/2"
l2
23
z2
14
slw2
20
M
55
H
70
Y
15
V
29
U
26
a
90
item number
202043size
d1
38.0
DN1
3/4"
l1
24
z1
14
slw1
38
d2
38.0
DN2
3/4"
l2
24
z2
14
slw2
20
M
55
H
80
Y
16
V
34
U
33
a
90
item number
202044size
d1
46.0
DN1
1"
l1
29
z1
18
slw1
46
d2
46.0
DN2
1"
l2
29
z2
18
slw2
21
M
64
H
95
Y
19
V
41
U
41
a
90
item number
202045size
d1
59.0
DN1
1-1/4"
l1
32
z1
19
slw1
59
d2
59.0
DN2
1-1/4"
l2
32
z2
19
slw2
26
M
77
H
115
Y
19
V
57
U
49
a
90
item number
202046size
d1
65.0
DN1
1-1/2"
l1
35
z1
21
slw1
65
d2
65.0
DN2
1-1/2"
l2
35
z2
21
slw2
26
M
86
H
125
Y
20
V
65
U
55
a
90
item number
202047size
d1
80.0
DN1
2"
l1
43
z1
22
slw1
80
d2
80.0
DN2
2"
l2
43
z2
22
slw2
31
M
95
H
155
Y
25
V
88
U
67
a
90
color
brass
materials
brass (CW617N)
finishing
none
shape
straight
connection type
FPT - female thread conical (NPT)
pressure rating (PN)
PN 16
sealing
NBR (Nitrile)
product group
valves (gate valves)
ETIM class
EC010163 Gate valve
HS code
84818069
brand
Pegler
series
Gate Valve
product type
1065AT
UNSPS
40141613
max operating pressure liquid
17.5 bar
min. medium temperature
-10 cel
max medium temperature
85 cel
peak medium temperature
85 cel
Kvs-value
label
value
label
ETIM class
value
label
Housing material
value
Brass
label
Material quality
value
CuZn40Pb2 (CW617N)
label
Connection 1
value
Internal thread conical (NPT)
label
With coupling connection 1
value
No
label
Connection 2
value
Internal thread conical (NPT)
label
With coupling connection 2
value
No
label
Article compression class
value
PN 16
label
Flange compression class
value
PN 16
label
FM quality mark
value
No
label
UL quality mark
value
No
label
ULC quality mark
value
No
label
LPCB quality mark
value
No
label
Medium temperature (continuous)
value
-10°C - 85°C
label
Medium temperature (continuous) (imperial)
value
14°F - 185°F
label
Surface protection
value
Untreated
label
Operation
value
Hand wheel
label
With position indicator
value
No
label
Spindle and/or hand wheel rising
value
No
label
With waste fitting
value
No
label
VdS quality mark
value
No
label
KIWA certified
value
No
label
Gastec QA mark
value
No
label
Gastec QA - AR 214 (H2)
value
No
