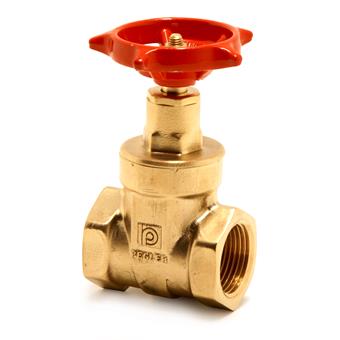

Pegler Gate Valve (2 x female thread)

group: 1065

Pegler Valve type 1065 Gate Valve is a forged brass full way gate valve which is wheel handle operated with threaded connections. It is an optimally designed valve ideal for isolating a range of fluid in a pipeline, available in sizes DN15-DN100.

  • Operates up to 93°C
  • Easy to operate wheel handle
  • Compact design
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

heating

heating

cooling

cooling

segments

commercial building

commercial building

industry

industry

approvals

no approvals available

item number

size

d1

DN1

l1

z1

slw1

d2

DN2

l2

z2

slw2

M

H

Y

V

U

a

item number

202007

size

Rc1/2

d1

31.0

DN1

DN15

l1

23

z1

14

slw1

31

d2

31.0

DN2

DN15

l2

23

z2

14

slw2

20

M

55

H

70

Y

15

V

29

U

26

a

90

item number

202008

size

Rc3/4

d1

38.0

DN1

DN20

l1

24

z1

14

slw1

38

d2

38.0

DN2

DN20

l2

24

z2

14

slw2

20

M

55

H

80

Y

16

V

34

U

33

a

90

item number

202009

size

Rc1

d1

46.0

DN1

DN25

l1

29

z1

18

slw1

46

d2

46.0

DN2

DN25

l2

29

z2

18

slw2

21

M

64

H

95

Y

19

V

41

U

41

a

90

item number

202010

size

Rc1 1/4

d1

59.0

DN1

DN32

l1

32

z1

19

slw1

59

d2

59.0

DN2

DN32

l2

32

z2

19

slw2

26

M

77

H

115

Y

19

V

57

U

49

a

90

item number

202011

size

Rc1 1/2

d1

65.0

DN1

DN40

l1

35

z1

21

slw1

65

d2

65.0

DN2

DN40

l2

35

z2

21

slw2

26

M

86

H

125

Y

20

V

65

U

55

a

90

item number

202012

size

Rc2

d1

80.0

DN1

DN50

l1

43

z1

22

slw1

80

d2

80.0

DN2

DN50

l2

43

z2

22

slw2

31

M

95

H

155

Y

25

V

88

U

67

a

90

item number

size

Y

V

U

a

Rc1/2

15

29

26

90

Rc3/4

16

34

33

90

Rc1

19

41

41

90

Rc1 1/4

19

57

49

90

Rc1 1/2

20

65

55

90

Rc2

25

88

67

90

technical drawing for product

characteristics

color

brass

materials

brass (CW617N)

finishing

none

manufacturer

Aalberts integrated piping systems Ltd (Pegler)

shape

straight

connection type

Rc - female thread gas conical (BSPT)

pressure rating (PN)

PN 16

sealing

NBR (Nitrile)

general

product group

valves (gate valves)

ETIM class

EC010163 Gate valve

HS code

84818069

brand

Pegler

series

Gate Valve

product type

1065

UNSPS

40141613

label

value

label

ETIM class

label

Housing material

value

Brass

label

Material quality

value

CuZn40Pb2 (CW617N)

label

Connection 1

value

Internal thread conical BSPT-Rc (ISO 7-1 / EN 10226-1)

label

With coupling connection 1

value

No

label

Connection 2

value

Internal thread conical BSPT-Rc (ISO 7-1 / EN 10226-1)

label

With coupling connection 2

value

No

label

Article compression class

value

PN 16

label

Flange compression class

value

PN 16

label

FM quality mark

value

No

label

UL quality mark

value

No

label

ULC quality mark

value

No

label

LPCB quality mark

value

No

label

Medium temperature (continuous)

value

-10°C - 85°C

label

Medium temperature (continuous) (imperial)

value

14°F - 185°F

label

Surface protection

value

Untreated

label

Operation

value

Hand wheel

label

With position indicator

value

No

label

Spindle and/or hand wheel rising

value

No

label

With waste fitting

value

No

label

VdS quality mark

value

No

label

KIWA certified

value

No

label

Gastec QA mark

value

No

label

Gastec QA - AR 214 (H2)

value

No
