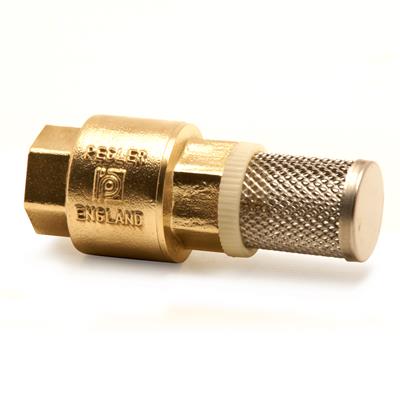

Brass Foot Valve

group: 1064AT

The Pegler Type 1064AT Forged Brass Check valves are designed for long trouble-free service and have Female American NPT Taper Thread connections. All our check valves are designed to prevent back flow of fluids in pipelines and are self-acting. They are used for low velocity liquid services to prevent a change to the direction of flow caused by back flow and are available in sizes ½” too 2”

  • ½” to 1” operating pressure 12bar

  • 1” to 2” operating pressure 10bar
  • Operating Temperature -10°C to 80°C
  • Forged Brass
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

heating

heating

cooling

cooling

segments

commercial building

commercial building

industry

industry

approvals

no approvals available

item number

size

d1

DN1

l1

z1

slw1

a

item number

124291

size

Rp1/2" (DN15)

d1

26.0

DN1

DN15

l1

24

z1

13

slw1

24

a

90

item number

124292

size

Rp3/4" (DN20)

d1

32.0

DN1

DN20

l1

29

z1

15

slw1

30

a

90

item number

124293

size

Rp1" (DN25)

d1

40.0

DN1

DN25

l1

29

z1

16

slw1

37

a

90

item number

124294

size

Rp1 1/4" (DN32)

d1

50.0

DN1

DN32

l1

33

z1

18

slw1

46

a

90

item number

124295

size

Rp1 1/2" (DN40)

d1

56.0

DN1

DN40

l1

38

z1

21

slw1

52

a

90

item number

124296

size

Rp2" (DN50)

d1

70.0

DN1

DN50

l1

35

z1

26

slw1

65

a

90

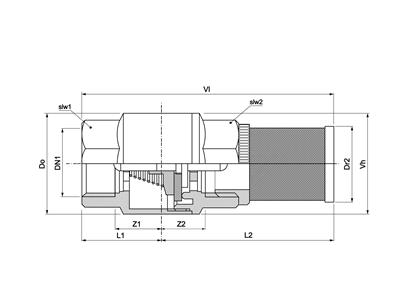

technical drawing for product

characteristics

color

brass

materials

plastic, brass (CW617N, ABS)

finishing

none

manufacturer

Aalberts integrated piping systems Ltd (Pegler)

shape

straight (0º)

connection type

Rp - female thread cylindrical (BSPT)

pressure rating (PN)

PN 8

sealing

EPDM, NBR (Nitrile)

general

product group

valves (check valves)

ETIM class

EC011457 Foot valve

HS code

84813099

brand

Pegler

series

Check Valve

product type

1064AT

UNSPS

40141643

label

value

label

ETIM class

label

Connection 1

value

Internal thread cylindrical BSPT-Rp (ISO 7-1 / EN 10226-1)

label

Surface protection

value

Untreated
