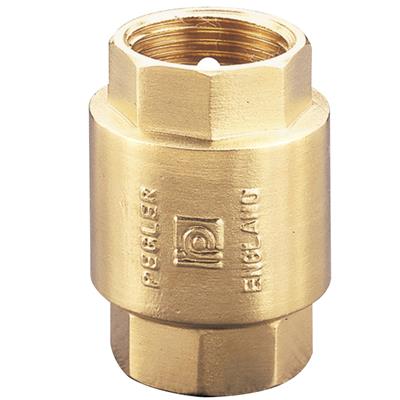

Pegler Check Valve Spring Type

group: 1063PT

The Pegler Type 1063PT Forged Brass Check valves are designed for long trouble-free service and have Female Parallel Threaded connections. All our check valves are designed to prevent back flow of fluids in pipelines and are self-acting. They are used for low velocity liquid services to prevent a change to the direction of flow caused by back flow and are available in sizes ½” too 4”

  • ½” to 1” operating pressure 12bar

  • 1” to 2” operating pressure 10bar
  • 2” to 4” operating pressure 8bar
  • Operating Temperature -10°C to 80°C
  • Forged Brass
  • ISO 228 (BS 2779) parallel thread
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

heating

heating

cooling

cooling

segments

commercial building

commercial building

industry

industry

approvals

no approvals available

item number

size

d1

DN1

l1

z1

slw1

d2

DN2

l2

z2

slw2

H

a

item number

124121

size

G1/2" (DN15)

d1

28.0

DN1

DN15

l1

25

z1

17

slw1

28

d2

28.0

DN2

DN15

l2

25

z2

17

slw2

28

H

16

a

90

item number

124122

size

G3/4" (DN20)

d1

35.0

DN1

DN20

l1

29

z1

19

slw1

35

d2

35.0

DN2

DN20

l2

29

z2

19

slw2

35

H

17

a

90

item number

124123

size

G1" (DN25)

d1

40.0

DN1

DN25

l1

30

z1

20

slw1

40

d2

40.0

DN2

DN25

l2

30

z2

20

slw2

40

H

23

a

90

item number

124124

size

G1 1/4" (DN32)

d1

50.0

DN1

DN32

l1

33

z1

22

slw1

50

d2

50.0

DN2

DN32

l2

33

z2

22

slw2

50

H

28

a

90

item number

124125

size

G1 1/2" (DN40)

d1

57.0

DN1

DN40

l1

38

z1

25

slw1

57

d2

57.0

DN2

DN40

l2

38

z2

25

slw2

57

H

34

a

90

item number

124126

size

G2" (DN50)

d1

70.0

DN1

DN50

l1

43

z1

29

slw1

70

d2

70.0

DN2

DN50

l2

43

z2

29

slw2

70

H

39

a

90

item number

124127

size

G2 1/2" (DN65)

d1

87.0

DN1

DN65

l1

50

z1

33

slw1

87

d2

87.0

DN2

DN65

l2

50

z2

33

slw2

87

H

49

a

90

item number

124128

size

G3" (DN80)

d1

95.0

DN1

DN80

l1

55

z1

30

slw1

95

d2

95.0

DN2

DN80

l2

55

z2

30

slw2

95

H

56

a

90

item number

124129

size

G4" (DN100)

d1

129.0

DN1

DN100

l1

57

z1

38

slw1

129

d2

129.0

DN2

DN100

l2

57

z2

38

slw2

129

H

69

a

90

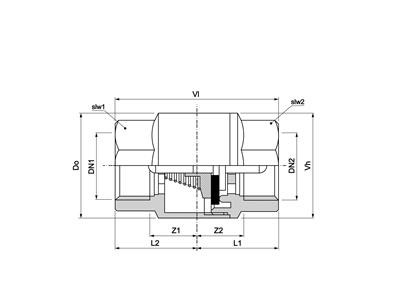

technical drawing for product

characteristics

color

brass

materials

plastic, brass (CW617N, ABS)

finishing

none

manufacturer

Aalberts integrated piping systems Ltd (Pegler)

shape

straight (0º)

connection type

G - female thread gas cylindrical (BSPP)

pressure rating (PN)

PN 8

sealing

EPDM, NBR (Nitrile)

general

product group

valves (check valves)

ETIM class

EC011469 Check valve

HS code

84813099

brand

Pegler

series

Check Valve

product type

1063PT

UNSPS

40141622

label

value

label

ETIM class

label

Housing material

value

Brass

label

Surface protection

value

Untreated

label

Connections

value

Internal thread cylindrical BSPP-G (ISO 228-1)

label

Article compression class

value

PN 8

label

Angle of non-return valve

value

label

Medium temperature (continuous)

value

-10°C - 90°C

label

Medium temperature (continuous) (imperial)

value

14°F - 194°F

label

FM quality mark

value

No

label

UL quality mark

value

No

label

ULC quality mark

value

No

label

LPCB quality mark

value

No

label

Suitable for central heating water

value

Yes

label

Certified according to SVGW for water

value

No

label

Certified according to SVGW for gas

value

No

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

KIWA certified

value

No
