group: 1062
Pressure rated up to PN25
potable water
heating
cooling
steam
commercial building
industry
shipbuilding
no approvals available
item number
size
dimensions
weight
packaging
gtin
item number
size
Rp1/2" (DN15)
dimensions
60x40x50 mm
weight
0.25 kg
packaging
box (10 pce)
gtin
05013866003073
item number
size
Rp3/4" (DN20)
dimensions
75x50x65 mm
weight
0.47 kg
packaging
box (10 pce)
gtin
05013866003080
item number
size
Rp1" (DN25)
dimensions
85x55x80 mm
weight
0.72 kg
packaging
box (5 pce)
gtin
05013866003097

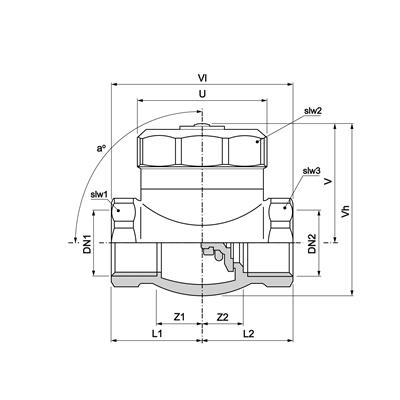

item number
size
d1
DN1
l1
z1
slw1
d2
DN2
l2
z2
slw2
V
U
a
item number
124007size
Rp1/2" (DN15)
d1
27.0
DN1
DN15
l1
29
z1
15
slw1
27
d2
27.0
DN2
DN15
l2
29
z2
15
slw2
27
V
34
U
41
a
90
item number
124008size
Rp3/4" (DN20)
d1
33.0
DN1
DN20
l1
36
z1
21
slw1
33
d2
33.0
DN2
DN20
l2
36
z2
21
slw2
33
V
39
U
52
a
90
item number
124009size
Rp1" (DN25)
d1
40.0
DN1
DN25
l1
42
z1
24
slw1
40
d2
40.0
DN2
DN25
l2
42
z2
24
slw2
40
V
50
U
62
a
90
color
brass
materials
brass (CW617N, CC754S)
finishing
none
shape
straight (0º)
connection type
Rp - female thread cylindrical (BSPT)
pressure rating (PN)
PN 25
sealing
Metal sealing
product group
valves (check valves)
ETIM class
EC011469 Check valve
HS code
84813099
brand
Pegler
series
Check Valve
product type
1062
UNSPS
40141634
max operating pressure liquid
25 bar
min. medium temperature
-10 °C
max medium temperature
186 °C
peak medium temperature
186 °C
Kv-value
label
value
label
ETIM class
value
label
Housing material
value
Brass
label
Surface protection
value
Untreated
label
Connections
value
Internal thread cylindrical BSPT-Rp (ISO 7-1 / EN 10226-1)
label
Article compression class
value
PN 25
label
Flange compression class
value
PN 25
label
Angle of non-return valve
value
0°
label
Medium temperature (continuous)
value
-10°C - 186°C
label
Medium temperature (continuous) (imperial)
value
14°F - 366.8°F
label
Max. operating pressure at 20 °C
value
25bar
label
Max. operating pressure at 20 °C (imperial)
value
362.59psi
label
FM quality mark
value
No
label
UL quality mark
value
No
label
ULC quality mark
value
No
label
LPCB quality mark
value
No
label
Suitable for central heating water
value
Yes
label
Certified according to SVGW for water
value
No
label
Certified according to SVGW for gas
value
No
label
VdS quality mark
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
No
label
KIWA certified
value
No
