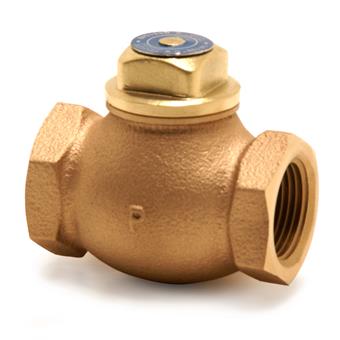

group: 1039PT
Pressure rated up to PN32
potable water
heating
cooling
steam
commercial building
industry
shipbuilding
no approvals available
item number
size
dimensions
weight
packaging
gtin
item number
size
G1/2" (DN15)
dimensions
60x35x50 mm
weight
0.3 kg
packaging
unpackaged (1 pce)
gtin
05013866013591
item number
size
G3/4" (DN20)
dimensions
65x25x60 mm
weight
0.47 kg
packaging
unpackaged (1 pce)
gtin
05013866013607
item number
size
G1" (DN25)
dimensions
80x30x70 mm
weight
0.67 kg
packaging
unpackaged (1 pce)
gtin
05013866013614
item number
size
G1.1/4" (DN32)
dimensions
90x70x90 mm
weight
1.16 kg
packaging
box (2 pce)
gtin
05022050228147
item number
size
G1.1/2" (DN40)
dimensions
100x60x95 mm
weight
1.45 kg
packaging
bag (1 pce)
gtin
05022050318671
item number
size
G2" (DN50)
dimensions
135x95x110 mm
weight
2.3 kg
packaging
box (1 pce)
gtin
05022050397737
item number

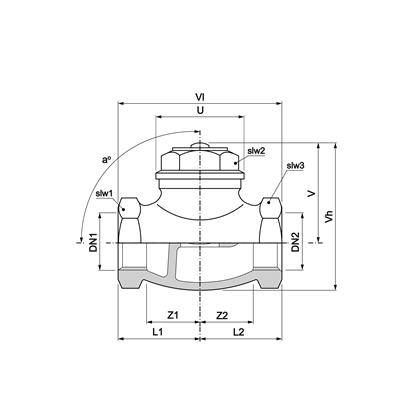

size
d1
DN1
l1
z1
slw1
d2
DN2
l2
z2
slw2
V
U
a
item number
119047size
G1/2" (DN15)
d1
29.0
DN1
DN15
l1
29
z1
19
slw1
29
d2
29.0
DN2
DN15
l2
29
z2
19
slw2
29
V
34
U
31
a
90
item number
119048size
G3/4" (DN20)
d1
36.0
DN1
DN20
l1
33
z1
22
slw1
36
d2
36.0
DN2
DN20
l2
33
z2
22
slw2
36
V
40
U
33
a
90
item number
119049size
G1" (DN25)
d1
42.0
DN1
DN25
l1
39
z1
27
slw1
42
d2
42.0
DN2
DN25
l2
39
z2
27
slw2
42
V
45
U
40
a
90
item number
119050size
G1.1/4" (DN32)
d1
51.0
DN1
DN32
l1
45
z1
30
slw1
51
d2
51.0
DN2
DN32
l2
45
z2
30
slw2
51
V
56
U
49
a
90
item number
119051size
G1.1/2" (DN40)
d1
57.0
DN1
DN40
l1
50
z1
36
slw1
57
d2
57.0
DN2
DN40
l2
50
z2
36
slw2
57
V
62
U
59
a
90
item number
119052size
G2" (DN50)
d1
72.0
DN1
DN50
l1
60
z1
42
slw1
72
d2
72.0
DN2
DN50
l2
60
z2
42
slw2
72
V
67
U
69
a
90
color
bronze
materials
bronze (EN CC499K)
finishing
none
shape
straight (0º)
connection type
G - female thread gas cylindrical (BSPP)
pressure rating (PN)
PN 32
sealing
Metal sealing
product group
valves (check valves)
ETIM class
EC011469 Check valve
HS code
84813099
brand
Pegler
series
Check Valve
product type
1039PT
UNSPS
40141634
max operating pressure liquid
32 bar
min. medium temperature
-10 °C
max medium temperature
100 °C
peak medium temperature
198 °C
Kv-value
label
value
label
ETIM class
value
label
Housing material
value
Bronze
label
Material quality
value
Bronze (Rg 5)
label
Surface protection
value
Untreated
label
Connections
value
Internal thread cylindrical BSPP-G (ISO 228-1)
label
Article compression class
value
PN 32
label
Angle of non-return valve
value
0°
label
Medium temperature (continuous)
value
-10°C - 100°C
label
Medium temperature (continuous) (imperial)
value
14°F - 212°F
label
Max. operating pressure at 20 °C
value
32bar
label
Max. operating pressure at 20 °C (imperial)
value
464.12psi
label
FM quality mark
value
No
label
UL quality mark
value
No
label
ULC quality mark
value
No
label
LPCB quality mark
value
No
label
Suitable for central heating water
value
Yes
label
Certified according to SVGW for water
value
No
label
Certified according to SVGW for gas
value
No
label
VdS quality mark
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
No
label
KIWA certified
value
No
item number
