Bronze Globe Valve

group: 1029

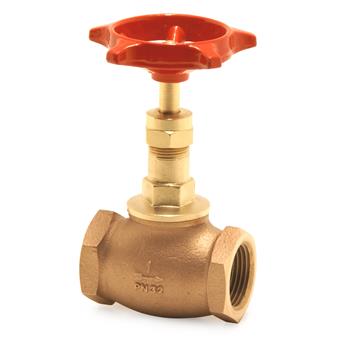

The Pegler type 1029 Bronze globe valves are designed for isolating and restricting the flow of a fluid to pipework and equipment, they have rising stems and PTFE renewable disks. It is complete with female threaded connections and is available in sizes ½” to 2”
  • P.T.F.E. renewable disk
  • BS 21 Taper Thread
  • Operating temperatures -10°C to 198°C
  • Operating pressure PN32
  • read more
    read less
    if the download did not start automatically, click here

    PDF generation failed, please try again later

    applications

    potable water

    potable water

    heating

    heating

    steam

    steam

    compressed air

    compressed air

    segments

    commercial building

    commercial building

    industry

    industry

    approvals

    no approvals available

    item number

    size

    dimensions

    weight

    packaging

    gtin

    item number

    110005

    size

    G1/4

    dimensions

    85x45x45 mm

    weight

    0.2 kg

    packaging

    bag (1 pce)

    gtin

    05013866013072

    item number

    110007

    size

    G1/2

    dimensions

    115x25x55 mm

    weight

    0.38 kg

    packaging

    box (10 pce)

    gtin

    05013866001437

    item number

    110008

    size

    G3/4

    dimensions

    115x25x65 mm

    weight

    0.53 kg

    packaging

    box (5 pce)

    gtin

    05013866001444

    item number

    110009

    size

    G1

    dimensions

    145x30x80 mm

    weight

    0.84 kg

    packaging

    box (5 pce)

    gtin

    05013866001451

    item number

    110010

    size

    G1 1/4

    dimensions

    165x30x90 mm

    weight

    1.34 kg

    packaging

    box (2 pce)

    gtin

    05013866001468

    item number

    110011

    size

    G1 1/2

    dimensions

    190x30x100 mm

    weight

    1.77 kg

    packaging

    box (2 pce)

    gtin

    05013866001475

    item number

    110012

    size

    G2

    dimensions

    235x105x195 mm

    weight

    2.68 kg

    packaging

    box (1 pce)

    gtin

    05013866001482

    item number

    110006

    size

    G3/8

    dimensions

    90x15x50 mm

    weight

    0.23 kg

    packaging

    unpackaged (1 pce)

    gtin

    05013866013089

    item number

    size

    d1

    DN1

    l1

    z1

    slw1

    d2

    DN2

    l2

    z2

    slw2

    M

    H

    Y

    V

    U

    a

    item number

    110005

    size

    G1/4

    d1

    29.0

    DN1

    1/4" (DN8)

    l1

    24

    z1

    17

    slw1

    29

    d2

    29.0

    DN2

    1/4" (DN8)

    l2

    24

    z2

    17

    slw2

    29

    M

    70

    H

    76

    Y

    17

    V

    38

    U

    25

    a

    90

    item number

    110007

    size

    G1/2

    d1

    29.0

    DN1

    1/2" (DN15)

    l1

    29

    z1

    19

    slw1

    29

    d2

    29.0

    DN2

    1/2" (DN15)

    l2

    29

    z2

    19

    slw2

    29

    M

    70

    H

    95

    Y

    17

    V

    57

    U

    31

    a

    90

    item number

    110008

    size

    G3/4

    d1

    36.0

    DN1

    3/4" (DN20)

    l1

    33

    z1

    22

    slw1

    36

    d2

    36.0

    DN2

    3/4" (DN20)

    l2

    33

    z2

    22

    slw2

    36

    M

    70

    H

    100

    Y

    17

    V

    62

    U

    33

    a

    90

    item number

    110009

    size

    G1

    d1

    42.0

    DN1

    1" (DN25)

    l1

    39

    z1

    27

    slw1

    42

    d2

    42.0

    DN2

    1" (DN25)

    l2

    39

    z2

    27

    slw2

    42

    M

    85

    H

    115

    Y

    20

    V

    75

    U

    40

    a

    90

    item number

    110010

    size

    G1 1/4

    d1

    51.0

    DN1

    1 1/4" (DN32)

    l1

    45

    z1

    30

    slw1

    51

    d2

    51.0

    DN2

    1 1/4" (DN32)

    l2

    45

    z2

    30

    slw2

    51

    M

    85

    H

    138

    Y

    23

    V

    98

    U

    49

    a

    90

    item number

    110011

    size

    G1 1/2

    d1

    57.0

    DN1

    1 1/2" (DN40)

    l1

    50

    z1

    35

    slw1

    57

    d2

    57.0

    DN2

    1 1/2" (DN40)

    l2

    50

    z2

    35

    slw2

    57

    M

    105

    H

    159

    Y

    26

    V

    119

    U

    57

    a

    90

    item number

    110012

    size

    G2

    d1

    72.0

    DN1

    2" (DN50)

    l1

    61

    z1

    47

    slw1

    72

    d2

    72.0

    DN2

    2" (DN50)

    l2

    61

    z2

    47

    slw2

    72

    M

    105

    H

    170

    Y

    26

    V

    126

    U

    69

    a

    90

    item number

    110006

    size

    G3/8

    d1

    29.0

    DN1

    3/8" (DN10)

    l1

    23

    z1

    15

    slw1

    29

    d2

    29.0

    DN2

    3/8" (DN10)

    l2

    23

    z2

    15

    slw2

    29

    M

    70

    H

    76

    Y

    17

    V

    38

    U

    25

    a

    90

    technical drawing for product

    characteristics

    color

    bronze

    materials

    bronze (EN CC499K)

    finishing

    none

    shape

    straight (0º)

    connection type

    G - female thread gas cylindrical (BSPP)

    pressure rating (PN)

    PN 32

    sealing

    PTFE

    general

    product group

    valves (stop valves)

    ETIM class

    EC010120 Globe valve

    HS code

    84818079

    brand

    Pegler

    series

    Globe Valve

    product type

    1029

    UNSPS

    40141611

    technical

    max operating pressure liquid

    32 bar

    min. medium temperature

    -10 °C

    max medium temperature

    100 °C

    peak medium temperature

    198 °C

    Kv-value

    value depends on the item view items

    image for 1029_Bronze_Globe_Valve

    image | jpg

    1029_Bronze_Globe_Valve

    image for Diagram

    diagram | jpg

    Diagram

    Other document | pdf

    Pegler Valve Installation Instructions

    label

    value

    label

    ETIM class

    label

    Housing material

    value

    Bronze

    label

    Connection 1

    value

    Internal thread cylindrical BSPP-G (ISO 228-1)

    label

    With coupling connection 1

    value

    No

    label

    Connection 2

    value

    Internal thread cylindrical BSPP-G (ISO 228-1)

    label

    With coupling connection 2

    value

    No

    label

    Article compression class

    value

    PN 32

    label

    Medium temperature (continuous)

    value

    -10°C - 100°C

    label

    Medium temperature (continuous) (imperial)

    value

    14°F - 212°F

    label

    Surface protection

    value

    Untreated

    label

    Spindle and/or hand wheel rising

    value

    No

    label

    Operation

    value

    Hand wheel

    label

    With position indicator

    value

    No

    label

    With drain valve

    value

    No

    label

    Angle of the valve

    value

    label

    Spindle angle

    value

    90°

    label

    Spindle angle (imperial)

    value

    3.54"

    label

    Material primary spindle seal

    value

    PTFE/FPM

    label

    Suitable for liquids

    value

    Yes

    label

    Suitable for gases

    value

    No

    label

    Suitable for steam

    value

    Yes

    label

    VdS quality mark

    value

    No

    label

    KIWA certified

    value

    No

    label

    Gastec QA mark

    value

    No

    label

    Gastec QA - AR 214 (H2)

    value

    No

    item number

    carbon footprint (A-C) embodied carbon

    data source

    item number

    110005

    carbon footprint (A-C) embodied carbon

    1.5kgCO2e

    data source

    TM65

    item number

    110007

    carbon footprint (A-C) embodied carbon

    2.64kgCO2e

    data source

    TM65

    item number

    110008

    carbon footprint (A-C) embodied carbon

    3.58kgCO2e

    data source

    TM65

    item number

    110009

    carbon footprint (A-C) embodied carbon

    5.79kgCO2e

    data source

    TM65

    item number

    110010

    carbon footprint (A-C) embodied carbon

    8.88kgCO2e

    data source

    TM65

    item number

    110011

    carbon footprint (A-C) embodied carbon

    11.08kgCO2e

    data source

    TM65

    item number

    110012

    carbon footprint (A-C) embodied carbon

    17.2kgCO2e

    data source

    TM65

    item number

    110006

    carbon footprint (A-C) embodied carbon

    1.65kgCO2e

    data source

    TM65
