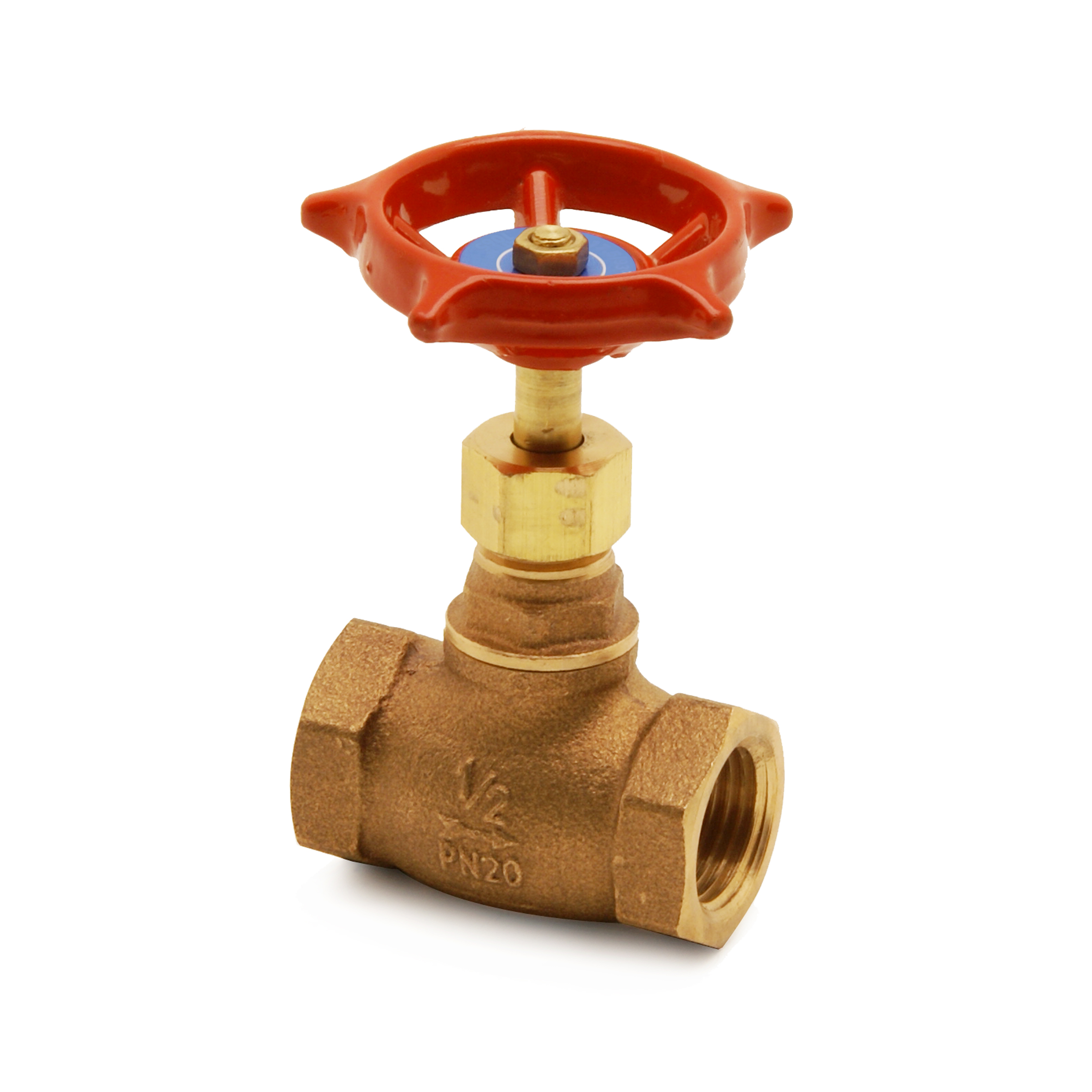

Pegler Globe valve Bronze PN20 PTFE seat (2 x female thread)

group: 10215

The Pegler type 10215 Bronze globe valves are designed for isolating and restricting the flow of a fluid to pipework and equipment, they have rising stems and metal disks. It is complete with BS 21 Taper Thread connections and is available in sizes ½” to 2”
  • BS 21 Taper Thread
  • Easy to operate wheel handle
  • Operating temperatures -10°C to 170°C
  • Operating pressure PN20
  • read more
    read less
    if the download did not start automatically, click here

    PDF generation failed, please try again later

    applications

    potable water

    potable water

    heating

    heating

    steam

    steam

    compressed air

    compressed air

    segments

    commercial building

    commercial building

    industry

    industry

    approvals

    no approvals available

    item number

    size

    d1

    DN1

    l1

    z1

    slw1

    d2

    DN2

    l2

    z2

    slw2

    M

    H

    Y

    V

    U

    a

    item number

    112070

    size

    Rp1/2

    d1

    28.0

    DN1

    1/2" (DN15)

    l1

    26

    z1

    16

    slw1

    28

    d2

    28.0

    DN2

    1/2" (DN15)

    l2

    26

    z2

    16

    slw2

    28

    M

    66

    H

    75

    Y

    20

    V

    22

    U

    23

    a

    90

    item number

    112071

    size

    Rp3/4

    d1

    36.0

    DN1

    3/4" (DN20)

    l1

    30

    z1

    22

    slw1

    36

    d2

    36.0

    DN2

    3/4" (DN20)

    l2

    30

    z2

    22

    slw2

    36

    M

    70

    H

    97

    Y

    17

    V

    62

    U

    33

    a

    90

    item number

    112072

    size

    Rp1

    d1

    42.0

    DN1

    1" (DN25)

    l1

    35

    z1

    27

    slw1

    42

    d2

    42.0

    DN2

    1" (DN25)

    l2

    35

    z2

    27

    slw2

    42

    M

    85

    H

    118

    Y

    20

    V

    75

    U

    40

    a

    90

    item number

    112073

    size

    Rp1 1/4

    d1

    55.0

    DN1

    1 1/4" (DN32)

    l1

    41

    z1

    30

    slw1

    52

    d2

    55.0

    DN2

    1 1/4" (DN32)

    l2

    41

    z2

    30

    slw2

    52

    M

    91

    H

    116

    Y

    25

    V

    37

    U

    45

    a

    90

    item number

    112074

    size

    Rp1 1/2

    d1

    61.0

    DN1

    1 1/2" (DN40)

    l1

    45

    z1

    36

    slw1

    58

    d2

    61.0

    DN2

    1 1/2" (DN40)

    l2

    49

    z2

    36

    slw2

    58

    M

    100

    H

    123

    Y

    30

    V

    38

    U

    53

    a

    90

    item number

    112075

    size

    Rp2

    d1

    75.0

    DN1

    2" (DN50)

    l1

    58

    z1

    45

    slw1

    70

    d2

    75.0

    DN2

    2" (DN50)

    l2

    58

    z2

    45

    slw2

    70

    M

    115

    H

    148

    Y

    30

    V

    52

    U

    64

    a

    90

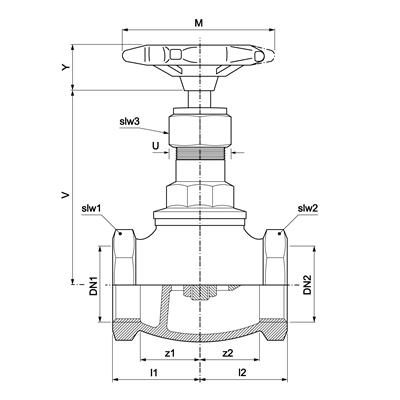

    technical drawing for product

    characteristics

    color

    brass

    materials

    bronze (EN CC499K)

    finishing

    none

    shape

    straight (0º)

    connection type

    Rc - female thread gas conical (BSPT)

    pressure rating (PN)

    PN 20

    sealing

    PTFE

    general

    product group

    valves (stop valves)

    ETIM class

    EC010120 Globe valve

    HS code

    84818079

    brand

    Pegler

    series

    Globe Valve

    product type

    10215

    UNSPS

    40141611

    technical

    max operating pressure liquid

    20 bar

    min. medium temperature

    -10 °C

    max medium temperature

    100 °C

    peak medium temperature

    170 °C

    Kv-value

    value depends on the item view items

    image for 10215_Bronze_Globe_Valve

    image | jpg

    10215_Bronze_Globe_Valve

    image for Diagram

    diagram | jpg

    Diagram

    label

    value

    label

    ETIM class

    label

    Housing material

    value

    Bronze

    label

    Connection 1

    value

    Internal thread conical BSPT-Rc (ISO 7-1 / EN 10226-1)

    label

    With coupling connection 1

    value

    No

    label

    Connection 2

    value

    Internal thread conical BSPT-Rc (ISO 7-1 / EN 10226-1)

    label

    With coupling connection 2

    value

    No

    label

    Article compression class

    value

    PN 20

    label

    Medium temperature (continuous)

    value

    -10°C - 100°C

    label

    Medium temperature (continuous) (imperial)

    value

    14°F - 212°F

    label

    Surface protection

    value

    Untreated

    label

    Spindle and/or hand wheel rising

    value

    No

    label

    Operation

    value

    Hand wheel

    label

    With position indicator

    value

    No

    label

    With drain valve

    value

    No

    label

    Angle of the valve

    value

    label

    Spindle angle

    value

    90°

    label

    Material primary spindle seal

    value

    PTFE/FPM

    label

    Suitable for liquids

    value

    Yes

    label

    Suitable for gases

    value

    No

    label

    Suitable for steam

    value

    Yes

    label

    VdS quality mark

    value

    No

    label

    KIWA certified

    value

    No

    label

    Gastec QA mark

    value

    No

    label

    Gastec QA - AR 214 (H2)

    value

    No

    item number

    carbon footprint (A-C) embodied carbon

    data source

    item number

    112070

    carbon footprint (A-C) embodied carbon

    2.03kgCO2e

    data source

    TM65

    item number

    112071

    carbon footprint (A-C) embodied carbon

    3.08kgCO2e

    data source

    TM65

    item number

    112072

    carbon footprint (A-C) embodied carbon

    4.7kgCO2e

    data source

    TM65

    item number

    112073

    carbon footprint (A-C) embodied carbon

    7.03kgCO2e

    data source

    TM65

    item number

    112074

    carbon footprint (A-C) embodied carbon

    9.92kgCO2e

    data source

    TM65

    item number

    112075

    carbon footprint (A-C) embodied carbon

    14.86kgCO2e

    data source

    TM65
