VSH Prestex thermostatic mixing valve FFF 22 (DN20)
this article is part of a product group (PEG402) that contains a total of 2 items
view all 2 itemsgroup: PEG402
item: 5A1402
category: afsluiters
product line: Pegler TMV
The PEG402 is an anti-scald thermostatic mixing valve complete with Prestex compression connections which combines high quality manufacturing and top of the range performance with ease of installation and servicing. Pegler anti-scald TMV’s are the ideal choice for eliminating the risk of scalding in healthcare, public and educational buildings, commercial and domestic projects and are WRAS approved.
- Simplicity of installation and servicing
- Temperature pre-set to 43ºC, but easily adjustable on site
- Simple to install and service
- 15mm and 22mm sizes.
applications
potable water
segments
industry
commercial building
approvals
specifications - product info
item
VSH Prestex thermostatic mixing valve FFF 22 (DN20)
item number with gtin
5A1402 (05022050388247)
product number with gtin
5A1402 (05022050575524)
manufacturer
Aalberts integrated piping systems Ltd (Pegler)
item group
PEG402 PEG402 - Thermostatic Mixing Valvesize
22
weight
0.54 kg
dimensions
130x150x45 mm
packaging
box (1 pce)
specifications - characteristics
color
chrome
materials
brass (CW602N (DZR))
finishing
chromed
shape
T-piece
connection type
compression, compression, compression
pressure rating (PN)
PN 12.5
sealing
EPDM
specifications - technical
max operating pressure liquid
12 bar
min. medium temperature
5 °C
max medium temperature
65 °C
peak medium temperature
85 °C
Kvs-value
33
Kv-value
4 - 33
specifications - general
product group
valves (EPDM)
HS code
84818051
brand
Pegler
series
TMV
product type
PEG402
UNSPS
40141604

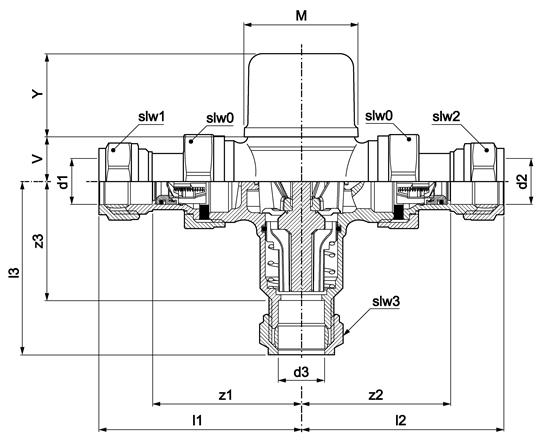

dimensions
d1
l1
z1
d2
l2
z2
d3
l3
z3
slw3
slw0
M
Y
V
22.0
73
53
22.0
73
53
22.0
55
36
32
37
36
27
14
sustainability
carbon footprint (A-C) embodied carbon
2.22kgCO2e
data source
TM65
