VSH Tectite Pro elbow 90° FF 54

item: 45534

The VSH Tectite Pro TX12 is a 90° elbow with two push fit ends. By using VSH Tectite you are using a world class push fitting with unique technology. VSH Tectite provides a piping suitable for domestic and light commercial applications.

  • demountable
  • Electrical continuity
  • Enhance temperatures & pressure performance
  • no heat works required
  • provided with all relevant approvals
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

heating

heating

cooling

cooling

segments

commercial building

commercial building

approvals

ACS

ACS

BSI Kitemark

BSI Kitemark

CSN

CSN

DVGW Wasser

DVGW Wasser

KIWA

KIWA

QB (CSTBat)

QB (CSTBat)

UK water regulation 4

UK water regulation 4

label

value

label

d1

value

54.0

label

DN1

value

DN50

label

l1

value

98

label

z1

value

29

label

d2

value

54.0

label

DN2

value

DN50

label

l2

value

98

label

z2

value

29

label

angle

value

90

drawing for product

characteristics

color

bronze

materials

bronze (EN CC499K)

finishing

none

shape

Elbow (90º)

connection type

push

sealing

EPDM

general

product group

fittings (demountable)

ETIM class

EC003024 Fitting with 2 connections

HS code

74122000

brand

VSH

series

Tectite Pro

product type

TX12

UNSPS

40172801

scip

8078ea46-ded6-4488-8aee-1429ca03f1ed

product info

item

VSH Tectite Pro elbow 90° FF 54

item number with gtin

45534 (05022050006462)

product number with gtin

45534 (05022050554130)

manufacturer

Aalberts integrated piping systems Ltd (Pegler)

item group

TX12 - VSH Tectite Pro elbow 90° (2 x push)

size

54

weight

1.31 kg

dimensions

150x80x150 mm

packaging

bag (1 pce)

technical

max operating pressure liquid

16 bar

min. medium temperature

-24 °C

max medium temperature

90 °C

peak medium temperature

90 °C

installation- & maintenance document | pdf

VSH Tectite installation instructions

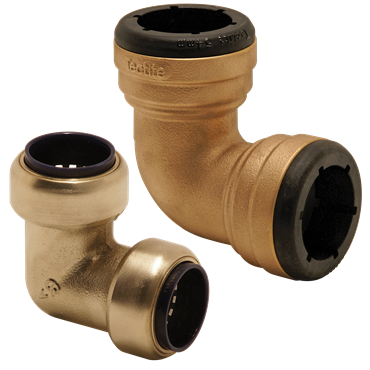

image for TX12_Combi

image | png

TX12_Combi

image for Diagram

diagram | jpg

Diagram

certifications | pdf

CSN Tectite PRO/Classic/Sprint/316

link to sheet | pdf

MSDS_VSH_Tectite Pro

certifications | pdf

Pegler_BSI_All_Fittings_KM_15121

certifications | pdf

Tectite Pro DZR NSG REG4 1+

certifications | pdf

VSH Tectite ACS

certifications | pdf

VSH Tectite Classic & Pro WRAS

certifications | pdf

VSH Tectite Classic & Pro WRAS

certifications | pdf

VSH Tectite Classic and Pro DVGW

image for Diagram

diagram | jpg

Diagram

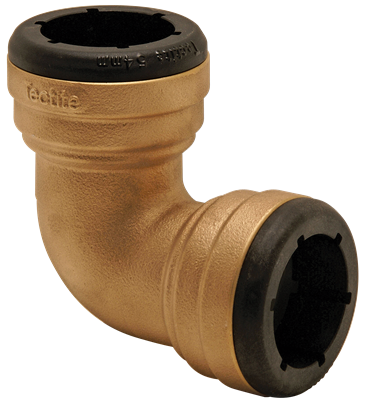

image for TX12_35-54

image | png

TX12_35-54

label

value

label

Material connection 1

value

Bronze

label

Material quality connection 1

value

CuSn5Zn5Pb2

label

Surface protection connection 1

value

Untreated

label

Surface treatment connection 1

value

Untreated

label

Material connection 2

value

Bronze

label

Material quality connection 2

value

CuSn5Zn5Pb2

label

Surface protection connection 2

value

Untreated

label

Surface treatment connection 2

value

Untreated

label

Shape

value

Bend

label

Model

value

1-part

label

Bend angle

value

90°

label

Reducing

value

No

label

Eccentric

value

No

label

System specific

value

No

label

Nominal diameter connection 1

value

DN 50

label

Outer pipe diameter connection 1

value

54mm

label

Outer pipe diameter connection 1 (imperial)

value

2.13"

label

Wall thickness, connection 1

value

1.9mm

label

Wall thickness, connection 1 (imperial)

value

0.07"

label

Connection 1

value

Insert (push-fitting)

label

Nominal diameter connection 2

value

DN 50

label

Outer pipe diameter connection 2

value

54mm

label

Outer pipe diameter connection 2 (imperial)

value

2.13"

label

Wall thickness, connection 2

value

1.9mm

label

Wall thickness, connection 2 (imperial)

value

0.07"

label

Connection 2

value

Insert (push-fitting)

label

Main colour fitting

value

Bronze

label

Flange compression class (PN)

value

PN 16

label

Material sealing

value

Ethylene-propylene diene monomer rubber (EPDM)

label

With buffer stud

value

Yes

label

High tensile strength

value

Yes

label

Length

value

150mm

label

Length of connection 1

value

98mm

label

Length of connection 1 (imperial)

value

3.86"

label

Working length connection 1

value

29mm

label

Working length connection 1 (imperial)

value

1.14"

label

Length of connection 2

value

98mm

label

Length of connection 2 (imperial)

value

3.86"

label

Working length connection 2

value

29mm

label

Working length connection 2 (imperial)

value

1.14"

label

Medium temperature (continuous)

value

-24°C - 90°C

label

Medium temperature (continuous) (imperial)

value

-11.2°F - 194°F

label

Max. operating pressure at 20 °C

value

16bar

label

Max. operating pressure at 20 °C (imperial)

value

232.06psi

label

With thermal insulation

value

No

label

With sealing rings/gaskets

value

No

label

Capped

value

No

label

With connection indicator

value

No

label

With drain valve

value

No

label

With de-aerator

value

No

label

FM quality mark

value

No

label

LPCB quality mark

value

No

label

ULC quality mark

value

No

label

UL quality mark

value

No

label

DIN-CERTCO certificate

value

No

label

VdS quality mark

value

No

label

With approval for TÜV

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

Yes

label

Certified according to NF 545

value

No

label

KIWA certified

value

Yes

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No

label

Type approval according to BBR/EKS

value

No

carbon footprint (A-C) embodied carbon

8.01kgCO2e

data source

TM65
