group: YP359R
no applications available
commercial building
no approvals available
code
size
dimensions
weight
packaging
gtin
code
size
42x42x35
dimensions
40x48x77 mm
weight
0.26 kg
packaging
bag (1 pce)
gtin
05022050540584
code
size
54x54x35
dimensions
40x59x80 mm
weight
0.36 kg
packaging
bag (1 pce)
gtin
05022050540607
code
size
54x54x42
dimensions
48x60x89 mm
weight
0.47 kg
packaging
bag (1 pce)
gtin
05022050540591
item

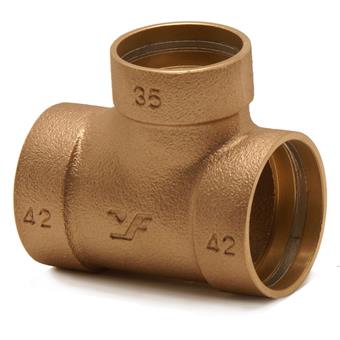

Yorkshire Pitcher Tee 88.5°
item number with gtin
YP359R
manufacturer
Aalberts integrated piping systems Ltd (Pegler)
weight
0.47 kg
dimensions
48x60x89 mm
materials
bronze (EN CC499K)
finishing
none
shape
T-piece
connection type
solder
pressure rating (PN)
PN 16
sealing
Metal sealing
max operating pressure liquid
16 bar
min. medium temperature
-40 °C
max medium temperature
110 °C
peak medium temperature
65 °C
product group
fittingen
ETIM class
EC003025 Fitting with 3 connectionsHS code
74122000
brand
Pegler
series
Yorkshire Waste
product type
YP359R
UNSPS
40174612
label
value
label
etim-class
label
Surface protection connection 1
value
Untreated
label
Surface treatment connection 1
value
Untreated
label
Surface protection connection 2
value
Untreated
label
Surface treatment connection 2
value
Untreated
label
Model
value
T-piece
label
Reducing
value
No
label
Multi-part
value
No
label
System specific
value
Yes
label
Connection 1
value
Soldered sleeve
label
Connection 2
value
Soldered sleeve
label
Flange compression class
value
PN 16
label
Material sealing
value
Metal-sealing
label
Max. operating pressure at 20 °C
value
16bar
label
Max. operating pressure at 20 °C (imperial)
value
232.06psi
label
Medium temperature (continuous)
value
-40°C - 110°C
label
Medium temperature (continuous) (imperial)
value
-40°F - 230°F
label
With sealing rings/gaskets
value
No
label
With drain valve
value
No
label
With de-aerator
value
No
label
With thermal insulation
value
No
label
With buffer stud
value
No
label
Capped
value
No
label
FM quality mark
value
No
label
LPCB quality mark
value
No
label
ULC quality mark
value
No
label
UL quality mark
value
No
label
VdS quality mark
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
No
label
KIWA certified
value
No
label
Gastec QA mark
value
No
label
KOMO certified
value
No
label
Gastec QA - AR 214 (H2)
value
No
