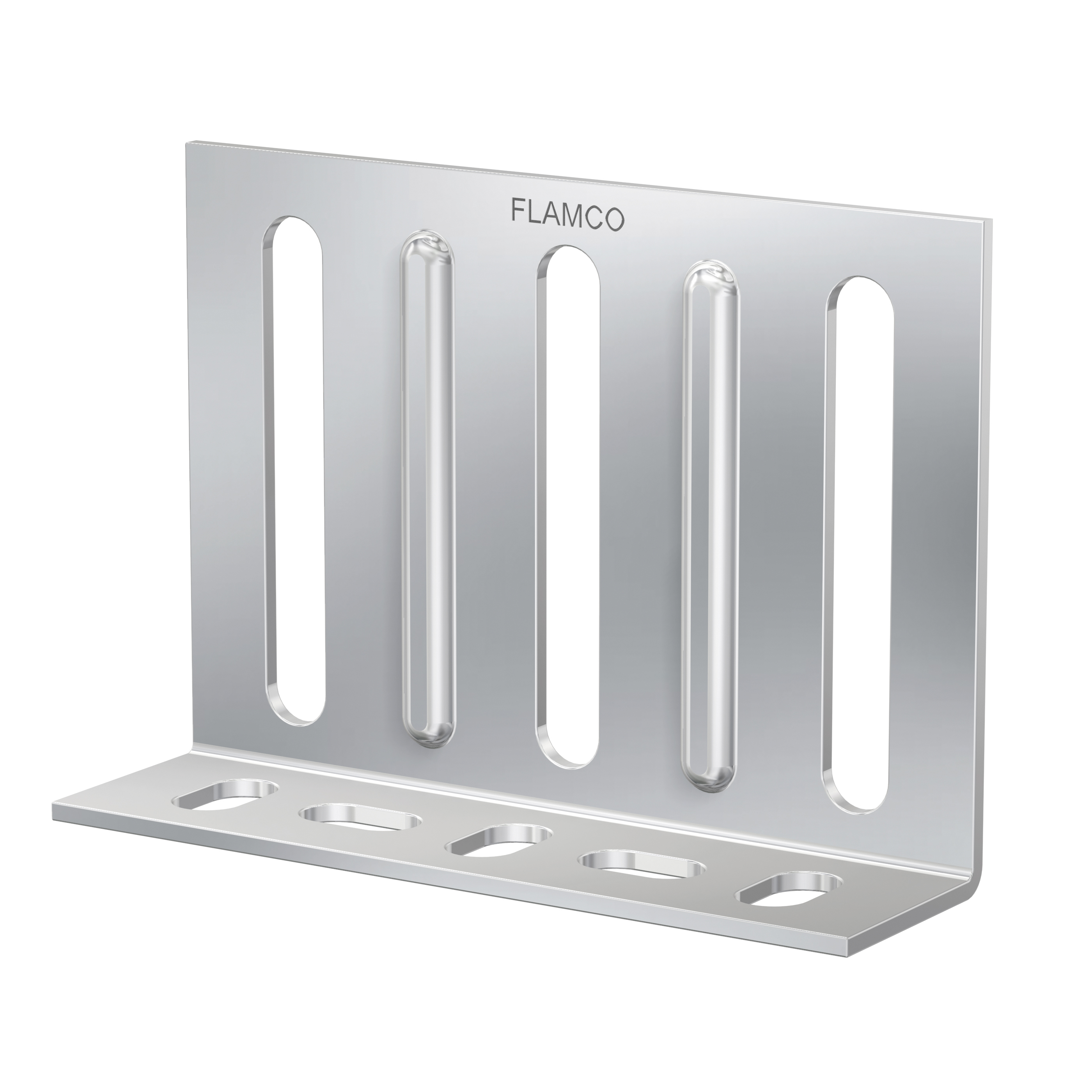

FlamcoFix VG Angle plate

group: VG

For construction of heavy fixed points, adjustable suspensions and supports.
  • Specially suited for fixed point constructions in combination with fixed point clips (RSF clips 3" - 12" / KB clips up to 12").
  • read more
    read less
    if the download did not start automatically, click here

    PDF generation failed, please try again later

    applications

    potable water

    potable water

    natural gas

    natural gas

    heating

    heating

    cooling

    cooling

    compressed air

    compressed air

    vacuum

    vacuum

    segments

    residential

    residential

    commercial building

    commercial building

    industry

    industry

    approvals

    no approvals available

    item number

    size

    dimensions

    weight

    packaging

    gtin

    item number

    10-71617

    size

    -

    dimensions

    95x200x95 mm

    weight

    1.7 kg

    packaging

    carton (1 pce)

    gtin

    -

    item number

    10-71616

    size

    140x100x3

    dimensions

    40x140x100 mm

    weight

    0.34 kg

    packaging

    carton (10 pce)

    gtin

    08719313024734

    item number

    size

    item number

    10-71617

    size

    item number

    10-71616

    size

    140x100x3

    technical drawing for product

    characteristics

    materials

    steel

    finishing

    galvanized (electrolytically zincplated)

    general

    product group

    Fastening

    HS code

    73089098

    brand

    IPS FlamcoFix

    series

    Fastening Accessories

    product type

    VG

    image for VG

    image | jpg

    VG

    image for VG

    image | jpg

    VG

    image for VG

    image | jpg

    VG

    image for VG

    image | jpg

    VG

    image for VG

    image | jpg

    VG

    image for Diagram

    diagram | jpg

    Diagram

    image for Diagram

    diagram | jpg

    Diagram

    image for Diagram

    diagram | jpg

    Diagram

    image for Diagram

    diagram | jpg

    Diagram

    image for Diagram

    diagram | jpg

    Diagram

    image for Diagram

    diagram | jpg

    Diagram
