group: TX27

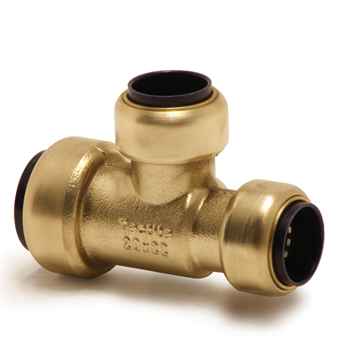

The VSH Tectite Pro TX27 is a reduced T-piece with three push fit ends. By using VSH Tectite you are using a world class push fitting with unique technology. VSH Tectite provides a piping suitable for domestic and light commercial applications.
potable water
heating
cooling
commercial building
BSI Kitemark
KIWA
UK water regulation 4
item number
size
dimensions
weight
packaging
gtin
item number
size
22x15x15
dimensions
70x35x55 mm
weight
0.13 kg
packaging
bag (5 pce)
gtin
05022050658210
item number
size
d1
DN1
l1
z1
d2
DN2
l2
z2
d3
DN3
l3
z3
item number
65820size
22x15x15
d1
15.0
DN1
DN15
l1
31
z1
7
d2
15.0
DN2
DN15
l2
37
z2
8
d3
22.0
DN3
DN20
l3
36
z3
12
color
brass
materials
brass (CW602N (DZR))
finishing
none
shape
T-piece, reducer (90º)
connection type
push, Push
sealing
EPDM
product group
fittings (demountable)
ETIM class
EC003025 Fitting with 3 connections
HS code
74122000
brand
VSH
series
Tectite Pro
product type
TX27
UNSPS
40174601
max operating pressure liquid
20 bar
min. medium temperature
-24 °C
max medium temperature
114 °C
peak medium temperature
114 °C
label
value
label
ETIM class
label
Material connection 1
value
Brass
label
Material quality connection 1
value
CuZn36Pb2As (CW602N)
label
Surface protection connection 1
value
Untreated
label
Surface treatment connection 1
value
Untreated
label
Material connection 2
value
Brass
label
Material quality connection 2
value
CuZn36Pb2As (CW602N)
label
Surface protection connection 2
value
Untreated
label
Surface treatment connection 2
value
Untreated
label
Material connection 3
value
Brass
label
Material quality connection 3
value
CuZn36Pb2As (CW602N)
label
Surface protection connection 3
value
Untreated
label
Surface treatment connection 3
value
Untreated
label
Model
value
T-piece
label
Angle
value
90°
label
Reducing
value
Yes
label
Multi-part
value
No
label
System specific
value
No
label
Nominal diameter connection 1
value
DN 15
label
Outer pipe diameter connection 1
value
15mm
label
Outer pipe diameter connection 1 (imperial)
value
0.59"
label
Wall thickness, connection 1
value
1.2mm
label
Wall thickness, connection 1 (imperial)
value
0.05"
label
Connection 1
value
Insert (push-fitting)
label
Nominal diameter connection 2
value
DN 15
label
Outer pipe diameter connection 2
value
15mm
label
Outer pipe diameter connection 2 (imperial)
value
0.59"
label
Wall thickness, connection 2
value
1.2mm
label
Wall thickness, connection 2 (imperial)
value
0.05"
label
Connection 2
value
Insert (push-fitting)
label
Nominal diameter connection 3
value
DN 20
label
Outer pipe diameter connection 3
value
22mm
label
Outer pipe diameter connection 3 (imperial)
value
0.87"
label
Wall thickness, connection 3
value
1.4mm
label
Wall thickness, connection 3 (imperial)
value
0.06"
label
Connection 3
value
Insert (push-fitting)
label
Material sealing
value
Ethylene-propylene diene monomer rubber (EPDM)
label
Main colour fitting
value
Brass
label
Length of connection 1
value
31mm
label
Length of connection 1 (imperial)
value
1.22"
label
Working length connection 1
value
7mm
label
Working length connection 1 (imperial)
value
0.28"
label
High tensile strength
value
Yes
label
Length of connection 2
value
37mm
label
Length of connection 2 (imperial)
value
1.46"
label
Working length connection 2
value
8mm
label
Working length connection 2 (imperial)
value
0.31"
label
Length of connection 3
value
36mm
label
Length of connection 3 (imperial)
value
1.42"
label
Working length connection 3
value
12mm
label
Working length connection 3 (imperial)
value
0.47"
label
Max. operating pressure at 20 °C
value
20bar
label
Max. operating pressure at 20 °C (imperial)
value
290.08psi
label
Medium temperature (continuous)
value
-24°C - 114°C
label
Medium temperature (continuous) (imperial)
value
-11.2°F - 237.2°F
label
With sealing rings/gaskets
value
No
label
With drain valve
value
No
label
With de-aerator
value
No
label
With thermal insulation
value
No
label
With buffer stud
value
Yes
label
Capped
value
No
label
With connection indicator
value
No
label
FM quality mark
value
No
label
LPCB quality mark
value
No
label
ULC quality mark
value
No
label
UL quality mark
value
No
label
DIN-CERTCO certificate
value
No
label
VdS quality mark
value
No
label
With approval for TÜV
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
No
label
KIWA certified
value
Yes
label
Gastec QA mark
value
No
label
KOMO certified
value
No
label
Gastec QA - AR 214 (H2)
value
No
label
Type approval according to BBR/EKS
value
No
