group: TT12CP

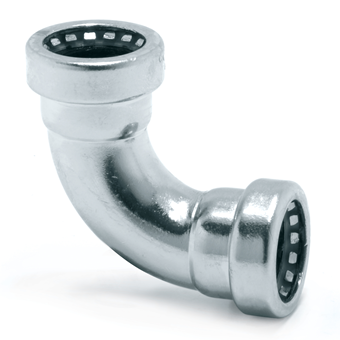

The VSH Tectite sprint TT12CP is a 90° elbow with two push fit ends. By using VSH Tectite you are using a world class push fitting with unique technology. VSH Tectite provides a piping suitable for domestic and light commercial applications.
potable water
heating
cooling
residential
commercial building
ACS
BSI Kitemark
CSN
DVGW Wasser
ETA
NSF
RISE
WRAS
item number
size
dimensions
weight
packaging
gtin
item number
size
15 Cr
dimensions
50x22x50 mm
weight
0.04 kg
packaging
bag (10 pce)
gtin
05022050308443
item number
size
22 Cr
dimensions
60x30x60 mm
weight
0.07 kg
packaging
bag (5 pce)
gtin
05022050309464
color
chrome
materials
copper (CW024A (UNS C12200))
finishing
chromed
shape
Bend (90º)
connection type
push
sealing
EPDM
product group
fittings
ETIM class
EC003024 Fitting with 2 connections
HS code
74121000
brand
VSH
series
Tectite Sprint
product type
TT12CP
UNSPS
40172812
max operating pressure liquid
20 bar
min. medium temperature
-24 °C
max medium temperature
114 °C
peak medium temperature
114 °C
label
value
label
ETIM class
label
Material connection 1
value
Copper
label
Material quality connection 1
value
Cu-DHP (CW024A)
label
Surface protection connection 1
value
Chromium-plated
label
Material connection 2
value
Copper
label
Surface protection connection 2
value
Chromium-plated
label
Shape
value
Bend
label
Model
value
1-part
label
Bend angle
value
90°
label
Reducing
value
No
label
Eccentric
value
No
label
System specific
value
No
label
Connection 1
value
Insert (push-fitting)
label
Connection 2
value
Insert (push-fitting)
label
Main colour fitting
value
Chrome
label
Material sealing
value
Ethylene-propylene diene monomer rubber (EPDM)
label
With buffer stud
value
Yes
label
High tensile strength
value
Yes
label
Medium temperature (continuous)
value
-24°C - 114°C
label
Medium temperature (continuous) (imperial)
value
-11.2°F - 237.2°F
label
Max. operating pressure at 20 °C
value
20bar
label
Max. operating pressure at 20 °C (imperial)
value
290.08psi
label
With thermal insulation
value
No
label
With sealing rings/gaskets
value
No
label
Capped
value
No
label
With connection indicator
value
No
label
With drain valve
value
No
label
With de-aerator
value
No
label
FM quality mark
value
No
label
LPCB quality mark
value
No
label
ULC quality mark
value
No
label
UL quality mark
value
No
label
DIN-CERTCO certificate
value
No
label
VdS quality mark
value
No
label
With approval for TÜV
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
Yes
label
Certified according to NF 545
value
No
label
KIWA certified
value
No
label
Gastec QA mark
value
No
label
KOMO certified
value
No
label
Gastec QA - AR 214 (H2)
value
No
label
Type approval according to BBR/EKS
value
No
