group: TP15ETPPE
potable water
heating
non-potable water
commercial building
Watermark
item number
size
dimensions
weight
packaging
gtin
item number
size
16xG1/2
dimensions
108x41x73 mm
weight
0.16 kg
packaging
-
gtin
05022050610416

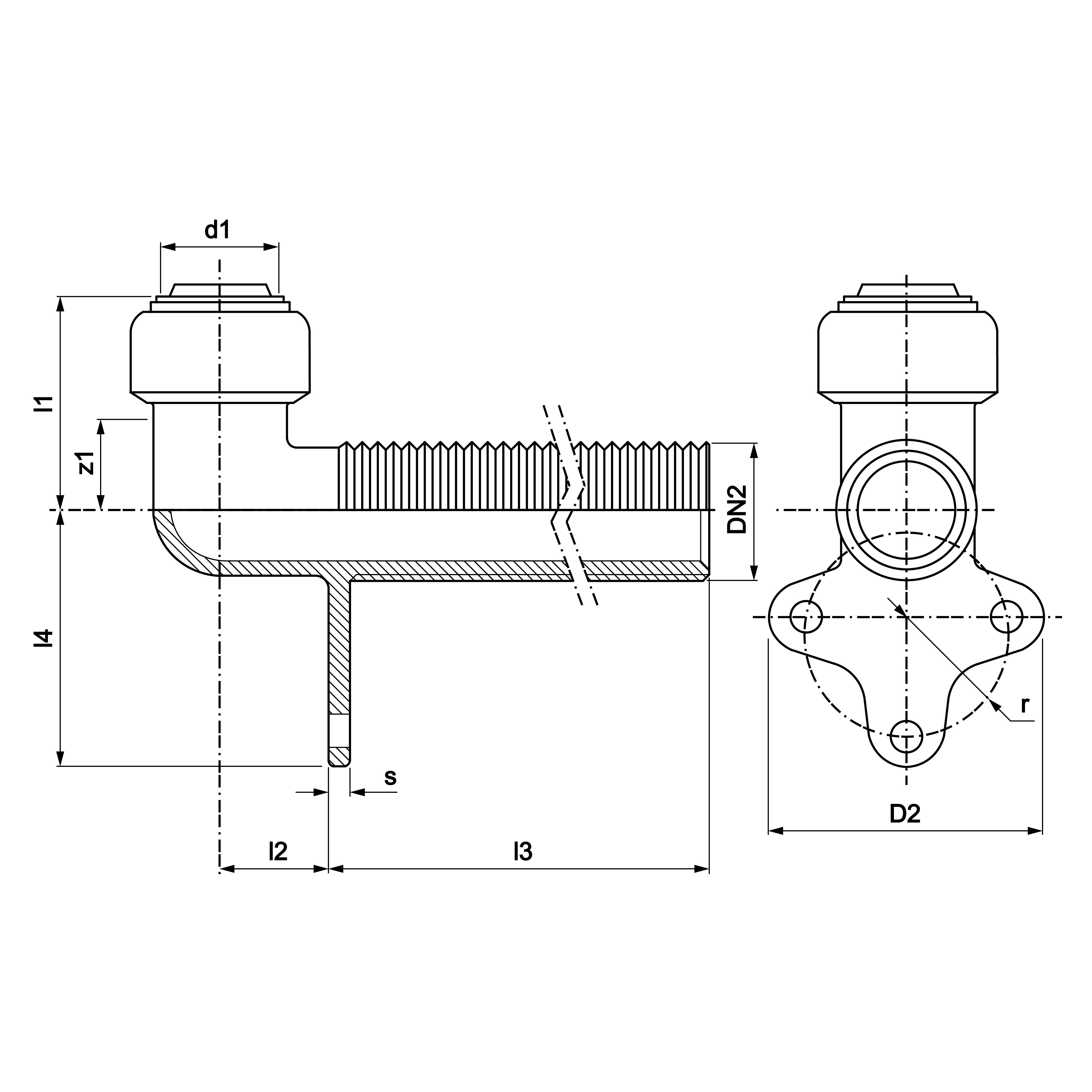

item number
size
d1
DN1
l1
z1
d2
DN2
l2
z2
angle
item number
903219size
16xG1/2
d1
16.0
DN1
DN12
l1
35
z1
12
d2
14.0
DN2
1/2" (DN15)
l2
95
z2
20
angle
90
color
brass
materials
brass (CW602N (DZR))
finishing
none
shape

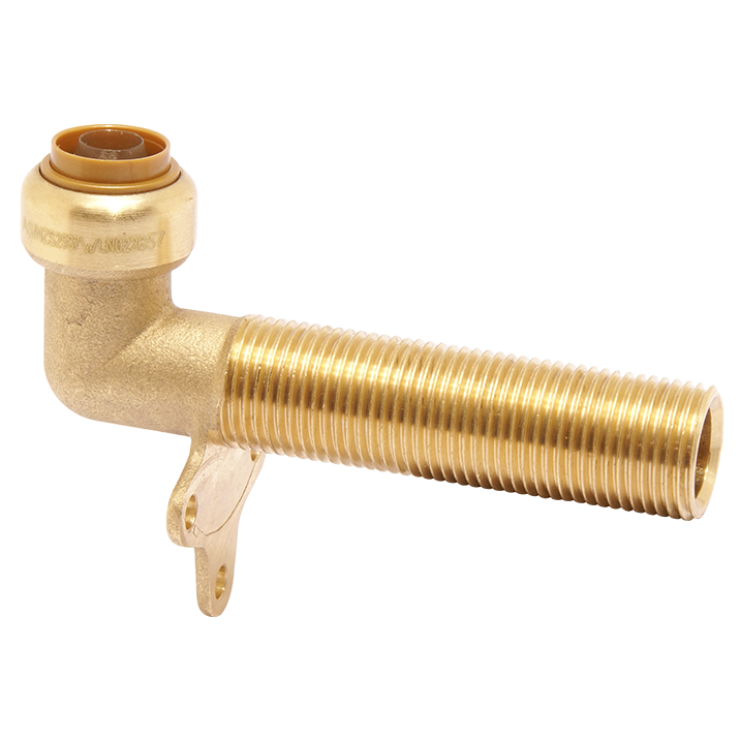

Elbow, Wall plate (90º)
connection type
push, G - male thread gas cylindrical (BSPP)
sealing
EPDM
product group
fittings (demountable)
ETIM class
EC003099 Wall plate
brand
VSH
series
Tectite Pacific
product type
TP15ETPPE
UNSPS
39121704
max operating pressure liquid
20 bar
min. medium temperature
10 °C
max medium temperature
95 °C
peak medium temperature
95 °C
label
value
label
ETIM class
value
label
Housing material
value
Brass
label
Surface protection
value
Untreated
label
System specific
value
No
label
Nominal diameter connection 1
value
DN 12
label
Outer pipe diameter connection 1
value
16mm
label
Outer pipe diameter connection 1 (imperial)
value
0.63"
label
Nominal diameter connection 2
value
1/2 inch (15)
label
Outer pipe diameter connection 2
value
14mm
label
Outer pipe diameter connection 2 (imperial)
value
0.55"
label
Connection
value
Insert (push-fitting)
label
Thread size tap connection
value
1/2 inch
label
Length of connection 1
value
35mm
label
Length of connection 1 (imperial)
value
1.38"
label
Working length connection 1
value
11.5mm
label
Working length connection 1 (imperial)
value
0.45"
label
Wall thickness, connection 1
value
1.2mm
label
Wall thickness, connection 1 (imperial)
value
0.05"
label
Length of connection 2
value
95mm
label
Length of connection 2 (imperial)
value
3.74"
label
Working length connection 2
value
20mm
label
Working length connection 2 (imperial)
value
0.79"
label
Length from wall plate
value
73mm
label
Length from wall plate (imperial)
value
2.87"
label
Medium temperature (continuous)
value
10°C - 95°C
label
Medium temperature (continuous) (imperial)
value
50°F - 203°F
label
Max. operating pressure at 20 °C
value
20bar
label
Max. operating pressure at 20 °C (imperial)
value
290.08psi
label
With connection indicator
value
No
label
With protective cap
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
No
label
KIWA certified
value
No
label
Gastec QA mark
value
No
label
KOMO certified
value
No
label
Gastec QA - AR 214 (H2)
value
No
item number
carbon footprint (A-C) embodied carbon
