VSH Tectite Classic flexible hose (2 x push)

group: TF90

The VSH Tectite Classic TF90 is a flexible connector with two push fit ends. By using VSH Tectite you are using a world class push fitting with unique technology. VSH Tectite provides a piping suitable for domestic and light commercial applications.

  • demountable
  • no heat work required
  • fast insulation
  • provided with all relevant approvals
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

heating

heating

segments

residential

residential

commercial building

commercial building

approvals

DVGW Wasser

DVGW Wasser

ETA

ETA

KIWA

KIWA

RISE

RISE

item number

size

dimensions

weight

packaging

gtin

item number

45983

size

15

dimensions

310x28x28 mm

weight

0.14 kg

packaging

bag (1 pce)

gtin

05022050459831

item number

45984

size

22

dimensions

345x35x35 mm

weight

0.21 kg

packaging

bag (1 pce)

gtin

05022050459855

item number

size

d1

DN1

l1

z1

d2

DN2

l2

item number

45983

size

15

d1

15.0

DN1

DN15

l1

150

z1

0

d2

15.0

DN2

DN15

l2

150

item number

45984

size

22

d1

22.0

DN1

DN20

l1

200

z1

0

d2

22.0

DN2

DN20

l2

200

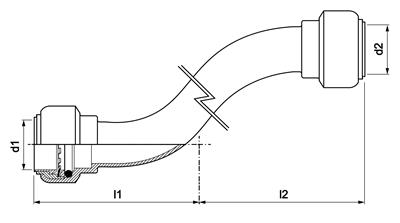

technical drawing for product

characteristics

color

silver

materials

brass, stainless steel (CW602N (DZR))

finishing

none

shape

straight

connection type

push

sealing

EPDM

general

product group

fittings (demountable)

ETIM class

EC011399 Flexible connecting hose (metal)

HS code

74121000

brand

VSH

series

Tectite Classic

product type

TF90

UNSPS

40141734

technical

max operating pressure liquid

16 bar

min. medium temperature

-24 °C

max medium temperature

95 °C

peak medium temperature

95 °C

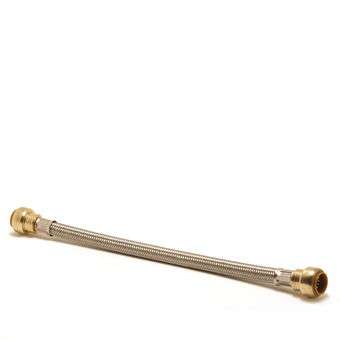

image for TF90

image | png

TF90

image for Diagram

diagram | jpg

Diagram

installation- & maintenance document | pdf

VSH Tectite installation instructions

certifications | pdf

20807_ETA_Tectite_Classic_10-28mm_PEX_23

certifications | pdf

ETA_classic_and_sprint_VA_1.22_19348

certifications | pdf

VSH Tectite Classic & Pro WRAS

label

value

label

Connection 1

value

Insert (push-fitting)

label

Connection 2

value

Insert (push-fitting)

label

Suitable for cooled water

value

Yes

label

Suitable for central heating water

value

Yes

label

Suitable for oil

value

No

label

Max. medium temperature (continuous)

value

95°C

label

Max. medium temperature (continuous) (imperial)

value

203°F

label

With sealing rings/gaskets

value

No

label

Working length

value

0mm

label

Working length (imperial)

value

0"

label

DVGW quality mark for water

value

Yes
