group: T809B
potable water
non-potable water
heating
cooling
commercial building
UK water regulation 4
code
size
dimensions
weight
packaging
gtin
code
size
15xG3/4" (DN20)
dimensions
75x30x52 mm
weight
0.12 kg
packaging
-
gtin
05022050366153

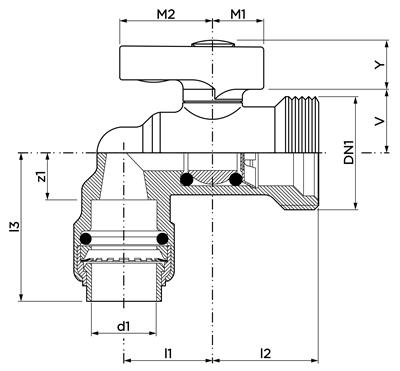

code
size
d1
DN1
l1
z1
DN2
l2
M1
M2
Y

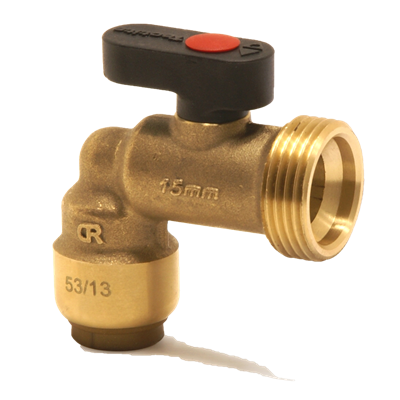

item
bent appliance valve, push fit
item number with gtin
T809B (05022050366153)
manufacturer
Aalberts integrated piping systems Ltd (Pegler)
size
15xG3/4" (DN20)
weight
0.12 kg
dimensions
75x30x52 mm
color
brass
materials
brass (CW626N (DZR))
finishing
none
shape
Elbow
pressure rating (PN)
PN 6
sealing
EPDM
max operating pressure liquid
16 bar
max medium temperature
95 °C
Kvs-value
41
product group
afsluiters (stop valves)
ETIM class
EC011343 Ball valveHS code
84818019
brand
VSH
series
Tectite Ball Valve
product type
T809B
UNSPS
40141607
label
value
label
etim-class
value
EC011343 Ball valvelabel
Housing material
value
Brass
label
Material quality
value
CuZn33Pb1.5AlAs (CW626N)
label
Surface protection housing
value
None
label
Material ball seal
value
Ethylene-propylene diene monomer rubber (EPDM)
label
Material ball
value
Brass
label
Material spindle
value
Brass
label
Material primary spindle seal
value
Ethylene-propylene diene monomer rubber (EPDM)
label
Nominal diameter connection 1
value
DN 15
label
Outer pipe diameter connection 1
value
15mm
label
Outer pipe diameter connection 1 (imperial)
value
0.59"
label
With coupling connection 1
value
Yes
label
Nominal diameter connection 2
value
3/4 inch (20)
label
With coupling connection 2
value
No
label
Sealing
value
Ethylene-propylene diene monomer rubber (EPDM)
label
Article compression class
value
PN 6
label
Flange compression class
value
PN 6
label
With drain valve
value
No
label
With drain possibility (connection)
value
No
label
With non-return valve
value
No
label
With filter
value
No
label
With thermometer
value
No
label
With insulation shell
value
No
label
FM quality mark
value
No
label
UL quality mark
value
No
label
ULC quality mark
value
No
label
LPCB quality mark
value
No
label
Medically clean
value
No
label
Grease-free
value
No
label
Housing construction
value
1-part
label
Full bore
value
Yes
label
Kvs value
value
41
label
Length of connection 1
value
22mm
label
Length of connection 1 (imperial)
value
0.87"
label
Working length connection 1
value
13mm
label
Working length connection 1 (imperial)
value
0.51"
label
Length of connection 2
value
24mm
label
Length of connection 2 (imperial)
value
0.94"
label
Handle height
value
13mm
label
Handle height (imperial)
value
0.51"
label
Handgrip length
value
12mm
label
Handgrip length (imperial)
value
0.47"
label
VdS quality mark
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
No
label
KIWA certified
value
No
label
Type approval according to BBR/EKS
value
No
