VSH Tectite Ball Valve

group: PT550

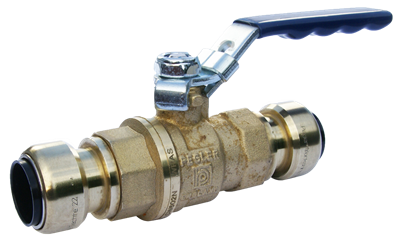

The PT550 is a brass lever handle ball valve with Tectite push fit ends for use with copper, carbon steel and stainless-steel tubing, which is a compact, easy to operate, quarter turn ball valve.

  • PN16
  • full bore
  • blow-out and vandal proof assembly
  • PTFE ball seals
  • lever handle
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

heating

heating

cooling

cooling

steam

steam

compressed air

compressed air

segments

commercial building

commercial building

industry

industry

approvals

NSF

NSF

WRAS

WRAS

item number

size

d1

DN1

l1

z1

slw1

d2

DN2

l2

z2

slw2

M1

M2

H

h1

h2

Y

V

U

a

item number

245240

size

15 (DN15)

d1

15.0

DN1

DN15

l1

58

z1

34

slw1

31

d2

15.0

DN2

DN15

l2

58

z2

34

slw2

31

M1

10

M2

94

H

20

h1

18

h2

18

Y

21

V

20

U

10

a

90

item number

245241

size

18 (DN15)

d1

18.0

DN1

DN15

l1

60

z1

34

slw1

34

d2

18.0

DN2

DN15

l2

60

z2

34

slw2

34

M1

10

M2

103

H

20

h1

h2

18

Y

21

V

20

U

10

a

90

item number

245242

size

22 (DN20)

d1

22.0

DN1

DN20

l1

67

z1

38

slw1

36

d2

22.0

DN2

DN20

l2

67

z2

38

slw2

36

M1

10

M2

103

H

31

h1

18

h2

18

Y

21

V

31

U

11

a

90

item number

245243

size

28 (DN25)

d1

28.0

DN1

DN25

l1

78

z1

44

slw1

42

d2

28.0

DN2

DN25

l2

78

z2

44

slw2

42

M1

10

M2

115

H

35

h1

19

h2

19

Y

22

V

35

U

11

a

90

item number

size

H

h1

h2

Y

V

U

a

15 (DN15)

20

18

18

21

20

10

90

18 (DN15)

20

18

21

20

10

90

22 (DN20)

31

18

18

21

31

11

90

28 (DN25)

35

19

19

22

35

11

90

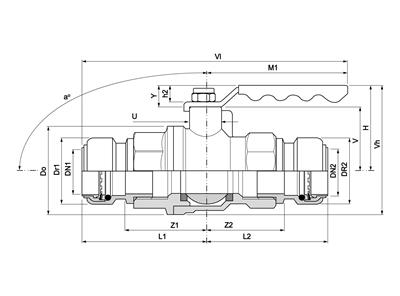

technical drawing for product

characteristics

color

brass

materials

brass (CW602N (DZR))

finishing

none

manufacturer

Aalberts integrated piping systems Ltd (Pegler)

shape

straight (0º)

connection type

push

pressure rating (PN)

PN 6

sealing

FPM, PTFE

general

product group

valves (ball valves)

ETIM class

EC011343 Ball valve

brand

VSH

series

Tectite Ball Valve

product type

PT550

UNSPS

40141607

label

value

label

ETIM class

label

Housing material

value

Brass

label

Material quality

value

CuZn36Pb2As (CW602N)

label

Surface protection housing

value

None

label

Material ball seal

value

Polytetrafluoroethylene (PTFE)

label

Material ball

value

Brass

label

Material spindle

value

Brass

label

Material primary spindle seal

value

Fluorelastomer rubber (FPM/FKM)

label

Connection 1

value

Insert (push-fitting)

label

With coupling connection 1

value

Yes

label

Connection 2

value

Insert (push-fitting)

label

With coupling connection 2

value

Yes

label

Article compression class

value

PN 6

label

Flange compression class

value

PN 6

label

With drain valve

value

No

label

With drain possibility (connection)

value

No

label

With non-return valve

value

No

label

With filter

value

No

label

With thermometer

value

No

label

Model

value

Straight

label

With insulation shell

value

No

label

FM quality mark

value

No

label

UL quality mark

value

No

label

ULC quality mark

value

No

label

LPCB quality mark

value

No

label

Medium temperature (continuous)

value

-10°C - 95°C

label

Medium temperature (continuous) (imperial)

value

14°F - 203°F

label

Medically clean

value

No

label

Grease-free

value

No

label

Operation

value

Lever handle

label

Housing construction

value

1-part

label

Full bore

value

Yes

label

Handgrip length

value

10mm

label

Handgrip length (imperial)

value

0.39"

label

Angle of the valve

value

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

KIWA certified

value

No

label

Type approval according to BBR/EKS

value

No
