group: PSU1060A
Pressure rated up to PN16
heating
cooling
potable water
steam
compressed air
industry
shipbuilding
commercial building
NSF
code
size
dimensions
weight
packaging
gtin
code
size
15 (DN15)
dimensions
30x144x65 mm
weight
0.56 kg
packaging
bag (1 pce)
gtin
05022050188847
code
size
22 (DN20)
dimensions
40x161x80 mm
weight
0.84 kg
packaging
bag (1 pce)
gtin
05022050188984
code
size
28 (DN25)
dimensions
50x170x90 mm
weight
1.21 kg
packaging
bag (1 pce)
gtin
05022050189028
code
size
35 (DN32)
dimensions
60x182x110 mm
weight
1.74 kg
packaging
bag (1 pce)
gtin
05022050221520
code
size
42 (DN40)
dimensions
82x201x116 mm
weight
2.17 kg
packaging
box (1 pce)
gtin
05022050189103
code
size
54 (DN50)
dimensions
100x315x135 mm
weight
3.5 kg
packaging
box (1 pce)
gtin
05022050189141
code
size
d1
DN1
l1
z1
slw1
d2
DN2
l2
z2
slw2
V
U
a
code
size
15 (DN15)
d1
15.0
DN1
DN15
l1
77
z1
54
slw1
30
d2
15.0
DN2
DN15
l2
54
z2
36
slw2
30
V
45
U
32
a
90
code
size
22 (DN20)
d1
22.0
DN1
DN20
l1
93
z1
69
slw1
40
d2
22.0
DN2
DN20
l2
62
z2
43
slw2
40
V
55
U
41
a
90
code
size
28 (DN25)
d1
28.0
DN1
DN25
l1
97
z1
71
slw1
48
d2
28.0
DN2
DN25
l2
68
z2
47
slw2
48
V
60
U
48
a
90
code
size
35 (DN32)
d1
35.0
DN1
DN32
l1
102
z1
73
slw1
57
d2
35.0
DN2
DN32
l2
76
z2
52
slw2
57
V
65
U
58
a
90
code
size
42 (DN40)
d1
42.0
DN1
DN40
l1
115
z1
83
slw1
67
d2
42.0
DN2
DN40
l2
85
z2
58
slw2
67
V
75
U
67
a
90
code
size
54 (DN50)
d1
54.0
DN1
DN50
l1
134
z1
97
slw1
83
d2
54.0
DN2
DN50
l2
100
z2
68
slw2
83
V
90
U
82
a
90
item

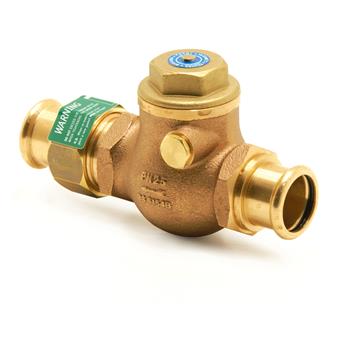

VSH XPress Check Valve With Union Connection
item number with gtin
PSU1060A
manufacturer
Aalberts integrated piping systems Ltd (Pegler)
weight
3.5 kg
dimensions
100x315x135 mm
color
bronze
materials
bronze (EN CC499K)
finishing
none
shape
straight
connection type
press (M)
pressure rating (PN)
PN 16
sealing
Metal sealing
max operating pressure liquid
16 bar
min. medium temperature
-10 °C
max medium temperature
110 °C
peak medium temperature
110 °C
product group
afsluiters (check valves)
ETIM class
EC011469 Check valvebrand
VSH
series
XPress Check Valve
product type
PSU1060A
UNSPS
40141634
label
value
label
etim-class
value
EC011469 Check valvelabel
Housing material
value
Bronze
label
Material quality
value
Bronze (Rg 5)
label
Surface protection
value
Untreated
label
Connections
value
Press sleeve
label
Contour code
value
M
label
Article compression class
value
PN 16
label
Flange compression class
value
PN 16
label
Angle of non-return valve
value
label
Medium temperature (continuous)
value
-10°C - 110°C
label
Medium temperature (continuous) (imperial)
value
14°F - 230°F
label
Max. operating pressure at 20 °C
value
16bar
label
Max. operating pressure at 20 °C (imperial)
value
232.06psi
label
FM quality mark
value
No
label
UL quality mark
value
No
label
ULC quality mark
value
No
label
LPCB quality mark
value
No
label
Suitable for central heating water
value
Yes
label
Certified according to SVGW for water
value
No
label
Certified according to SVGW for gas
value
No
label
VdS quality mark
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
No
label
KIWA certified
value
No
code
