group: N1W

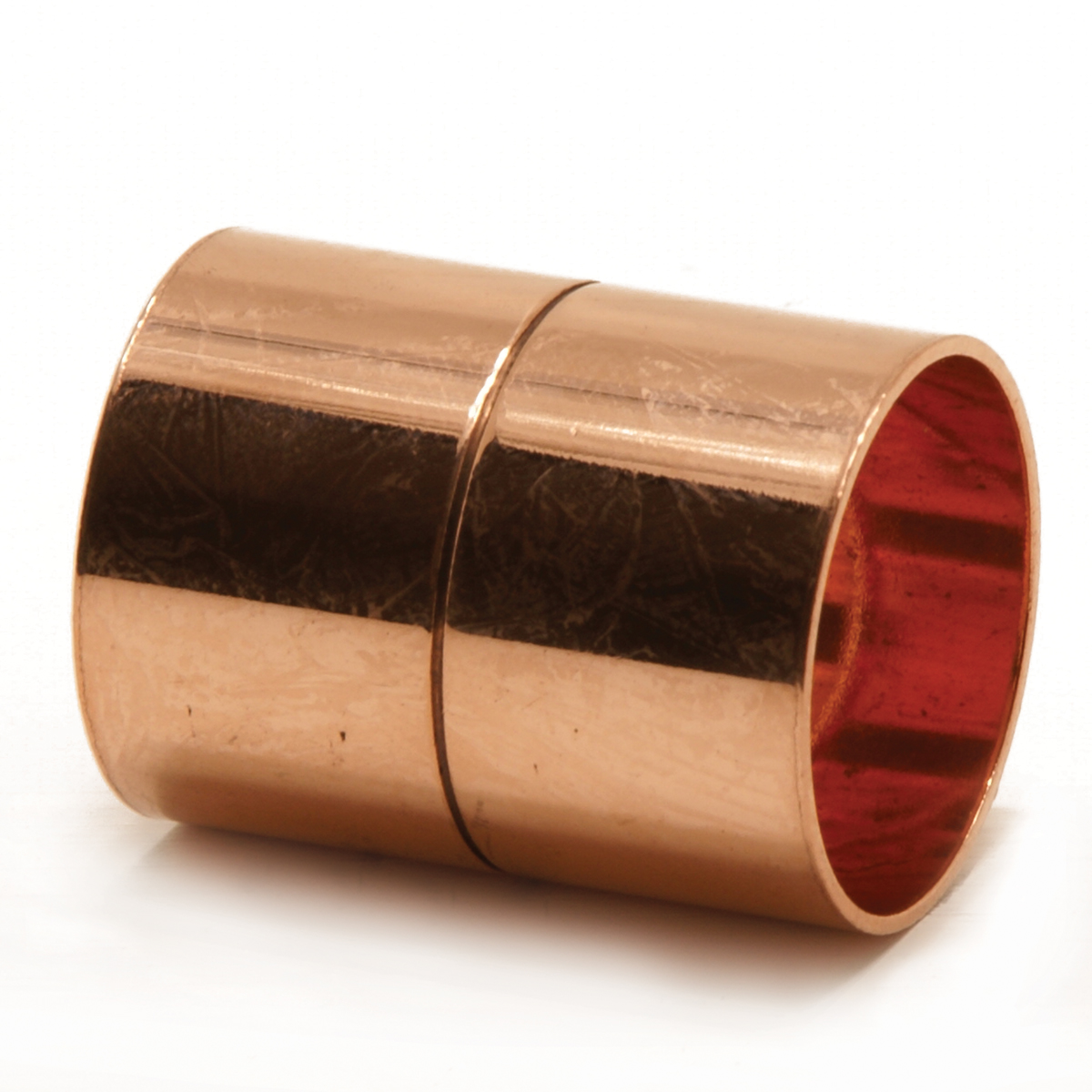

The Endex N1W is a straight coupling with 2 end feed ends. By using Endex in your piping installation you are using a simple and cost-effective method. Design for use in domestic and commercial waste systems.
potable water
natural gas
heating
cooling
compressed air
commercial building
industry
CSN
DVGW Gas
DVGW Wasser
KIWA
WRAS
item number
size
weight
dimensions
packaging
gtin
item number
size
35
weight
0.06 kg
dimensions
38x38x50 mm
packaging
bag (1 pce)
gtin
05022050897411
item number
size
42
weight
0.05 kg
dimensions
32x45x45 mm
packaging
bag (1 pce)
gtin
05022050897428
item number
size
54
weight
0.08 kg
dimensions
35x57x57 mm
packaging
bag (1 pce)
gtin
05022050897435

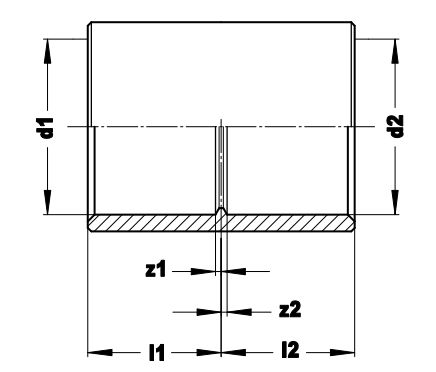

item number
size
d1
l1
z1
d2
l2
z2
item number
89741
size
35
d1
35.0
l1
24
z1
1
d2
35.0
l2
24
z2
1
item number
89742
size
42
d1
42.0
l1
28
z1
1
d2
42.0
l2
28
z2
1
item number
89743
size
54
d1
54.0
l1
33
z1
1
d2
54.0
l2
33
z2
1
color
copper
materials
copper (CW024A (UNS C12200))
finishing
none
manufacturer
Aalberts integrated piping systems Ltd (Pegler)
shape
straight
connection type
solder
sealing
Metal sealing
product group
fittings (demountable)
ETIM class
EC003024 Fitting with 2 connections
HS code
74121000
brand
Pegler
series
Endex
product type
N1
UNSPS
40172612
label
value
label
ETIM class
label
Material connection 1
value
Copper
label
Surface protection connection 1
value
Untreated
label
Surface treatment connection 1
value
Untreated
label
Material connection 2
value
Copper
label
Surface protection connection 2
value
Untreated
label
Surface treatment connection 2
value
Untreated
label
Shape
value
Straight
label
Model
value
1-part
label
Reducing
value
No
label
Eccentric
value
No
label
System specific
value
Yes
label
Connection 1
value
Soldered sleeve
label
Connection 2
value
Soldered sleeve
label
Main colour fitting
value
Copper
label
Flange compression class (PN)
value
PN 16
label
Material sealing
value
Metal-sealing
label
With buffer stud
value
No
label
Medium temperature (continuous)
value
-40°C - 65°C
label
Medium temperature (continuous) (imperial)
value
-40°F - 149°F
label
Max. operating pressure at 20 °C
value
16bar
label
Max. operating pressure at 20 °C (imperial)
value
232.06psi
label
With thermal insulation
value
No
label
With sealing rings/gaskets
value
No
label
Capped
value
No
label
With drain valve
value
No
label
With de-aerator
value
No
label
FM quality mark
value
No
label
LPCB quality mark
value
No
label
ULC quality mark
value
No
label
UL quality mark
value
No
label
VdS quality mark
value
No
label
DVGW quality mark for gas
value
Yes
label
DVGW quality mark for water
value
Yes
label
Certified according to NF 545
value
No
label
KIWA certified
value
Yes
label
Gastec QA mark
value
No
label
KOMO certified
value
No
label
Gastec QA - AR 214 (H2)
value
No
