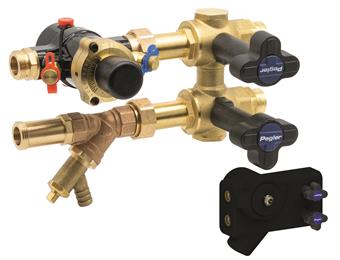

Proflow MVS65 1600

group: MVS65 1600

The Pegler Proflow MVS65 1600 (modular valve solutions) valves are a range of prefabricated assemblies that have been designed to control and maintain Fan Coil Units or other terminal units.

  • Including strainer
  • Toggle between bypass & dynamic functions
  • Complete with locking pin for anti-tamper
  • Including insulation
  • Flow-control with a hysteresis of 5.0% to 7.7%
  • Built-in “fast-flush” full-bore integrated flushing bypass
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

heating

heating

cooling

cooling

segments

commercial building

commercial building

industry

industry

approvals

no approvals available

item number

size

DN1

l1

DN2

l2

item number

18630

size

DN 15 LF

DN1

DN15

l1

35

DN2

DN15

l2

206

item number

18631

size

DN 15 SF

DN1

DN15

l1

35

DN2

DN15

l2

206

item number

18632

size

DN 15 HF

DN1

DN15

l1

26

DN2

DN15

l2

206

item number

18633

size

DN 20 SF

DN1

3/4" (DN20)

l1

26

DN2

3/4" (DN20)

l2

206

item number

18634

size

DN 20 HF

DN1

3/4" (DN20)

l1

26

DN2

3/4" (DN20)

l2

206

item number

18635

size

DN 25 SF

DN1

DN25

l1

26

DN2

DN25

l2

206

technical drawing for product

characteristics

color

brass, black

materials

brass (CW511L (lead-free), CW602N (DZR), CW614N, CW617N)

finishing

none

manufacturer

Aalberts integrated piping systems Ltd (Pegler)

shape

straight (0º)

connection type

G - male thread gas cylindrical (BSPP)

pressure rating (PN)

PN 16

sealing

EPDM, PTFE

general

product group

valves (dynamic balancing valves)

ETIM class

EC011312 Pressure-compensated control valve

brand

Pegler

series

ProFlow MVS

product type

MVS65 1600

UNSPS

40141652

label

value

label

Connections

value

External thread cylindrical BSPP-G (ISO 228-1)

label

Article compression class

value

PN 16

label

Medium temperature (continuous)

value

-10°C - 90°C

label

Medium temperature (continuous) (imperial)

value

14°F - 194°F

label

Length

value

0mm

label

Height

value

0mm
