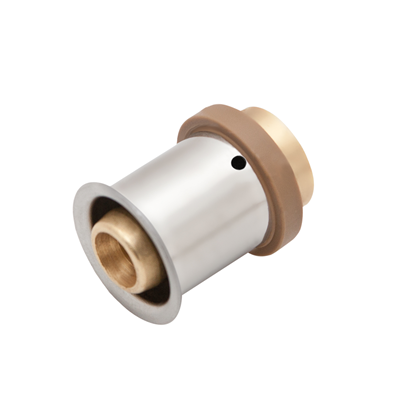

VSH MultiPress end cap (1 x press)

group: K7229

The VSH Multipress K7229 is an end cap with a press end. With VSH MultiPress, Aalberts integrated piping systems provides in a reliable and high-quality plastic tube system. VSH Multipress is the ideal plastic tube system due to its handy features.

  • Pressable with both U- and TH-profile
  • Color coding per size
  • Optimal positioning of the press jaw for fast and secure pressing
  • Leak Before Pressed function up to 32 mm
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

heating

heating

cooling

cooling

compressed air

compressed air

segments

residential

residential

commercial building

commercial building

approvals

ACS

ACS

DVGW Wasser

DVGW Wasser

KIWA

KIWA

KOMO

KOMO

QB (CSTBat)

QB (CSTBat)

VA (ETA)

VA (ETA)

WRAS

WRAS

item number

size

d1

DN1

l1

z1

item number

3823710

size

16

d1

16.0

DN1

DN12

l1

29

z1

6

item number

3823721

size

20

d1

20.0

DN1

DN15

l1

29

z1

6

item number

3823732

size

25

d1

25.0

DN1

DN20

l1

39

z1

7

item number

3823743

size

32

d1

32.0

DN1

DN25

l1

40

z1

7

technical drawing for product

characteristics

color

brass

materials

brass (CW617N)

finishing

none

manufacturer

Aalberts integrated piping systems B.V. (VSH)

shape

End coupling

connection type

press (U, TH/U)

sealing

EPDM

general

product group

fittings

ETIM class

EC003023 Fitting with 1 connection

brand

VSH

series

MultiPress

product type

K7229

scip

e83ea394-2a3f-4a9f-92a4-760b0a4b74f8

label

value

label

Material connection 1

value

Brass

label

Material quality connection 1

value

CuZn40Pb2 (CW617N)

label

Surface protection connection 1

value

Untreated

label

Surface treatment connection 1

value

Untreated

label

System specific

value

Yes

label

Connection 1

value

Press sleeve

label

Max. operating pressure at 20 °C

value

10bar

label

Max. operating pressure at 20 °C (imperial)

value

145.04psi

label

Material sealing

value

Ethylene-propylene diene monomer rubber (EPDM)

label

Main colour fitting

value

Brass

label

Medium temperature (continuous)

value

-20°C - 70°C

label

Medium temperature (continuous) (imperial)

value

-4°F - 158°F

label

With sealing rings/gaskets

value

No

label

With drain valve

value

No

label

With de-aerator

value

No

label

Capped

value

No

label

With connection indicator

value

Yes

label

FM quality mark

value

No

label

UL quality mark

value

No

label

ULC quality mark

value

No

label

LPCB quality mark

value

No

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

Yes

label

KIWA certified

value

Yes

label

Gastec QA mark

value

No

label

KOMO certified

value

Yes

label

Gastec QA - AR 214 (H2)

value

No
