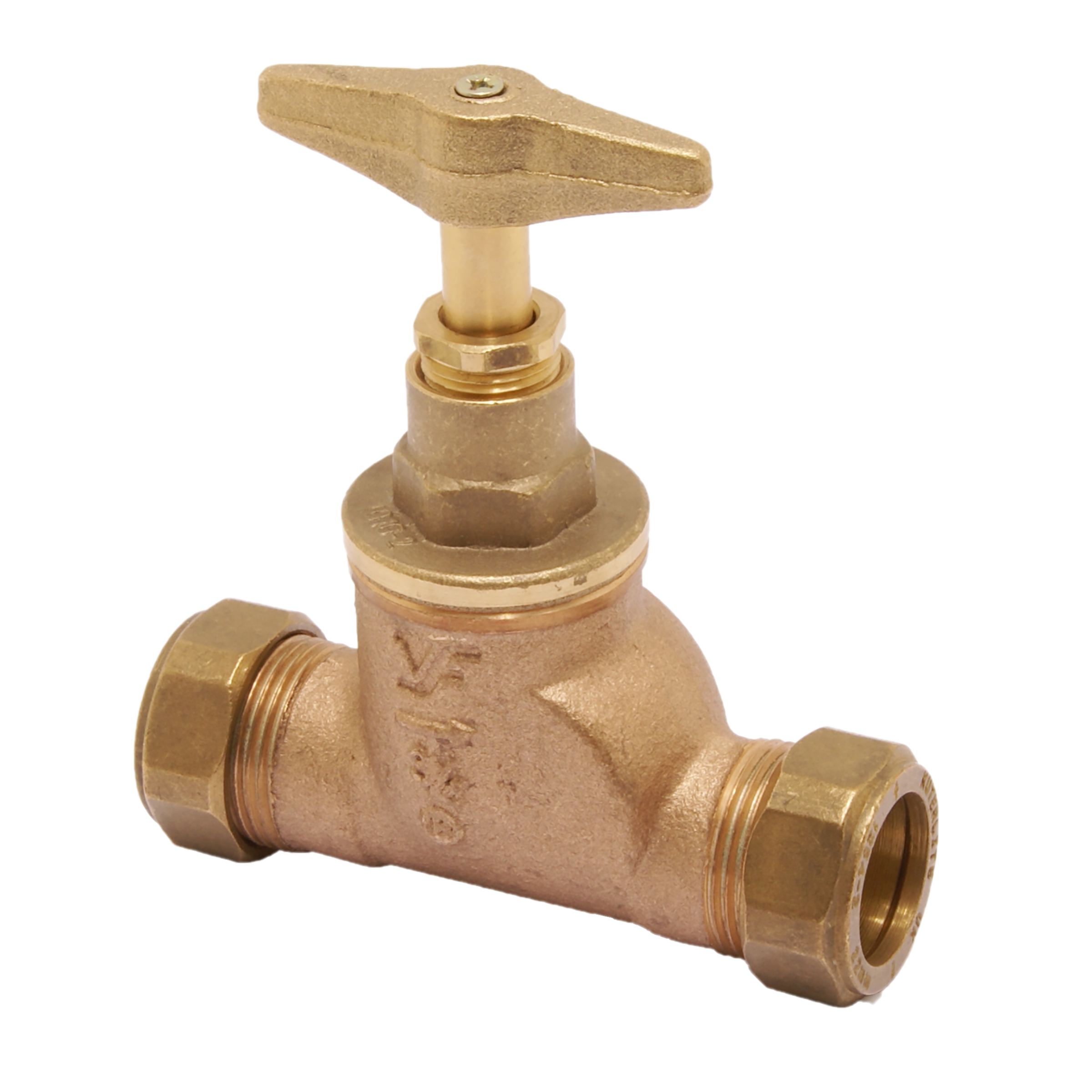

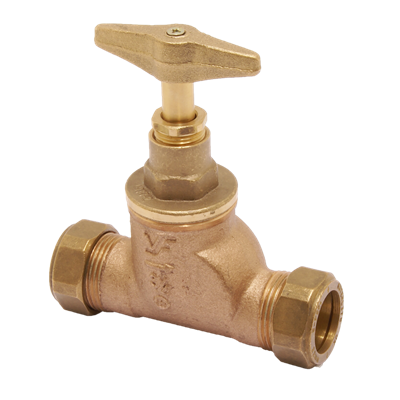

Kuterlite Gun Metal Stop valve

group: K551GM

The Kuterlite K551GM is a gunmetal stop valve with 2 copper compression ends. By using Kuterlite in your piping system you can install in easy to use heat free system. Kuterlite provides a piping system suitable for broad spectrum of applications across the domestic and commercial sectors,

  • No need for use of naked flames
  • Can be used on wet pipework
  • Joints can be dismounted without adversely affecting performance
  • Provided with all relevant approvals
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

segments

building installations

building installations

approvals

no approvals available

item number

size

d1

DN1

l1

z1

d2

DN2

l2

z2

M1

M2

Y

V

U

a

item number

69581

size

35

d1

35.0

DN1

DN32

l1

75

z1

48

d2

35.0

DN2

DN32

l2

75

z2

48

M1

38

M2

38

Y

18

V

122

U

63

a

90

item number

69582

size

42

d1

42.0

DN1

DN40

l1

86

z1

56

d2

42.0

DN2

DN40

l2

86

z2

56

M1

42

M2

42

Y

29

V

131

U

73

a

90

item number

69583

size

54

d1

54.0

DN1

DN50

l1

108

z1

73

d2

54.0

DN2

DN50

l2

108

z2

73

M1

48

M2

48

Y

20

V

152

U

91

a

90

item number

size

U

a

35

63

90

42

73

90

54

91

90

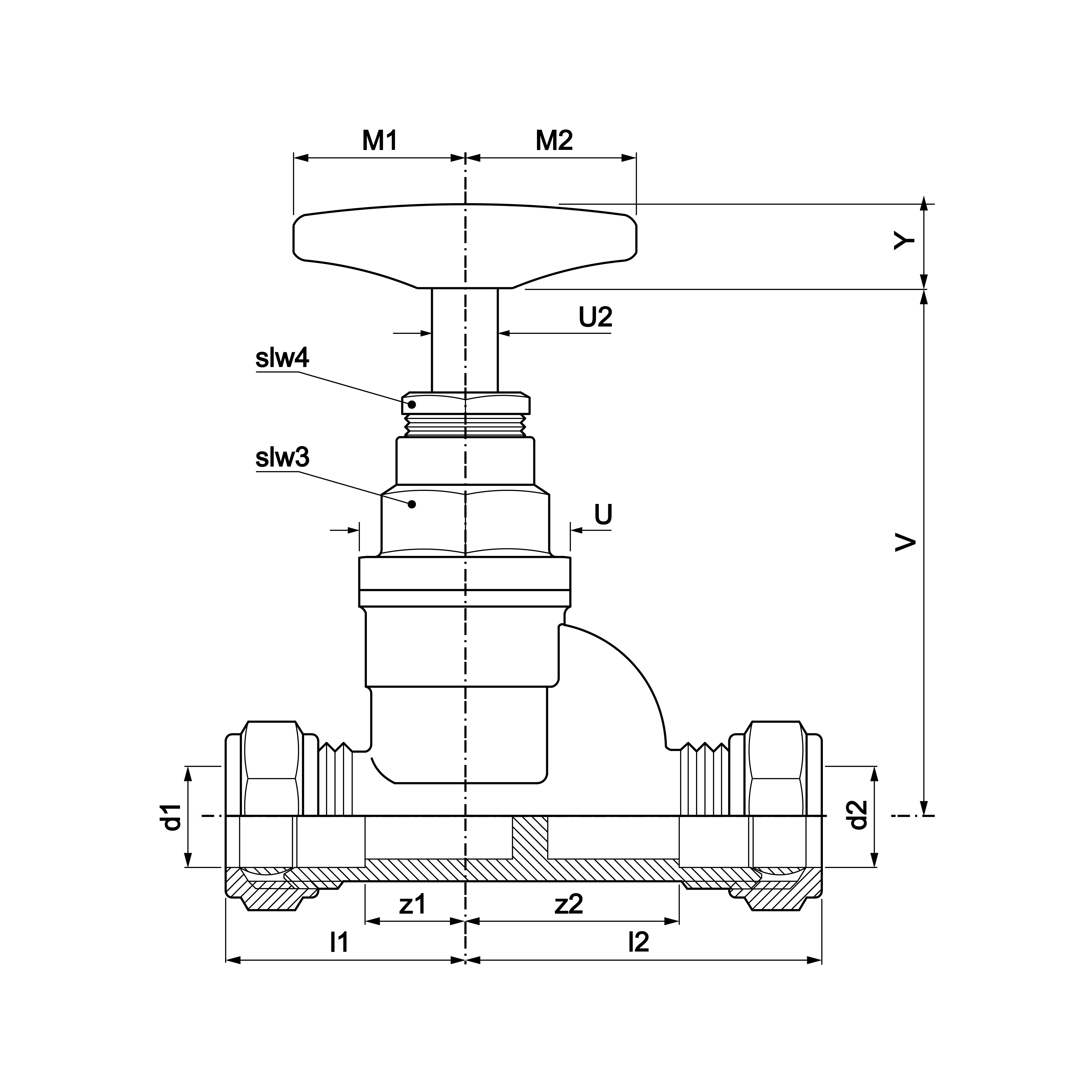

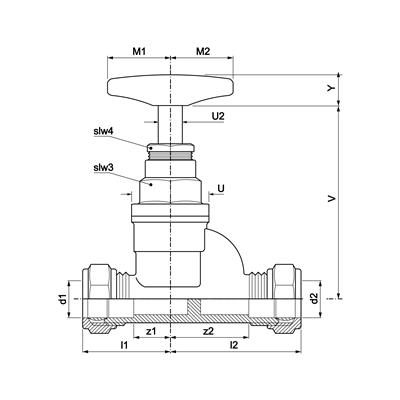

technical drawing for product

characteristics

color

bronze

materials

bronze (EN CC499K)

finishing

none

manufacturer

Aalberts integrated piping systems Ltd (Pegler)

shape

straight (0º)

connection type

compression

pressure rating (PN)

PN 16

sealing

EPDM

general

product group

valves

HS code

84818019

brand

VSH

series

Kuterlite Stop Valve

product type

K551GM

UNSPS

40141613
