group: A76AR
The A76AR Stainless Steel, 2-Piece Full Port Ball Valve with DIN-plate is a versatile and reliable solution designed to withstand challenging environments. Its 2-piece construction ensures durability, while the full port section optimize fluid flow. With features such as pressure balanced solid ball, compression controlled spiral wound gaskets, and anti-blowout, one piece bottom entry stem, this valve offers enhanced safety and performance. The universal DIN-plate alows connection to multiple actuators
heating
cooling
commercial building
industry
datacenters
no approvals available
item number
size
dimensions
weight
packaging
gtin
item number
size
Rp1/2" (DN15)
dimensions
136x51x102 mm
weight
0.82 kg
packaging
bag (1 pce)
gtin
05022050738660
item number
size
Rp3/4" (DN20)
dimensions
163x61x117 mm
weight
1.1 kg
packaging
bag (1 pce)
gtin
05022050738677
item number
size
Rp1" (DN25)
dimensions
187x68x156 mm
weight
1.84 kg
packaging
bag (1 pce)
gtin
05022050738684
item number
size
Rp1 1/4" (DN32)
dimensions
193x98x168 mm
weight
2.66 kg
packaging
bag (1 pce)
gtin
05022050738691
item number
size
Rp1 1/2" (DN40)
dimensions
242x98x168 mm
weight
3.66 kg
packaging
bag (1 pce)
gtin
05022050738707
item number
size
Rp2" (DN50)
dimensions
250x116x201 mm
weight
5.16 kg
packaging
bag (1 pce)
gtin
05022050735058
item number
size
NPT1/2" (DN15)
dimensions
136x51x102 mm
weight
0.82 kg
packaging
bag (1 pce)
gtin
05022050738646
item number
size
NPT3/4" (DN20)
dimensions
163x61x117 mm
weight
1.1 kg
packaging
bag (1 pce)
gtin
05022050738653
item number
size
NPT1" (DN25)
dimensions
187x68x156 mm
weight
1.84 kg
packaging
bag (1 pce)
gtin
05022050738714
item number
size
NPT1 1/4" (DN32)
dimensions
193x98x168 mm
weight
2.66 kg
packaging
bag (1 pce)
gtin
05022050738721
item number
size
NPT1 1/2" (DN40)
dimensions
242x98x168 mm
weight
3.66 kg
packaging
bag (1 pce)
gtin
05022050738738
item number
size
NPT2" (DN50)
dimensions
250x116x201 mm
weight
5.16 kg
packaging
bag (1 pce)
gtin
05022050735096

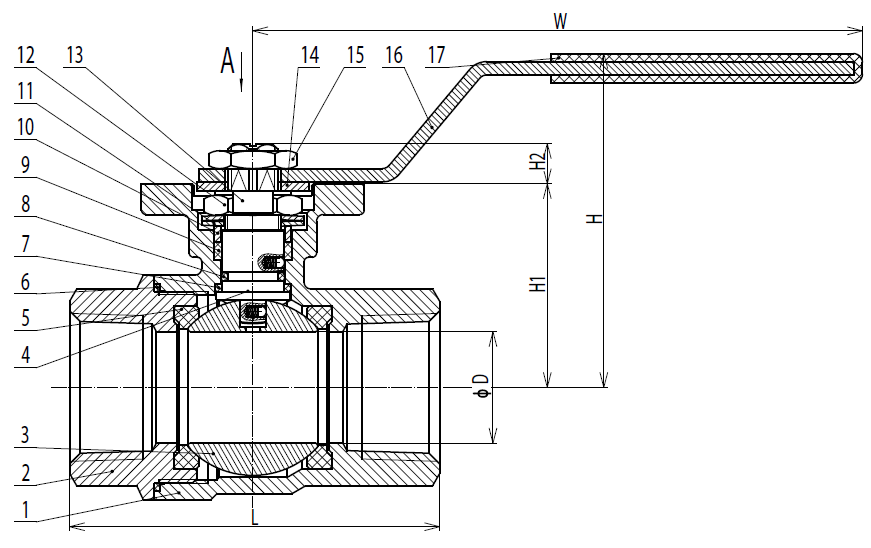

item number
size
d1
DN1
l1
d2
DN2
l2
M2
H
h1
h2
D1
item number
size
Rp1/2" (DN15)
d1
21.3
DN1
DN15
l1
32
d2
21.3
DN2
DN15
l2
32
M2
141
H
75
h1
42
h2
9
D1
21
item number
size
Rp3/4" (DN20)
d1
26.9
DN1
DN20
l1
37
d2
26.9
DN2
DN20
l2
37
M2
141
H
75
h1
42
h2
9
D1
27
item number
size
Rp1" (DN25)
d1
33.7
DN1
DN25
l1
43
d2
33.7
DN2
DN25
l2
43
M2
162
H
75
h1
42
h2
9
D1
34
item number
size
Rp1 1/4" (DN32)
d1
42.4
DN1
DN32
l1
49
d2
42.4
DN2
DN32
l2
49
M2
162
H
75
h1
42
h2
9
D1
42
item number
size
Rp1 1/2" (DN40)
d1
48.3
DN1
DN40
l1
53
d2
48.3
DN2
DN40
l2
53
M2
188
H
75
h1
42
h2
9
D1
48
item number
size
Rp2" (DN50)
d1
60.3
DN1
DN50
l1
61
d2
60.3
DN2
DN50
l2
61
M2
188
H
75
h1
42
h2
9
D1
60
item number
size
NPT1/2" (DN15)
d1
21.3
DN1
DN15
l1
32
d2
21.3
DN2
DN15
l2
32
M2
141
H
75
h1
42
h2
9
D1
21
item number
size
NPT3/4" (DN20)
d1
26.9
DN1
DN20
l1
37
d2
26.9
DN2
DN20
l2
37
M2
141
H
75
h1
42
h2
9
D1
27
item number
size
NPT1" (DN25)
d1
33.7
DN1
DN25
l1
43
d2
33.7
DN2
DN25
l2
43
M2
162
H
75
h1
42
h2
9
D1
34
item number
size
NPT1 1/4" (DN32)
d1
42.4
DN1
DN32
l1
49
d2
42.4
DN2
DN32
l2
49
M2
162
H
75
h1
42
h2
9
D1
42
item number
size
NPT1 1/2" (DN40)
d1
48.3
DN1
DN40
l1
53
d2
48.3
DN2
DN40
l2
53
M2
188
H
75
h1
42
h2
9
D1
48
item number
size
NPT2" (DN50)
d1
60.3
DN1
DN50
l1
61
d2
60.3
DN2
DN50
l2
61
M2
188
H
75
h1
42
h2
9
D1
60
item
Pegler 2-piece ball valve Stainless Steel WITH DIN-plate (2 x BSPT)
item number with gtin
A76AR
manufacturer
Aalberts integrated piping systems Ltd (Pegler)
weight
5.16 kg
dimensions
250x116x201 mm
color
stainless steel
materials
stainless steel (CF8 (1.4308))
finishing
none
shape
straight
pressure rating (PN)
PN 63
sealing
PTFE
max operating pressure liquid
63 bar
min. medium temperature
-29 °C
max medium temperature
204 °C
product group
valves (ball valves)
ETIM class
EC011343 Ball valvebrand
Pegler
series
Ball Valve
product type
A76AR
UNSPS
40141607
label
value
label
etim-class
value
EC011343 Ball valvelabel
Housing material
value
Stainless steel
label
Surface protection housing
value
None
label
Material ball seal
value
Polytetrafluoroethylene (PTFE)
label
Material ball
value
Stainless steel
label
Material spindle
value
Stainless steel
label
Material primary spindle seal
value
Polytetrafluoroethylene (PTFE)
label
Outer pipe diameter connection 1 (imperial)
value
0.84"
label
With coupling connection 1
value
No
label
Outer pipe diameter connection 2 (imperial)
value
0.84"
label
With coupling connection 2
value
No
label
Sealing
value
Polytetrafluoroethylene (PTFE)
label
Article pressure rating
value
PN 63
label
Flange pressure rating
value
PN 63
label
With drain valve
value
No
label
With drain possibility (connection)
value
No
label
With non-return valve
value
No
label
With filter
value
No
label
With thermometer
value
No
label
Model
value
Straight
label
With direct mount top flange according to ISO 5211
value
Yes
label
With insulation shell
value
No
label
UL quality mark
value
No
label
ULC quality mark
value
No
label
FM quality mark
value
No
label
LPCB quality mark
value
No
label
Medium temperature (continuous)
value
-29°C - 204°C
label
Medium temperature (continuous) (imperial)
value
-20.2°F - 399.2°F
label
Medically clean
value
No
label
Grease-free
value
No
label
Operation
value
Lever handle
label
Housing construction
value
3-part
label
Full bore
value
Yes
label
Length of connection 1 (imperial)
value
1.32"
label
Angle of the valve
value
label
VdS quality mark
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
No
label
KIWA certified
value
No
